Schneider Electric NSYAPU19S8S

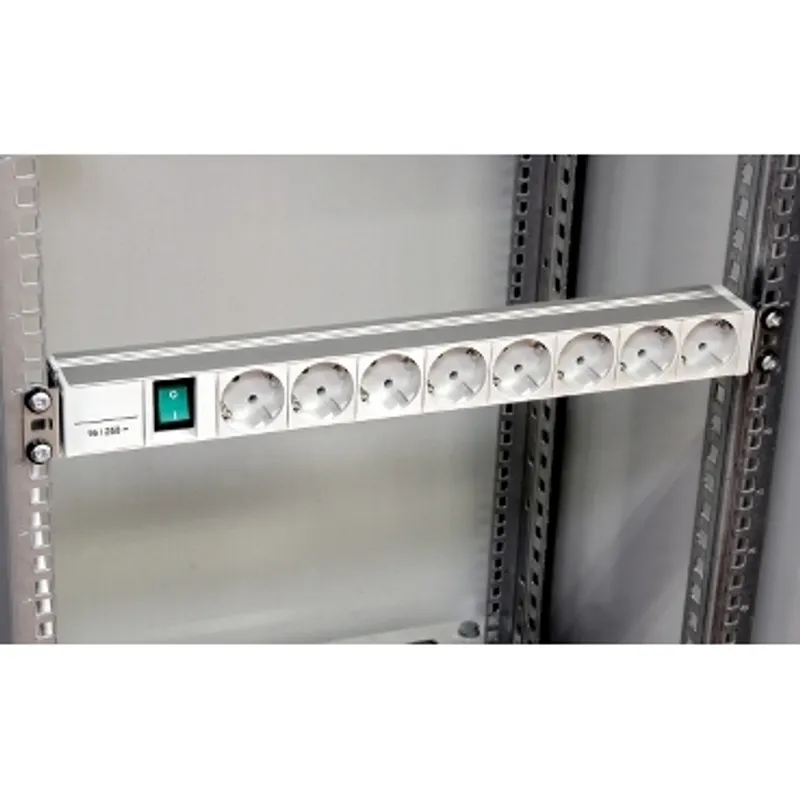

Actassi - 1U power distribution rail - 8 sockets+switch 19P VDE
- MPN
- NSYAPU19S8S
- EAN
- 3606480171949
- Category
- Actassi OPB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAPU19S8S?
8 sockets outlets with recessed green led switch equippped with power cords type H05 VVF, equipped with a mould right angle plug with earthing contact system. Vertical sockets strip with side-earthed outlets, with child protection. Material composed by fibreglass polyamide plastic with fire resistance to 850°C Could be used in: Germany, Austria, Netherlands, Italy (partial), Spain, Portugal, Sweden, Norway, Finland, Slovenia, Romania, Hungary, Andorra, Vatican City, San Marino, Estonia, Bulgaria. Can be used outside Europe in: Afghanistan, South Korea, Indonesia, Iceland, Chile
Specifications
Specifications
| Range | Actassi |
| Product or component type | Power distribution rail |
| Device application | Multi-purpose |
| Outlet standard description | Side earth |
| Accessory / separate part category | Current distribution accessory |
| Outlet poles configuration | 2P + E with shutters |
| Quantity per set | Set of 1 |
| Colour | Aluminium |
| Device composition | 1 power rail, fixing elements |
| Ground lug position | 35° ground lug |
| Socket number | 8 |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 230 V AC |
| Control type | Green LED switch |
| Mounting support | Upright, 19" rack |
| fixing mode | By brackets, Direct fixing |
| Material | Polyamide 6 with 30 % fibre glass |
| Surface finish | Anodized |
| Electrical connection | 3 m power cord 3 x 1.5 mm² H05VV-F3G1.5 |
| Number of rack unit | 1U |
| Height | 44.45 mm |
| Width | Total: 482.6 mm, Body: 440 mm |
| Depth | 76 mm |
| fire resistance | 850 °C |
| Quality labels | VDE |
| Standards | IEC 60884, UNE 20315, DIN 49440, VDE 0620-1 |
Packaging
| Package 1 | 1 PCE, 52.000 cm × 9.000 cm × 7.500 cm (L × W × H), 1.035 kg |
| Package 2 | 240 PAM, 120.000 cm × 100.000 cm × 120.000 cm (L × W × H), 262.000 kg |
