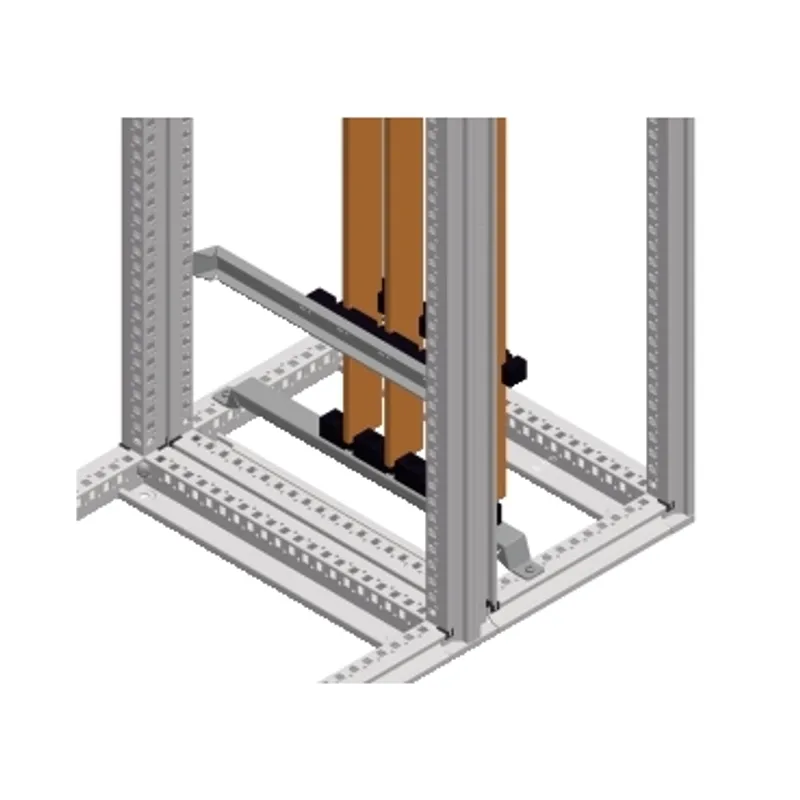

Schneider Electric NSYAS800L
Lower sup. Ver. Busbars In 3200A 10mm bars. Bar distance 115mm. For 800mm witdhs
- MPN
- NSYAS800L
- EAN
- 3606480211478
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAS800L?
"This is a bottom support for bars in vertical position. PrismaSeT, PanelSeT and PanelSeT electrical enclosures." "The bar support fixing centers width is 750mm and nominal width is 800mm. The height is 66mm. The depth is 39mm. Busbar distance is 115mm." The kit is made up of plastic bar support and steel metal support. Suitable for installation on bottom of enclosure. The kit contains fixing elements, 1 insulating bar support and 1 metal support. Supports connection to Linergy LGYE lateral busbar and Linergy BS lateral busbar. "This product is qualified as a green premium, with minimal use of hazardous substances."
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Support accessory |
| Product or component type | Bar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | - |
| Mounting location | Bottom |
| Busbar position | Vertical |
| Range compatibility | Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar, Linergy BS lateral busbar |
| Device composition | Fixing elements, 1 insulating bar support, 1 metal support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element - bottom frame of enclosure location |
| Height | 66 mm |
| Width | Fixing centers: 750 mm, Nominal: 800 mm |
| Depth | 39 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 78.500 cm × 10.000 cm × 4.000 cm (L × W × H), 2.188 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 125.000 kg |
