Schneider Electric NSYAS800
Setting support 800 mm
- MPN
- NSYAS800
- EAN
- 3606480062872
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAS800?

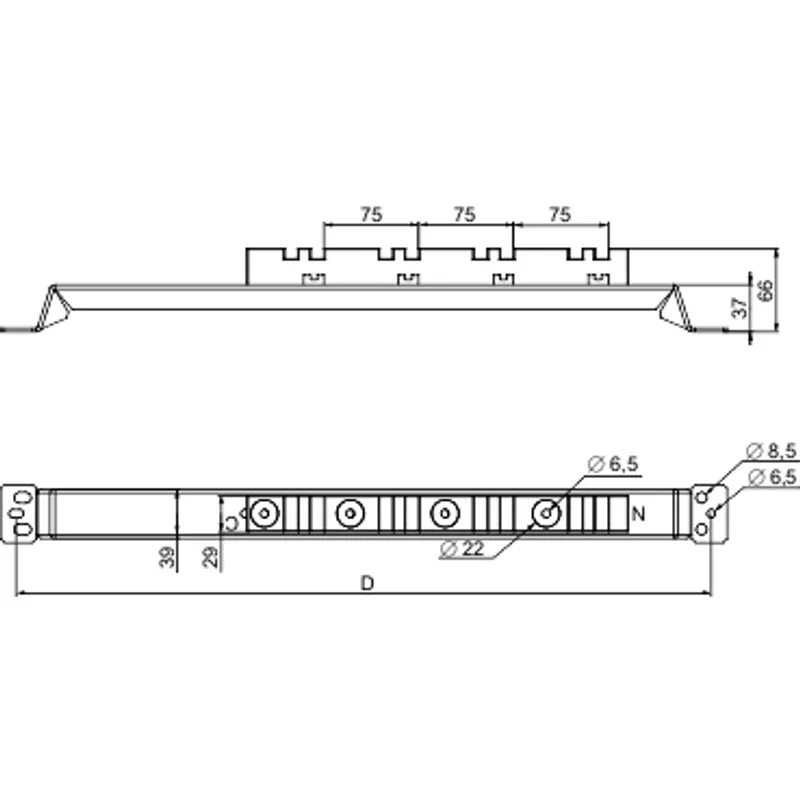

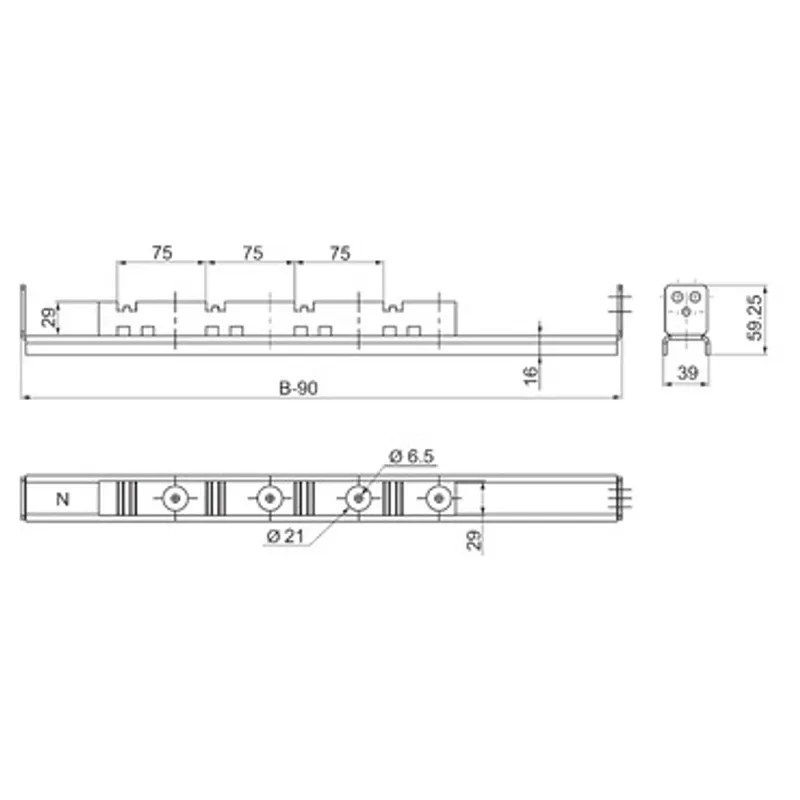

Bar support used for Prisma and multi-purpose application in Linergy LGYE, Linergy BS, Spacial SFP, Prisma PH and Spacial SFM enclosures The bar support fixing centers width is 750mm and nominal width is 800mm The height is 66mm The depth is 39mm Busbar distance is 75mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Support accessory |
| Product or component type | Bar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | - |
| Mounting location | Bottom |
| Busbar position | Vertical |
| Range compatibility | Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH, PanelSeT PanelSeT SFM |
| Cubicle-device connection | Linergy LGYE lateral busbar, Linergy BS lateral busbar |
| Device composition | Fixing elements, 1 insulating bar support, 1 metal support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element - bottom frame of enclosure location |
| Height | 66 mm |
| Width | Fixing centers: 750 mm, Nominal: 800 mm |
| Depth | 39 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 77.500 cm × 7.000 cm × 4.000 cm (L × W × H), 1.902 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 38.040 kg |
