Schneider Electric NSY17992

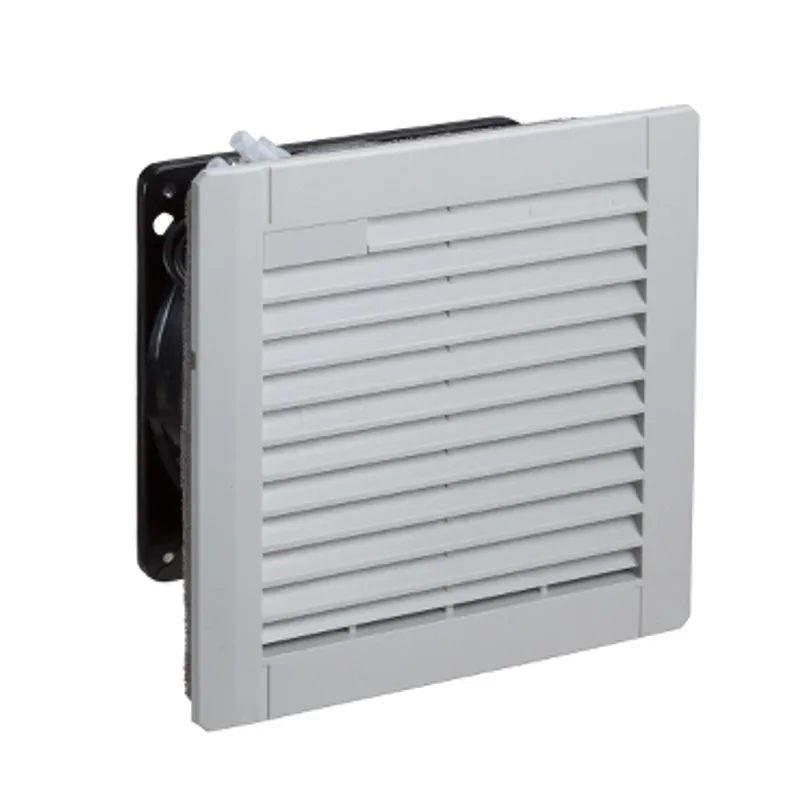

Ventilator CEM 480 m3/h
- MPN
- NSY17992
- EAN
- 3606480169403
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSY17992?
ClimaSys EMC fan 292 x 292mm with standard filter ensures effective temperature control inside enclosures The fan performs free flow rate of 480 m3/h at 50 Hz The EMC fan is equipped with ABS (acrylonitrile butadiene-styrene) outlet grille, steel frame of axial motor and berylium gasket The external width is 320mm, height is 320mm and depth is 150mm The accessory is made up of 1 axial motor, 2 protective grilles for on the front and rear surfaces, 1 filter for front of axial motor, 1 EMC outlet grille for front and 1 gasket for between fan and enclosure The outlet grille color is grey (RAL 7035) Ingress protection rating is IP54
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | EMC fan |
| Type of filter | Standard |
| Flow rate | Free flow rate: 480 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Height | External: 320 mm |
| Width | External: 320 mm |
| Depth | External : 150 mm |
| Cut-out dimensions | 292 x 292 mm |
| Material | Outlet grille: ABS (acrylonitrile butadiene-styrene), Frame of axial motor: steel, Gasket: berylium |
| Colour | Outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 EMC outlet grille: front, 1 gasket: between fan and enclosure |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 33.000 cm × 34.000 cm (L × W × H), 3.396 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 53.000 cm (L × W × H), 49.200 kg |
