Schneider Electric NSY17991
Ventilator CEM 156 m3/h
- MPN
- NSY17991
- EAN
- 3606480169397
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSY17991 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

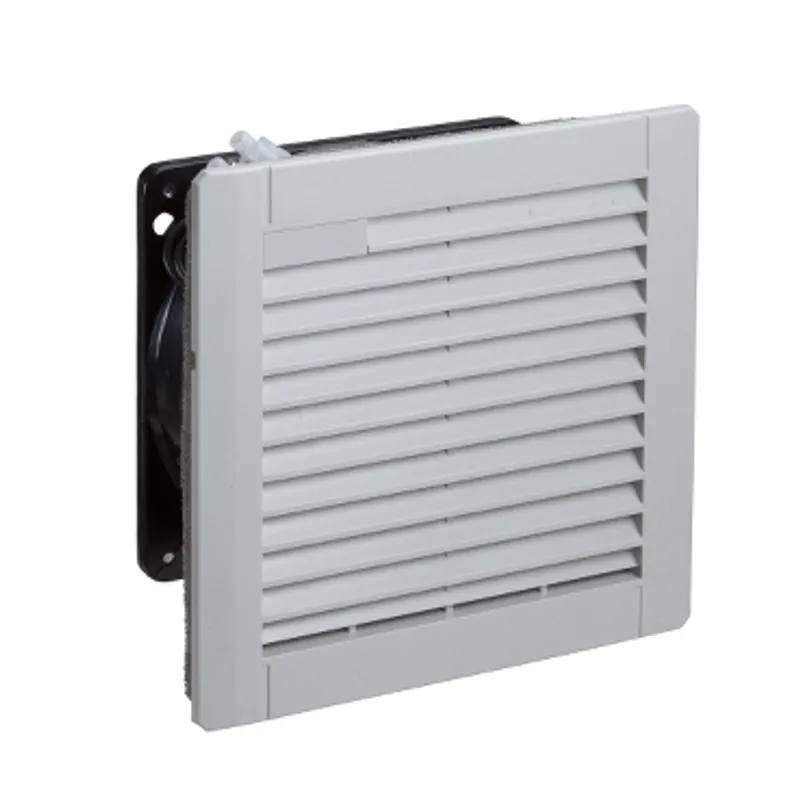

What is the Schneider Electric NSY17991?
ClimaSys EMC fan 224 x 224mm with standard filter ensures effective temperature control inside enclosures The fan performs free flow rate of 156 m3/h at 50 Hz The EMC fan is equipped with ABS (acrylonitrile butadiene-styrene) outlet grille, steel frame of axial motor and berylium gasket The external width is 252mm, height is 252mm and depth is 97mm The accessory is made up of 1 axial motor, 2 protective grilles for on the front and rear surfaces, 1 filter for front of axial motor, 1 EMC outlet grille for front and 1 gasket for between fan and enclosure The outlet grille color is grey (RAL 7035) Ingress protection rating is IP54 Input voltage is 230 V 50/60 Hz
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | EMC fan |
| Type of filter | Standard |
| Flow rate | Free flow rate: 156 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Height | External: 252 mm |
| Width | External: 252 mm |
| Depth | External : 97 mm |
| Cut-out dimensions | 224 x 224 mm |
| Material | Outlet grille: ABS (acrylonitrile butadiene-styrene), Frame of axial motor: steel, Gasket: berylium |
| Colour | Outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 EMC outlet grille: front, 1 gasket: between fan and enclosure |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 25.500 cm × 18.500 cm (L × W × H), 1.700 kg |
| Package 2 | 80 P12, 120.000 cm × 80.000 cm × 200.000 cm (L × W × H), 149.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSY17991: frequently asked questions
Can I still buy the NSY17991 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSY17991, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSY17991 be shipped?
NSY17991 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY17991 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY17991 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY17991, subject to availability and destination.
