Schneider Electric NSY17997

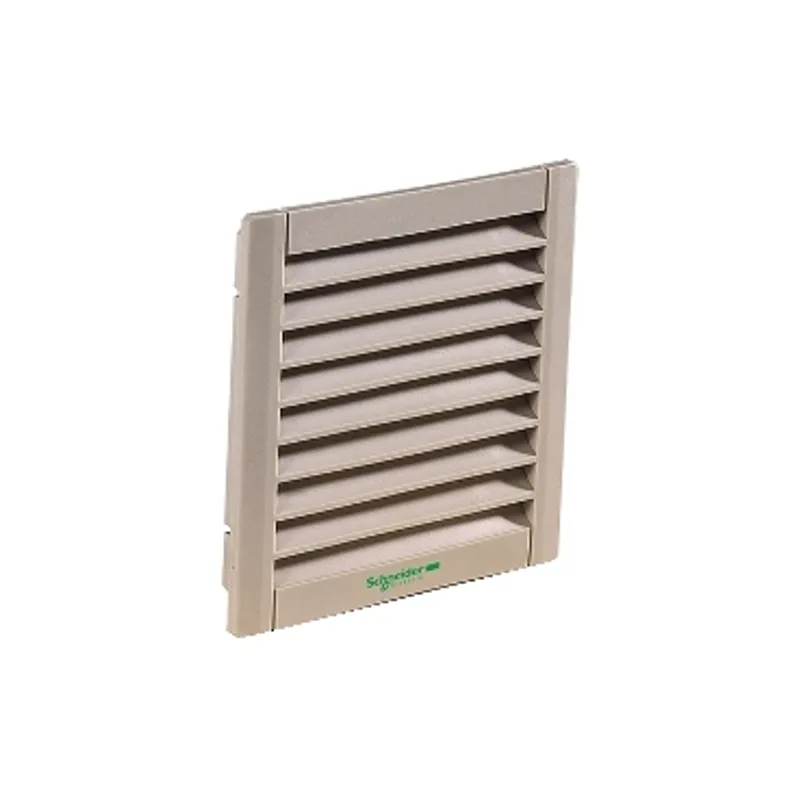

Outlet grille CEM 130
- MPN
- NSY17997
- EAN
- 3606480169427
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSY17997?
"Outlet grille 250 x 250mm made from ABS (acrylonitrile butadiene-styrene) for ClimaSys CV EMC fan" "The kit is made of 1 outlet grille for front, 1 metal frame for covering the plastic element, 1 metal grille for attached to the frame and 1 gasket for between the perimeter of the grille and the enclosure" "The external width is 250mm" Ingress protection rating (according to IEC 60529) is IP54 Fixing by screws or by clips Cut-out dimensions is 223 x 223mm Painted in outlet grille: grey (RAL 7035) "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | ClimaSys CV EMC fan |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys EMC ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 outlet grille: front, 1 metal frame: covering the plastic element, 1 metal grille: attached to the frame, 1 gasket: between the perimeter of the grille and the enclosure |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Colour | Outlet grille: grey (RAL 7035) |
| Cut-out dimensions | 223 x 223 mm |
| Height | External: 250 mm |
| Width | External: 250 mm |
| Depth | External : 36 mm |
| IP degree of protection | IP54 |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 25.500 cm × 26.000 cm (L × W × H), 746.000 g |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 108.000 cm (L × W × H), 162.200 kg |
