Schneider Electric NSY17998
Outlet grille CEM 460
- MPN
- NSY17998
- EAN
- 3606480169434
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSY17998 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

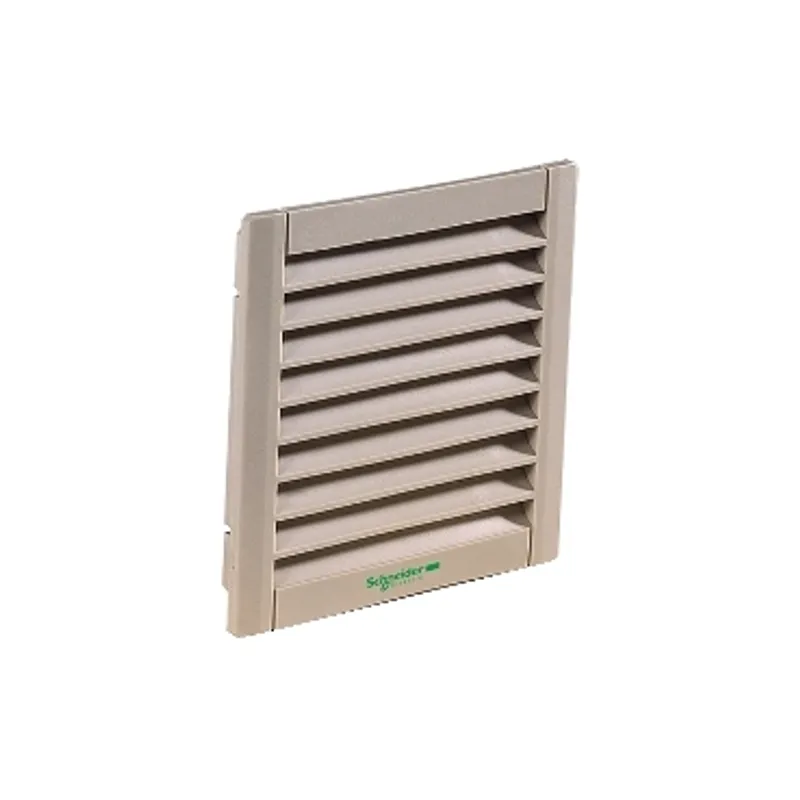

What is the Schneider Electric NSY17998?
Outlet grille x made from ABS (acrylonitrile butadiene-styrene) for ClimaSys CV EMC fan The kit is made of 1 outlet grille for front, 1 metal frame for covering the plastic element, 1 metal grille for attached to the frame and 1 gasket for between the perimeter of the grille and the enclosure The external width is 325mm Ingress protection rating (according to IEC 60529) is IP54 Fixing by screws or by clips Cut-out dimensions is 291 x 291mm Painted in outlet grille: grey (RAL 7035)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | ClimaSys CV EMC fan |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys EMC ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 outlet grille: front, 1 metal frame: covering the plastic element, 1 metal grille: attached to the frame, 1 gasket: between the perimeter of the grille and the enclosure |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Colour | Outlet grille: grey (RAL 7035) |
| Cut-out dimensions | 291 x 291 mm |
| Height | External: 325 mm |
| Width | External: 325 mm |
| Depth | External : 36 mm |
| IP degree of protection | IP54 |
Packaging
| Package 1 | 1 PCE, 34.000 cm × 33.000 cm × 4.500 cm (L × W × H), 1.174 kg |
| Package 2 | 120 PAM, 120.000 cm × 100.000 cm × 108.000 cm (L × W × H), 153.880 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSY17998: frequently asked questions
Can I still buy the NSY17998 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSY17998, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSY17998 be shipped?
NSY17998 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY17998 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY17998 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY17998, subject to availability and destination.
