Schneider Electric LV430562

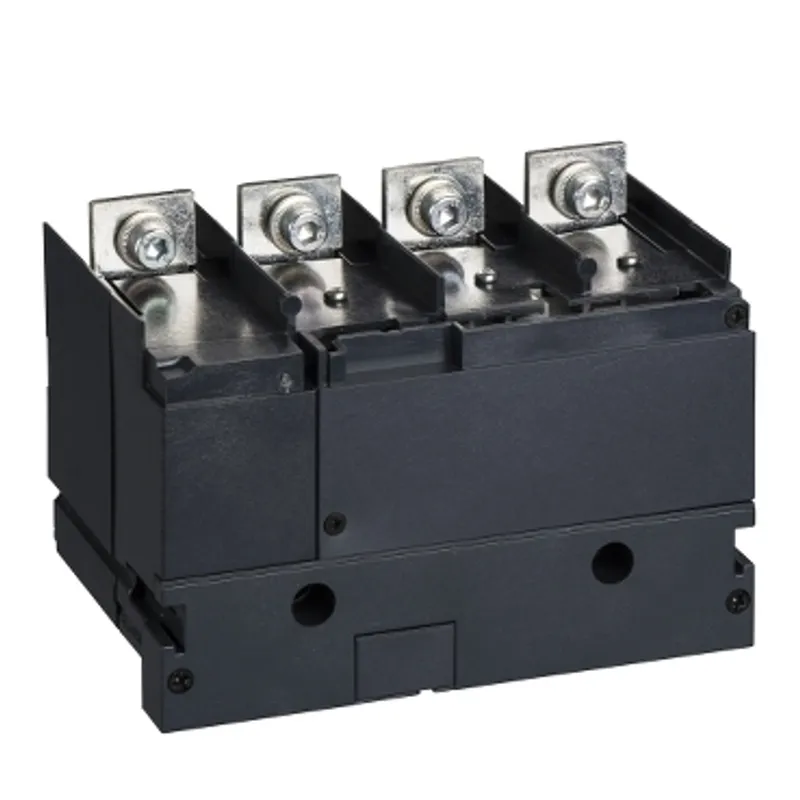

Current transformer module with voltage output, ComPact NSX160/250, 150A rating, 4 poles
- MPN
- LV430562
- EAN
- 3606480020766
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV430562?
This is an additional current transformer module of 150A rating with voltage measurement output for 4 poles ComPact NSX 160/250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 150A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
Specifications
Specifications
| Device short name | CT module and voltage output |
| Product or component type | Current transformer |
| Device application | Control |
| Range compatibility | ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 4P |
| [In] rated current | 150 A |
| Current transformer ratio | 150/5 A |
| Power consumption in VA | 1.1 VA |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | 530 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Auxiliary connection terminal | Cable connector 2.5 mm² |
| Electrical shock protection class | Class II |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 17.5 cm × 14.5 cm × 13.5 cm (L × W × H), 1.116 kg |
| Package 2 | 4 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 4.951 kg |
