Schneider Electric LV429516
Short terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 4 poles
- MPN
- LV429516
- EAN
- 3606480019906
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

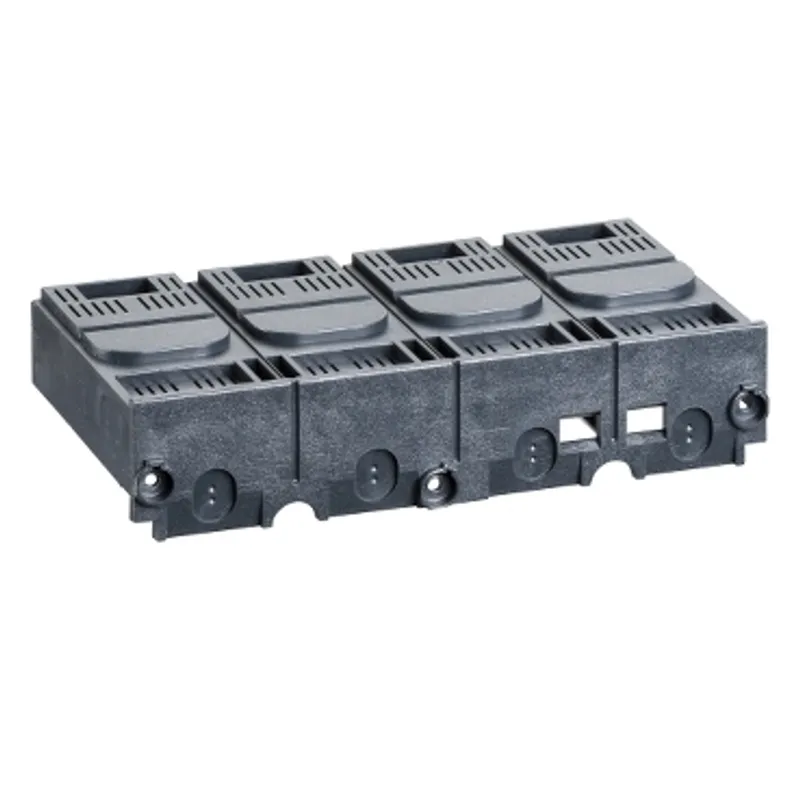

What is the Schneider Electric LV429516?
This is an insulation accessory for 4 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This short terminal shield protects against direct contact with power circuit It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Specifications
Specifications
| Product or component type | Short terminal shield |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250 |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Quantity per set | 1 |
| Connection pitch | 35 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Product compatibility | Circuit-breaker, Plug-in base |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 8.000 cm × 3.500 cm (L × W × H), 67.000 g |
| Package 2 | 40 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 3.420 kg |
| Package 3 | 160 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 24.880 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429516: frequently asked questions
When can LV429516 be shipped?
LV429516 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429516 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429516 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429516, subject to availability and destination.
