Schneider Electric LV429507

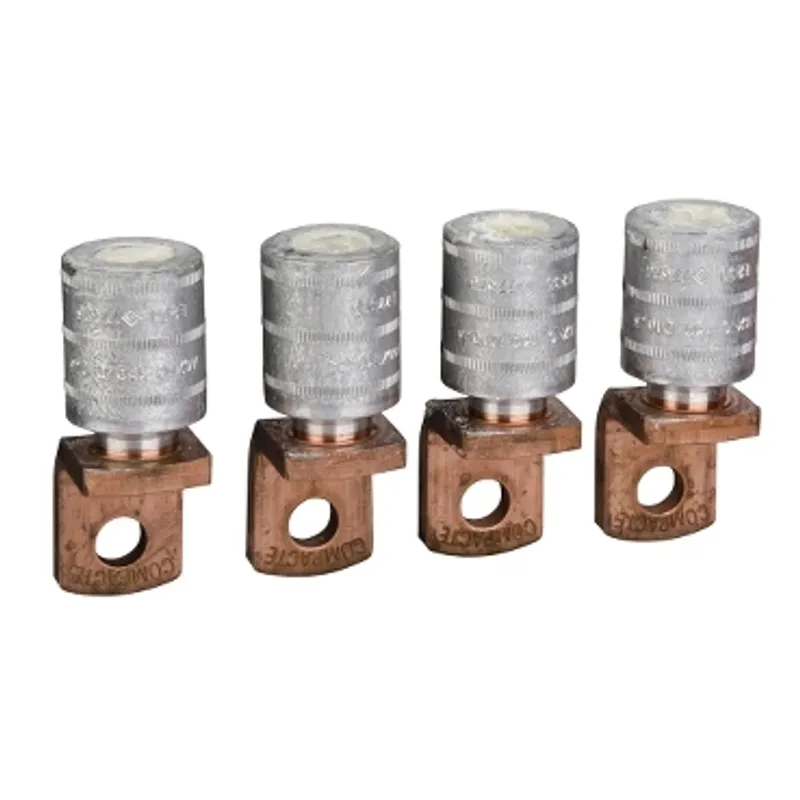

Crimp lugs for aluminium cable, ComPacT NSX100/250, 185mm², set of 4 parts
- MPN
- LV429507
- EAN
- 3606480019548
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV429507?
These accessories are crimp lugs for Compact NSX 100/160/250, EasyPact CVS 100/160/250 or FuPact INFB 100/160. These crimp lugs may be used for 185mm² aluminium cables. These crimp lugs are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
Specifications
Specifications
| Product or component type | Crimp lug |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT NSX100, ComPacT NSX160, ComPacT NSX250, ComPacT NSX100 DC, ComPacT NSX160 DC, ComPacT NSX250 DC, EasyPact CVS100...250, ComPact INS250, ComPact Compact INV100...250, FuPact FuPacT ISFT, FuPact Fupact INF |
| Poles description | 4P |
| Quantity per set | Set of 4 |
| [In] rated current | 250 A |
| Provided equipment | Interphase barriers |
| Conductor material | Aluminium |
| Connections - terminals | Crimp lug1 cable(s) 185 mm² |
Packaging
| Package 1 | 1 PCE, 11.2 cm × 13.2 cm × 3.3 cm (L × W × H), 475.0 g |
| Package 2 | 25 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 12.291 kg |
