Schneider Electric LV429518
Long terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 4 poles
- MPN
- LV429518
- EAN
- 3606480019920
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

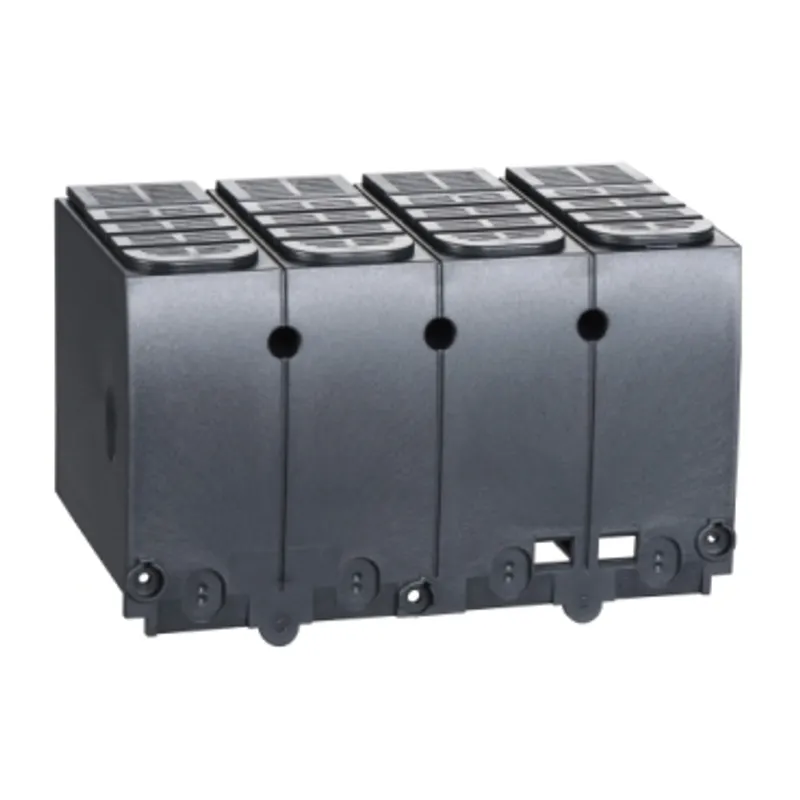

What is the Schneider Electric LV429518?
This is an insulation accessory for 4 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Specifications
Specifications
| Product or component type | Long terminal shield |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, ComPact INS250, ComPact Compact INV100...250 |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Quantity per set | 1 |
| Connection pitch | 35 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Product compatibility | Circuit-breaker, Plug-in base |
Packaging
| Package 1 | 1 PCE, 16.300 cm × 9.300 cm × 8.000 cm (L × W × H), 195.000 g |
| Package 2 | 40 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 8.476 kg |
| Package 3 | 160 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 45.184 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429518: frequently asked questions
When can LV429518 be shipped?
LV429518 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429518 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429518 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429518, subject to availability and destination.
