Schneider Electric LV431061

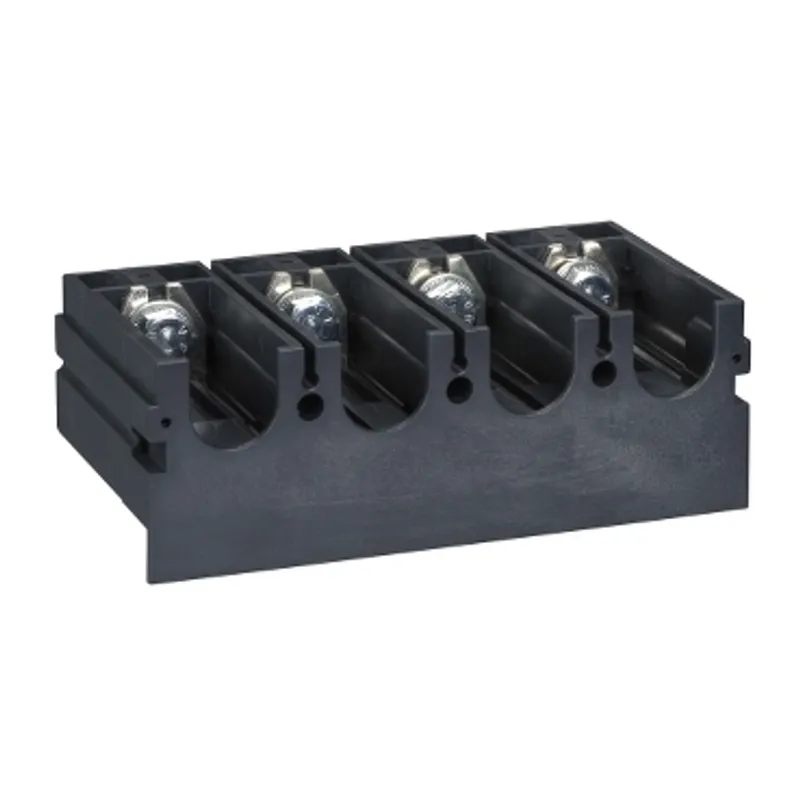

One piece spreader, ComPacT NSX 100/160/250, 35mm to 45mm pitch, flat connection, 4 poles
- MPN
- LV431061
- EAN
- 3606480019623
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV431061?
This one piece spreader is used for 4 poles Compact NSX 100/160/250. It increases pitch distance from 35mm to 45mm and allows the connection of large cables. It is the means to align devices with different frame size in the switchboard.
Specifications
Specifications
| Product or component type | Spreader |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPacT ComPacT NSX DC, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 4P |
| Quantity per set | 1 |
| Mounting mode | Top mounted |
| [In] rated current | 250 A |
| Connection pitch | 45 mm |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 24.000 cm × 8.000 cm (L × W × H), 1.048 kg |
| Package 2 | 20 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 21.664 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV431061: frequently asked questions
When can LV431061 be shipped?
LV431061 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV431061 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV431061 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV431061, subject to availability and destination.
