Schneider Electric
LV429410Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections
Schneider Electric LV429506

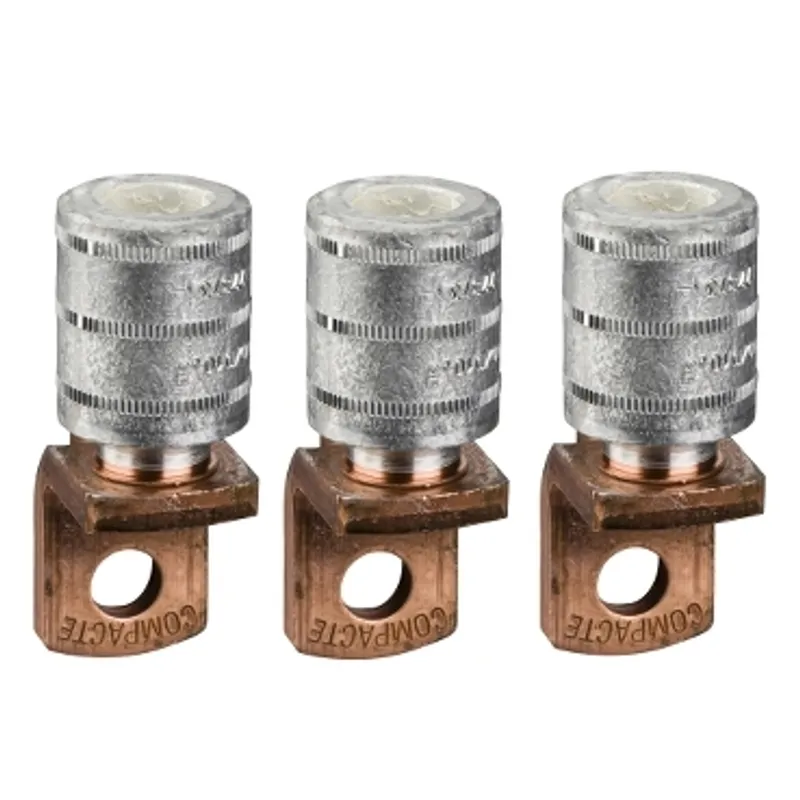

Crimp lugs for aluminium cable, ComPacT NSX100/250, 185mm², set of 3 parts
- MPN
- LV429506
- EAN
- 3606480019531
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV429506?
These accessories are crimp lugs for Compact NSX 100/160/250, EasyPact CVS 100/160/250 or FuPact INFB 100/160. These crimp lugs may be used for 185mm² aluminium cables. These crimp lugs are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
Specifications
Specifications
| Product or component type | Crimp lug |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT NSX100, ComPacT NSX160, ComPacT NSX250, ComPacT NSX100 DC, ComPacT NSX160 DC, ComPacT NSX250 DC, EasyPact CVS100...250, ComPact INS250, ComPact Compact INV100...250, FuPact FuPacT ISFT, FuPact Fupact INF |
| Poles description | 3P |
| Quantity per set | Set of 3 |
| [In] rated current | 250 A |
| Provided equipment | Interphase barriers |
| Conductor material | Aluminium |
| Connections - terminals | Crimp lug1 cable(s) 185 mm² |
Packaging
| Package 1 | 1 PCE, 18.0 cm × 13.0 cm × 4.0 cm (L × W × H), 355.0 g |
| Package 2 | 25 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 9.362 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429506: frequently asked questions
When can LV429506 be shipped?
LV429506 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429506 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429506 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429506, subject to availability and destination.
