Schneider Electric LV429410
Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections
- MPN
- LV429410
- EAN
- 3606480018992
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

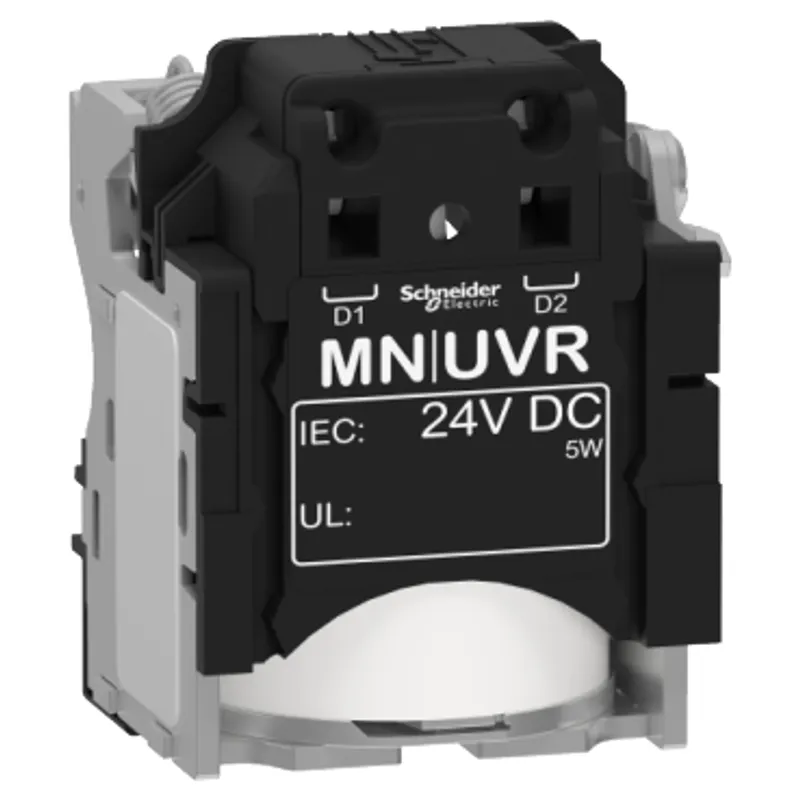

What is the Schneider Electric LV429410?
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Specifications
Specifications
| Range | ComPacT |
| Range of product | ComPact NSX100...250, ComPacT NSX100...250, ComPact NSX400...630, ComPacT NSX400...630, ComPact NSX100...250 DC, ComPacT NSX100...250 DC, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV, ComPact NSX400...630 DC, ComPacT NSX400...630 DC, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC PV, Galaxy VS |
| Device short name | MN |
| Product or component type | Voltage release |
| Device application | Control |
| Range compatibility | ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC, EasyPact EasyPact CVS, PowerPact PowerPact Multistandard |
| Voltage release type | Opening coil, Undervoltage release |
| [Uc] control circuit voltage | 24 V DC |
| Operating threshold | 0.35...0.7 x Un opening, 0.85 x Un closing |
| Response time | 50 ms |
| Supply holding power | 5 W |
| Supply inrush power | 10 W |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length | 7 mm |
Packaging
| Package 1 | 1 PCE, 8.000 cm × 4.000 cm × 6.300 cm (L × W × H), 124.000 g |
| Package 2 | 10 BB1, 22.500 cm × 14.800 cm × 9.000 cm (L × W × H), 1.337 kg |
| Package 3 | 60 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.492 kg |
