Schneider Electric BMXXBE2005

Extender kit, Modicon M340, for X80 backplane

MPN: BMXXBE2005
EAN: 3595863999693
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXXBE2005?

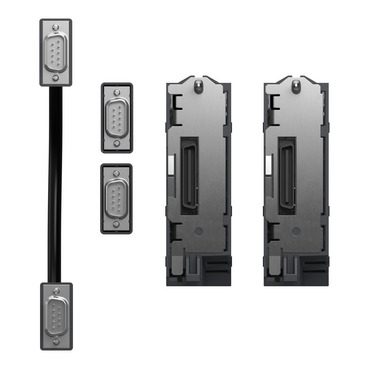

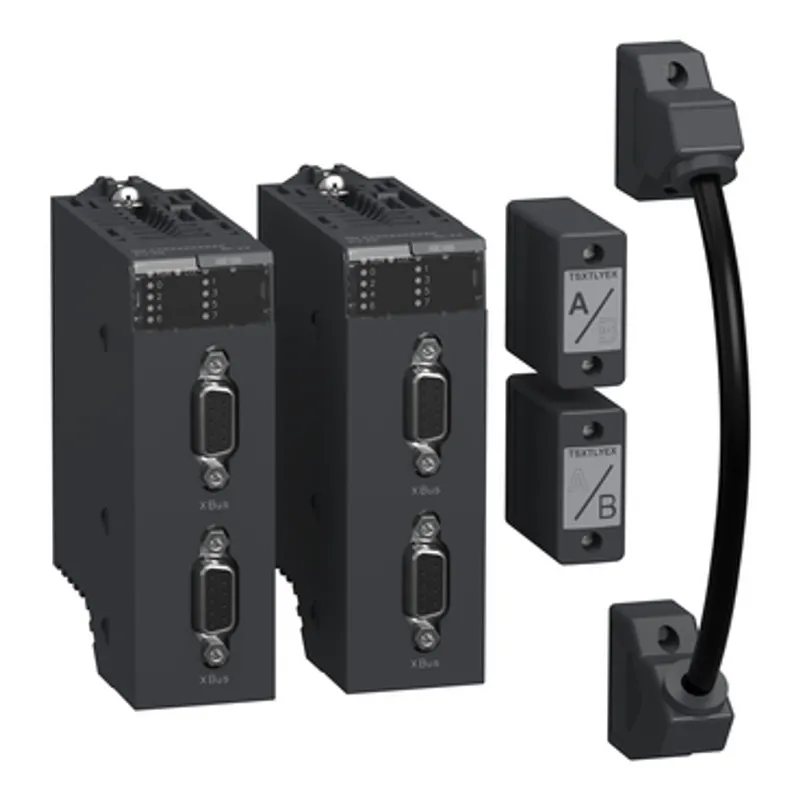

This I/O rack expansion kit is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This kit enables 2-rack configuration, with two BMXXBE1000 rack expansion modules. It also comprises, one BMXXBC008K extension cordset, length 0.8m and one TSXTLYEX line terminator (set of 2). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This backplane expander is compatible with Modicon M340 BMXXBP1200, BMXXBP0800, BMXXBP0600 and BMXXBP0400 backplane. This pack is composed of one BMXXBC008K extension cordset, length 0.8m and one TSXTLYEX line terminator (set of 2). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon M340 automation platform
Accessory / separate part category	Connection accessories
Accessory / separate part type	Backplane
Accessory / separate part designation	M340 backplane extender kit
Product compatibility	BMXXBE1000
Accessory / separate part destination	M340 backplane
Kit composition	Cable and line terminator
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
Environmental characteristic	Hazardous location class I division 2

Packaging

Package 1	1 PCE, 22.200 cm × 20.300 cm × 6.200 cm (L × W × H), 634.000 g
Package 2	10 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 7.010 kg
