Schneider Electric BMXXBE1000H

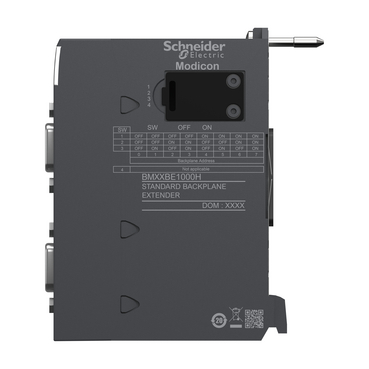

Backplane expander, Modicon M340, for multirack configuration, ruggedized

MPN: BMXXBE1000H
EAN: 3595864009728
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXXBE1000H?

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This ruggedized backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP1200, BMXXBP0800, BMXXBP0600 and BMXXBP0400 backplane. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon M340 automation platform
Accessory / separate part category	Extension accessory
Accessory / separate part type	Backplane
Accessory / separate part designation	Ruggedized backplane expander
Product compatibility	BMXXBP1200, BMXXBP0800, BMXXBP0600, BMXXBP0400
Accessory / separate part destination	For multiracks configuration
Product specific application	For severe environments
Electrical connection	2 female connectors SUB-D 9
Local signalling	1 LED green for operating status (RUN) bus, 1 LED red for collision error (COL) rack, 4 LEDs green for rack adresses status
Current consumption	160 mA at 24 V DC, 22 mA at 3.3 V DC
Module format	Standard
IP degree of protection	IP20
Ambient air temperature for operation	-25…70 °C
Relative humidity	10…95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0
Environmental characteristic	3C3 conforming to IEC 60721-3-3, 3C4 conforming to IEC 60721-3-3
Protective treatment	Conformal coating

Packaging

Package 1	1 PCE, 11.700 cm × 11.000 cm × 5.500 cm (L × W × H), 180.000 g
Package 2	15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.050 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXXBE1000HPDF

BMXXBE1000H: frequently asked questions
