Schneider Electric

Schneider Electric BMXXBP0600H

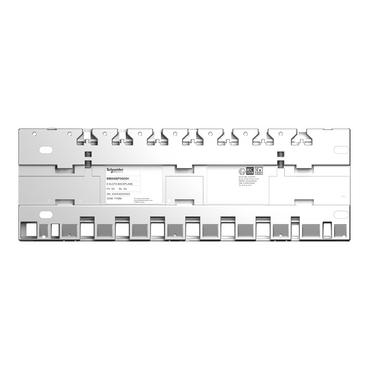

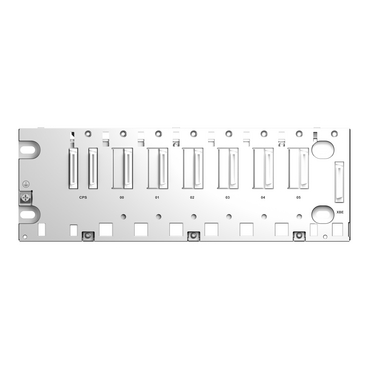

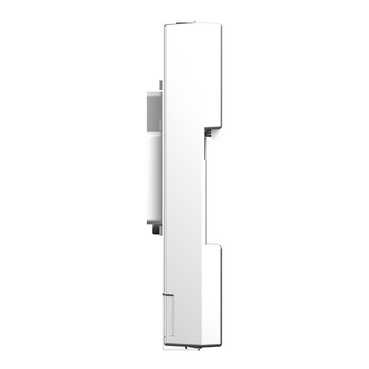

Backplane, Modicon X80, 6 slots, panel, mounitng plate or DIN rail mounting, ruggedized

MPN: BMXXBP0600H
EAN: 3595864009377
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXXBP0600H?

This backplane is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This X Bus backplane rack is an accessory of programmable automation controllers. This X-bus racks is composed of 6 slots. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an IP20 rated product. The backplane has a weigh of 0.790kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This rack is compatible with BMXCPS power supply, BMXP34 or BMEP58 processor, and Modicon X80 modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon X80
Product or component type	Ruggedized backplane
Product specific application	For severe environments
Number of slots	6 bus X
Product compatibility	BMXP34 processor, BMXCPS power supply, I/O module, Specific application module
Power consumption in W	1.68 W
Electrical connection	1 connector (XBE) expansion module
Fixing mode	By 4 M4/M5/M6 screws, mounting on panel, By 4 M4/M5/M6 screws, mounting on mounting plate, By clips, mounting on 35 mm symmetrical DIN rail
Height	103.7 mm
Width	307.6 mm
Depth	19 mm
Net weight	0.79 kg
IP degree of protection	IP20
Ambient air temperature for operation	-25…70 °C
Relative humidity	10…95 % without condensation
Protective treatment	Conformal coating
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards	EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2

Packaging

Package 1	1 PCE, 39.0 cm × 15.1 cm × 6.7 cm (L × W × H), 844.0 g
Package 2	9 S04, 60.0 cm × 40.0 cm × 30.0 cm (L × W × H), 8.296 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet BMXXBP0600HPDF
