Schneider Electric BMXXBE1000

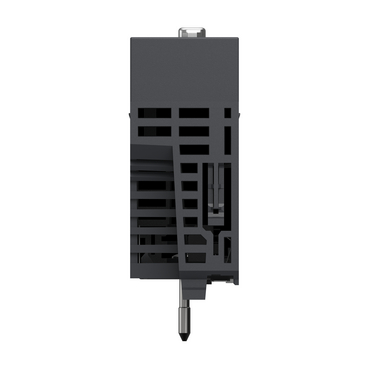

Backplane expander, Modicon M340, for multiracks configuration

MPN: BMXXBE1000
EAN: 3595863992175
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMXXBE1000?

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon M340 automation platform
Accessory / separate part category	Extension accessory
Accessory / separate part type	Backplane
Accessory / separate part designation	Backplane expander
Product compatibility	BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200
Accessory / separate part destination	For multiracks configuration
Electrical connection	2 female connectors SUB-D 9
Local signalling	1 LED green for operating status (RUN) bus, 1 LED red for collision error (COL) rack, 4 LEDs green for rack adresses status
Current consumption	160 mA at 24 V DC, 22 mA at 3.3 V DC
Module format	Standard
IP degree of protection	IP20
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G
Environmental characteristic	Hazardous location class I division 2
Protective treatment	TC

Packaging

Package 1	1 PCE, 11.500 cm × 11.000 cm × 5.500 cm (L × W × H), 173.000 g
Package 2	15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.910 kg
