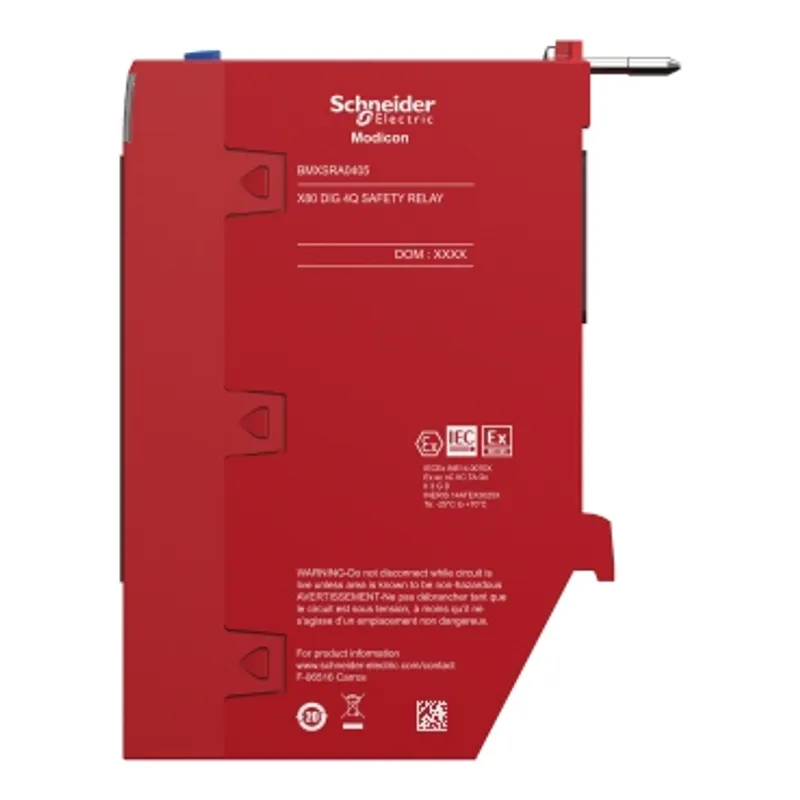

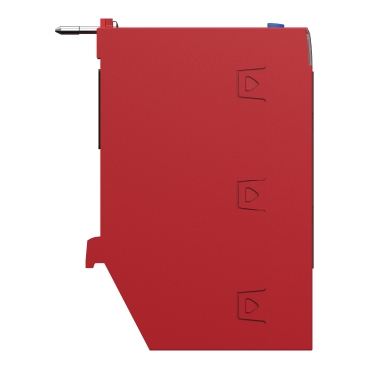

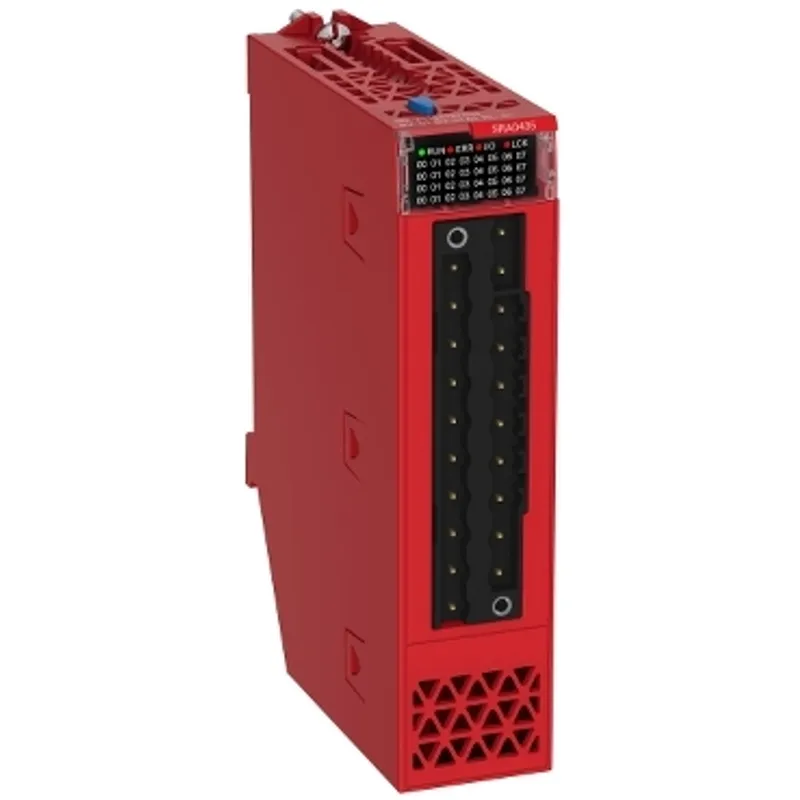

Schneider Electric BMXSRA0405
Safety relay output module, Modicon X80, 4 isolated outputs, 24 to 230V AC, 24V DC
- MPN
- BMXSRA0405
- EAN
- 3606481204936
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXSRA0405?
This safety discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 non-isolated output channels and it is supplied with 24 to 230V AC/24V DC. This safety product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +60°C/-13°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 624145 hours of MTBF. This discrete module has a weight of 0.145kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Safety PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 4 conforming to IEC 61131-2 |
| Discrete output type | Relay |
| Discrete output voltage | 24...240 V 10...264 V AC, 12...24 V 10...34 V DC |
| [Ith] conventional free air thermal current | 5 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.9 W |
| Response time on output | 12 ms activation, 6 ms deactivation |
| Typical current consumption | 240 mA at 3.3 V DC, 130 mA at 24 V DC |
| MTBF reliability | 624000 H |
| Protection type | External short-circuit protection, overvoltage protection, inductive AC network, overvoltage protection, inductive DC network, External overload protection |
| Output overload protection | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | Use discharge diode on each output DC, Use RC circuit on each output AC, Use ZNO surge limiter on each output AC |
| Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current | 10 mA 5 V DC |
| Maximum switching voltage | 230 V AC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | AC-15: 80000 cycles at 250 VA 250 V at -25…60 °C, AC-15: 80000 cycles at 500 VA 250 V at -25…60 °C, AC-15: 80000 cycles at 750 VA 250 V at -25…60 °C, AC-12: 250000 cycles at 250 VA 250 V at -25…60 °C, AC-12: 70000 cycles at 500 VA 250 V at -25…60 °C, AC-12: 30000 cycles at 1000 VA 250 V at -25…60 °C, DC-13: 80000 cycles at 24 VA 24 V at -25…60 °C, DC-13: 50000 cycles at 48 VA 24 V at -25…60 °C, DC-13: 30000 cycles at 96 VA 24 V at -25…60 °C, DC-12: 1000000 cycles at 24 VA 24 V at -25…60 °C, DC-12: 500000 cycles at 48 VA 24 V at -25…60 °C, DC-12: 300000 cycles at 120 VA 24 V at -25…60 °C |
| Switching frequency | <= 50 Hz |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.145 kg |
| IP degree of protection | IP20 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2 |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 389.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.570 kg |
