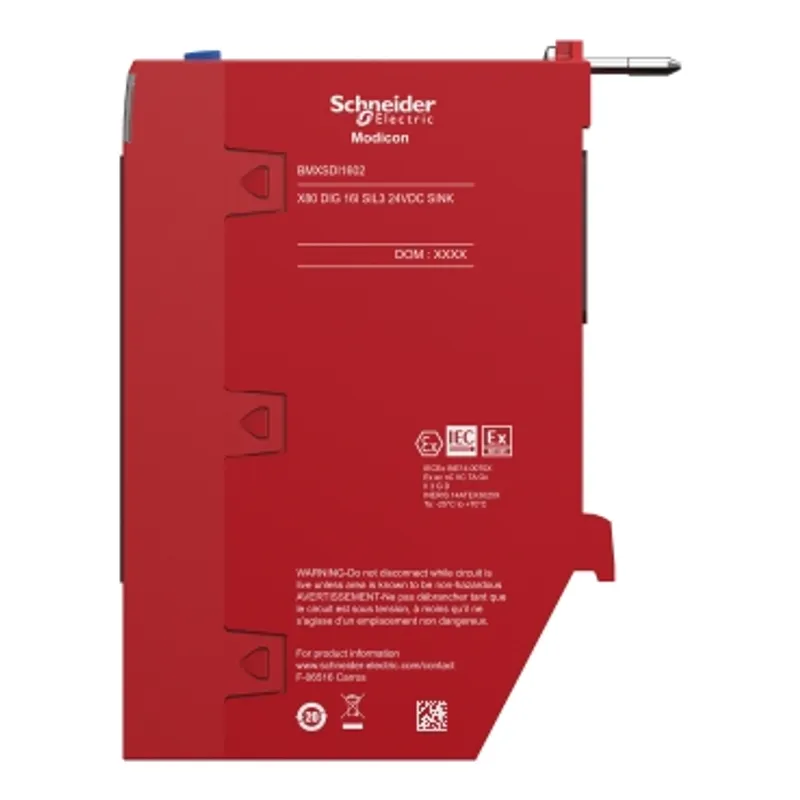

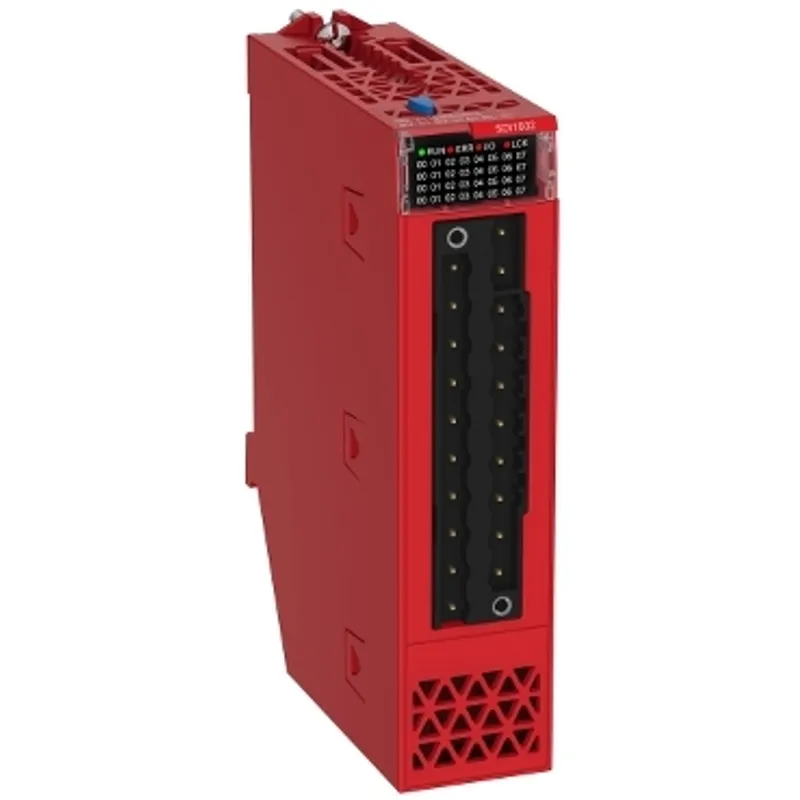

safety discrete input module, Modicon X80, 16 inputs, 24V DC positive

This safety discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 non-isolated input channels and it is supplied with 24V DC (positive). This safety product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +60°C/-13°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. This product is IP20 rated and offers 382097 hours of MTBF. This discrete module has a weight of 0.120kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Safety PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Specifications
