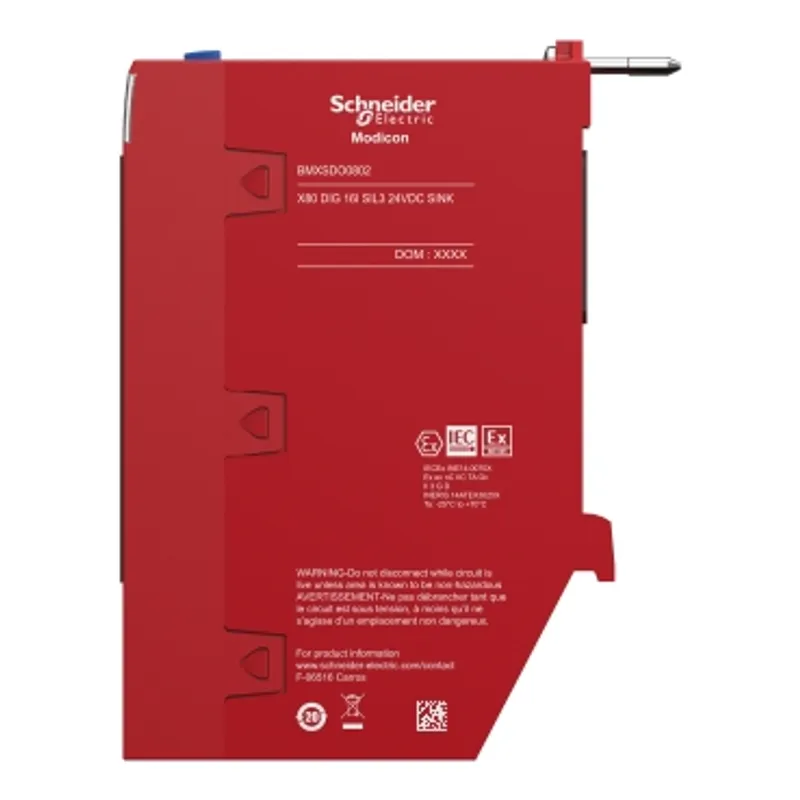

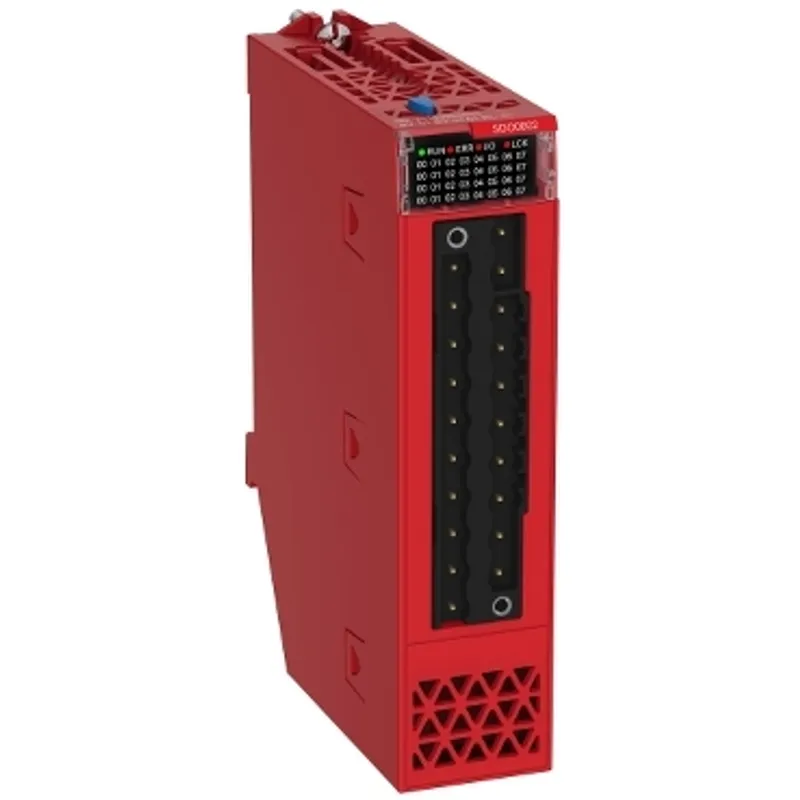

safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.12 kg |
Shipping & availability
When can BMXSDO0802 be shipped?
BMXSDO0802 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXSDO0802 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXSDO0802 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXSDO0802, subject to availability and destination.
This safety discrete output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 non-isolated output channels and it is supplied with 24V DC (positive). This safety product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +60°C/-13°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 382097 hours of MTBF. This discrete module has a weight of 0.120kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Safety PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Discrete output number | 8 conforming to IEC 61131-2 |
| Discrete output type | Solid state, Not isolated |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A |
| Output compatibility | Not IEC 61131-2 DC input, IEC 61131-2 type 3 DC input |
| Current per channel | 0.625 A |
| Maximum current per module | 10 A |
| Maximum leakage current | 0.5 mA at state 0 |
| Maximum voltage drop | <1.2 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4.4 W |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 264 mA at 3.3 V DC, 15 mA at 24 V |
| MTBF reliability | 383000 H |
| Protection type | Reverse polarity protection, overload protection, overvoltage protection, short-circuit protection |
| Output overload protection | With current limiter, With electronic circuit breaker 1.5 In < Id < 2 In |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC sensor fault, > 18 V DC sensor OK |
| Maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | >= 48 Ohm |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.12 kg |
| IP degree of protection | IP20 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground, 1500 V AC at 50/60 Hz 1 minute, output/internal logic |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 341.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.275 kg |
| Warranty (in months) | 18 |
