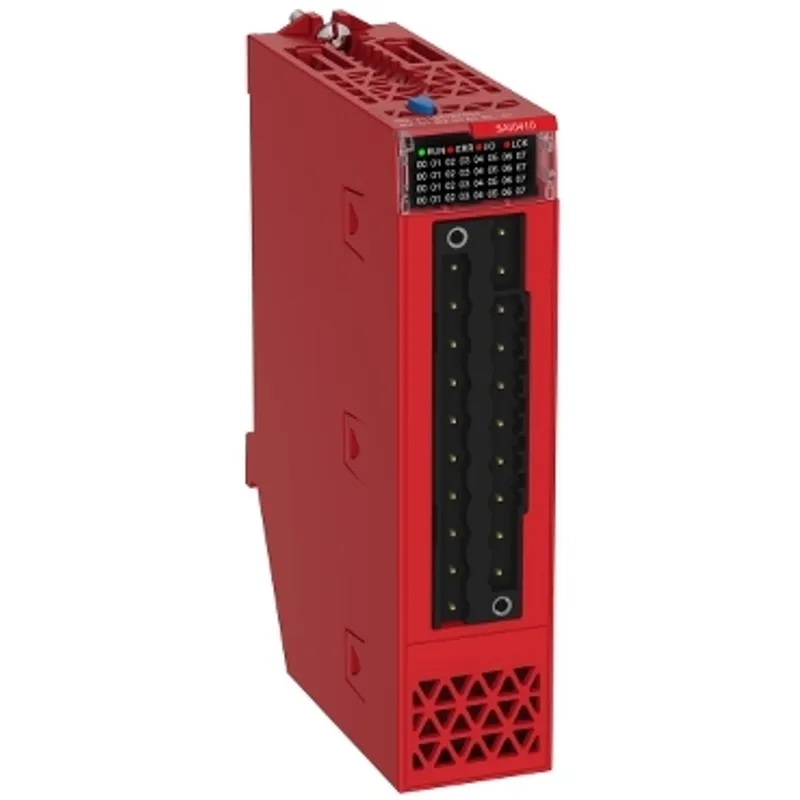

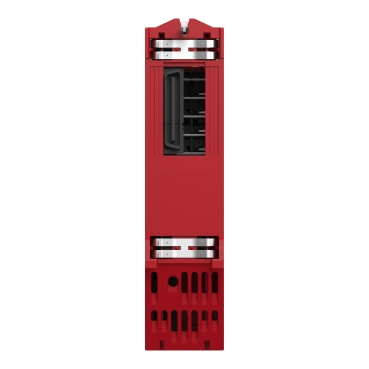

Schneider Electric BMXSAI0410
Safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA
- MPN
- BMXSAI0410
- EAN
- 3606481204943
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXSAI0410?
This safety analog input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 isolated input channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is connected via a 20-way removable terminal block. This product is IP20 rated and offers 463104 hours of MTBF. This discrete module has a weight of 0.120kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Safety PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Analog input module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA |
| Analog/digital conversion | 16 bits |
| Analogue input resolution | 13 bits, 0...12500 counts |
| Permitted overload on inputs | 25 mA 4...20 mA |
| Input impedance | 286 Ohm |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | Second order digital filtering |
| Nominal read cycle time | 6 ms for 4 channels |
| Measurement error | <= 0.3 % of full scale 4...20 mA - 25...60 °C |
| Temperature drift | 30 ppm/°C 4...20 mA |
| Recalibration | Internal |
| Minimum crosstalk attenuation | 120 dB |
| Digital value format | +/- 32000 in user scale, +/- 10000 by default |
| Isolation voltage | 500 V DC between channels, 1500 V DC between channels and ground, 1500 V DC between channels and bus |
| Measurement resolution | 2 µA 4...20 mA |
| Maximum conversion value | 0...25 mA 4...20 mA |
| MTBF reliability | 463000 H |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.143 kg |
| Current consumption | 200 mA at 3.3 V DC, 115 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Product certifications | TÜV, CSA, EAC, RCM, UL, ATEX, Merchant Navy |
| Standards | CSA C22.2 No 61010-2-201, IEC 61131-2, IEC 61010-2-201, UL 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 344.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.297 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMXSAI0410: frequently asked questions
When can BMXSAI0410 be shipped?
BMXSAI0410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXSAI0410 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXSAI0410 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXSAI0410, subject to availability and destination.
