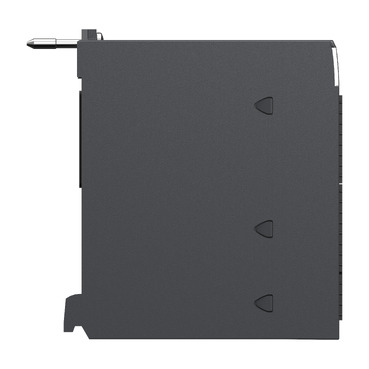

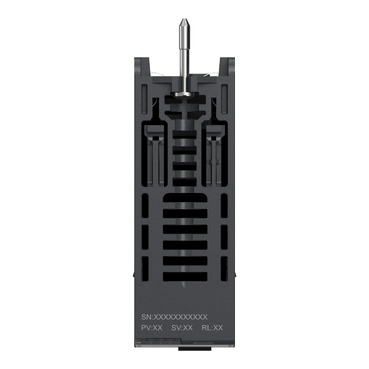

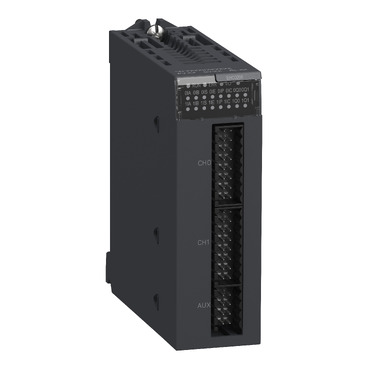

Schneider Electric BMXEHC0200
Counter module, Modicon M340, high speed, 2 channels
- MPN
- BMXEHC0200
- EAN
- 3595863910148
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXEHC0200?
This counter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This counter module for severe environments is equipped with 2 high speed channels. The Modicon X80 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Its casing provides IP20 protection of the electronics. This module has a weight of 0.112kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. The product must be installed on the rack and fixed with 2 screws. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon M340 automation platform |
| Product or component type | Counter module |
| Number of channels | 2 |
| Maximum counting frequency | 60000 Hz |
| Number of inputs | 6 |
| Input compatibility | 19.2…30 V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10...30 V totem pole |
| Input voltage | 24 V DC type 3 |
| Number of outputs | 2 |
| Output voltage | 24 V DC |
| Counter functions | Loop (modulo) counting, Width modulation, Down counting, Measure time periods, Ratio count, Count events, 32-bit counter counting, Frequency meter |
| Cycle time | 1 ms |
| Isolation voltage | 1500 V for 60 s |
| Input type | 3 auxiliary input, 3 high speed |
| Input voltage limits | 30 V |
| Input current | 2 mA at 11 V |
| Voltage state 1 guaranteed | 11...30 V |
| Current state 1 guaranteed | >= 6 mA |
| Voltage state 0 guaranteed | < 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Discrete output logic | Positive or negative configurable |
| Maximum output current | 2 A per module, 0.5 A per output |
| Output voltage limits | 19.2...30 V |
| Maximum load current | 1 A per module, 0.5 A per output |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | <3 V at state 1 |
| Output overload protection | Integrated |
| Output short-circuit protection | 1.5 A integrated |
| Overlap time | 0.2 ms |
| Electrical connection | 1 connector with 10 pins for wiring auxiliary input and sensor power supply, 1 connector with 16 pins for wiring the sensors of counter 0, 1 connector with 16 pins for wiring the sensors of counter 1 |
| Current consumption | 200 mA at 3.3 V DC bus, 40 mA at 24 V DC rack, 80 mA at 24 V DC sensor |
| Module format | Standard |
| Net weight | 0.112 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Protective treatment | Standard version |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 11.000 cm × 5.500 cm (L × W × H), 155.000 kg |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.840 kg |
| Package 3 | 240 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 49.908 kg |
