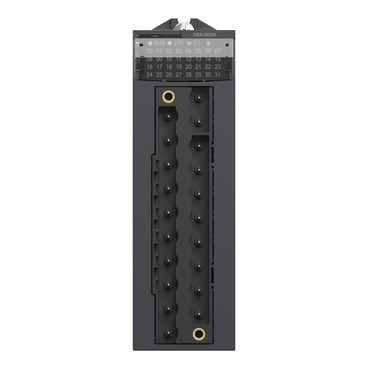

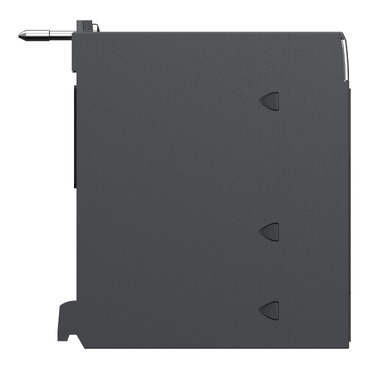

Schneider Electric BMXDRA1605H
Discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
- MPN
- BMXDRA1605H
- EAN
- 3595864025803
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXDRA1605H?
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 normally open relay outputs and it is supplied with 24 to 240V AC/24 to 48V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It offers electrical durability of 100000, 300000, 50000, 7000 cycles and 1357810 hours of MTBF. This product is IP20 rated and offers 2066927 hours of MTBF. This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Product specific application | For severe environments |
| Discrete output number | 16 conforming to IEC 61131-2 |
| Discrete output type | Relay |
| Discrete output voltage | 24...48 V 19...60 V DC, 24...240 V 19…264 V AC |
| [Ith] conventional free air thermal current | 2 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3 W |
| Response time on output | < 8 ms activation, < 10 ms deactivation |
| Typical current consumption | 100 mA at 3.3 V DC, 95 mA at 24 V DC |
| MTBF reliability | 2100000 H |
| Output overload protection | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | Use discharge diode on each output DC, Use RC circuit on each output AC, Use ZNO surge limiter on each output AC |
| Output short-circuit protection | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current | 1 mA 5 V DC |
| Electrical durability | AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7), AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35), AC-12: 100000 cycles at 200 VA 100 V, AC-12: 100000 cycles at 80 VA 48 V, AC-12: 100000 cycles at 50 VA 24 V, AC-15: 100000 cycles at 120 VA 100 V, AC-15: 100000 cycles at 120 VA 24 V, AC-15: 100000 cycles at 120 VA 48 V, DC-12: 100000 cycles at 24 W 24 V, DC-13: 100000 cycles at 10 W 24 V, DC-13: 100000 cycles at 10 W 48 V, AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7), AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35), AC-12: 300000 cycles at 200 VA 200 V, AC-12: 300000 cycles at 80 VA 100 V, AC-12: 300000 cycles at 50 VA 48 V, AC-15: 300000 cycles at 36 VA 100 V, AC-15: 300000 cycles at 72 VA 100 V, AC-15: 300000 cycles at 36 VA 48 V, AC-15: 300000 cycles at 72 VA 48 V, AC-15: 300000 cycles at 36 VA 24 V, AC-15: 300000 cycles at 72 VA 24 V, DC-13: 300000 cycles at 3 W 24 V, DC-13: 300000 cycles at 3 W 48 V, DC-13: 7000 cycles at 24 W 24 V, DC-13: 7000 cycles at 24 W 48 V, DC-12: 50000 cycles at 24 W 48 V |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Net weight | 0.15 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2 |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
Packaging
| Package 1 | 1 PCE, 11.6 cm × 11.0 cm × 5.5 cm (L × W × H), 190.0 g |
| Package 2 | 15 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 3.15 kg |
