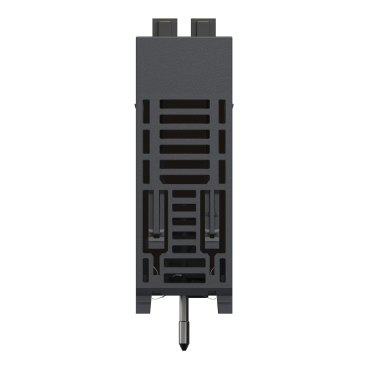

Schneider Electric BMXDDO6402KC
Discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive, conformal coating
- MPN
- BMXDDO6402KC
- EAN
- 3606480927836
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMXDDO6402KC?
"This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 64 output channels and it is supplied with 24V DC (positive)." "Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 148469 hours of MTBF." "This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors." "The product must be installed on the rack and fixed with 2 screws."
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete output module |
| Product specific application | For severe environments |
| Discrete output number | 64 conforming to IEC 61131-2 |
| Discrete output type | Solid state |
| Discrete output logic | Positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.1 A |
| Current per channel | 0.125 A |
| Maximum current per module | 6.4 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 6.85 W |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Typical current consumption | 160 mA at 3.3 V DC |
| MTBF reliability | 150000 H |
| Protection type | Reverse polarity protection, External short-circuit protection, overload protection, overvoltage protection |
| Output overload protection | With current limiter, With electronic circuit breaker 0.125 A < Id < 0.185 A |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault, > 18 V DC preactuator at state 0 |
| Maximum tungsten load | 1.2 W |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | >= 220 Ohm |
| Status LED | 1 LED (green) +32 channels indicator, 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.15 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | Gas resistant class Gx, Gas resistant class 3C4, Dust resistant class 3S4, Sand resistant class 3S4, Salt resistant level 2, Mold growth resistant class 3B2, Fungal spore resistant class 3B2 |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 500 V DC 1 minute, between group of channels |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 0…60 °C without condensation |
| Protective treatment | Conformal coating |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
Packaging
| Package 1 | 1 PCE, 11.0 cm × 12.0 cm × 5.5 cm (L × W × H), 229.2 g |
| Package 2 | 15 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 2.75 kg |
