Schneider Electric BMEXBP0400H

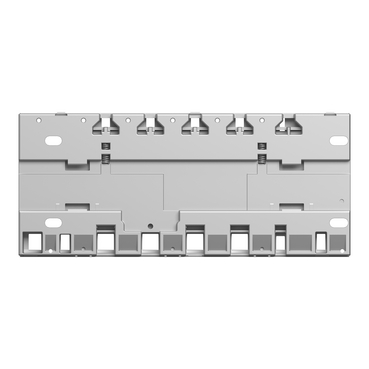

Rack, Modicon X80, 4 slots, Ethernet backplane, ruggedized

MPN: BMEXBP0400H
EAN: 3595864173948
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMEXBP0400H?

"This backplane is part of the Modicon X80 range, a common platform of modules for Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC)." "This Ethernet backplane is an accessory of programmable automation controllers." "This dual X-bus and Ethernet backplane is composed of 4 X-bus and Ethernet slots for any modules and has a power consumption of 2.99W." "This backplane supports a large choice of modules and can be extended thanks to its XBE slot. This ruggedized product can be used in more severe environments and operate in an extended temperature range, from -25°C to +70°C." "This backplane has a current of 118mA at 24V DC and 49mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection." "It is an IP20 rated product." "The backplane has a weigh of 0.719kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards." "This backplane is compatible with X80 power supply, M340 or M580 processor, and Modicon X80 modules." "Modicon X80 range offers common compatible modules that reduce maintenance and training costs with the same spare parts in stock and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures."

Specifications

Range of product	Modicon X80
Accessory / separate part type	Ruggedized rack
Product specific application	For severe environments
Number of slots	4 bus X + Ethernet
Product compatibility	BMXCPS power supply, I/O module, Specific application module, BMX processor, BME processor
Power consumption in W	162 mW 3.3 V DC, 2.8 W 24 V DC
Electrical connection	1 connector (XBE) expansion module
Fixing mode	By 4 screws - diameter: 4.32…6.35 mm, mounting on panel, By 4 M6 screws, mounting on plate, By clips, mounting on 35 mm symmetrical DIN rail
Current consumption	49 mA at 3.3 V DC, 118 mA at 24 V DC
MTBF reliability	1588025 H
Net weight	0.705 kg
IP degree of protection	IP20
Ambient air temperature for operation	-25…70 °C
Relative humidity	5…95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Product certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
Environmental characteristic	Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2
Protective treatment	Conformal coating

Packaging

Package 1	1 PCE, 32.500 cm × 15.500 cm × 7.000 cm (L × W × H), 725.000 g
Package 2	13 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.273 kg
