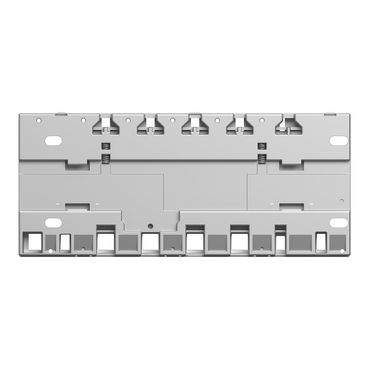

Schneider Electric BMEXBP0400
Rack, Modicon X80, 4 slots, Ethernet backplane
- MPN
- BMEXBP0400
- EAN
- 3595864174037
- Category
- Modicon X80 modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMEXBP0400?
This backplane is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This Ethernet backplane rack is an accessory of programmable automation controllers. This 4-slot dual Ethernet and X-bus backplane provides 4 slots with 4 Ethernet and X-bus connectors for mixed modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is an Ethernet backplane rack with a current of 118mA at 24V DC and 49mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 2000000 hours of MTBF. It is an IP20 rated product. The backplane has a weigh of 0.715kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This rack is compatible with BMXCPS power supply, BMXP58 or BMEH58 processor, and Modicon X80 modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
Specifications
Specifications
| Range of product | Modicon X80 |
| Accessory / separate part type | Rack |
| Number of slots | 4 bus X + Ethernet |
| Product compatibility | I/O module, BMX processor, Specific application module, BMXCPS power supply, BME processor |
| Power consumption in W | 162 mW 3.3 V DC, 2.8 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws - diameter: 4.32…6.35 mm, mounting on panel, By 4 M6 screws, mounting on plate, By clips, mounting on 35 mm symmetrical DIN rail |
| Current consumption | 49 mA at 3.3 V DC, 118 mA at 24 V DC |
| MTBF reliability | 1588025 H |
| Net weight | 0.705 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
Packaging
| Package 1 | 1 PCE, 32.500 cm × 15.000 cm × 6.600 cm (L × W × H), 702.000 g |
| Package 2 | 13 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.086 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMEXBP0400: frequently asked questions
When can BMEXBP0400 be shipped?
BMEXBP0400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMEXBP0400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMEXBP0400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMEXBP0400, subject to availability and destination.
