Schneider Electric BMEXBP0602

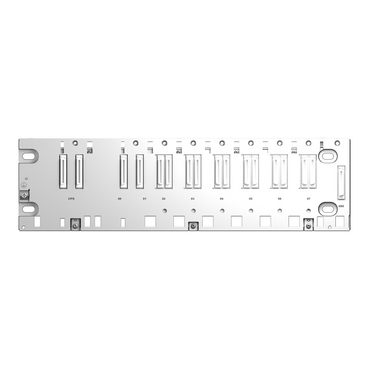

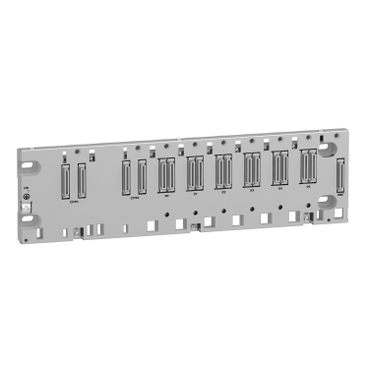

Backplane rack, Modicon X80, 6 slots, redundant Ethernet backplane

MPN: BMEXBP0602
EAN: 3606480911743
Category: Modicon X80 modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMEXBP0602?

This backplane is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This Ethernet backplane rack is an accessory of programmable automation controllers. This 6-slot dual Ethernet and X-bus backplane provides 6 slots with 6 Ethernet and X-bus connectors for mixed modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is an Ethernet backplane rack with a current of 152mA at 24V DC and 58mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 201000 hours of MTBF. It is an IP20 rated product. The backplane has a weigh of 1.387kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This rack is compatible with BMXCPS400 redundant power supply, BMXP58 or BMEH58 processor, and Modicon X80 modules. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Specifications

Range of product	Modicon X80
Accessory / separate part type	Rack
Number of slots	6 bus X + Ethernet
Product compatibility	Specific application module, BMX processor, I/O module, BME processor, BMXCPS4002
Power consumption in W	191 mW 3.3 V DC, 3.6 W 24 V DC
Electrical connection	1 connector (XBE) expansion module
Fixing mode	By 4 screws - diameter: 4.32…6.35 mm, mounting on panel, By 4 M6 screws, mounting on plate, By clips, mounting on 35 mm symmetrical DIN rail
Current consumption	152 mA at 24 V DC, 58 mA at 3.3 V DC
MTBF reliability	1353797 H
Net weight	1.02 kg
IP degree of protection	IP20
Ambient air temperature for operation	0…60 °C
Relative humidity	5…95 % without condensation
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Packaging

Package 1	1 PCE, 45.600 cm × 15.200 cm × 6.700 cm (L × W × H), 1.007 kg
Package 2	9 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.010 kg
