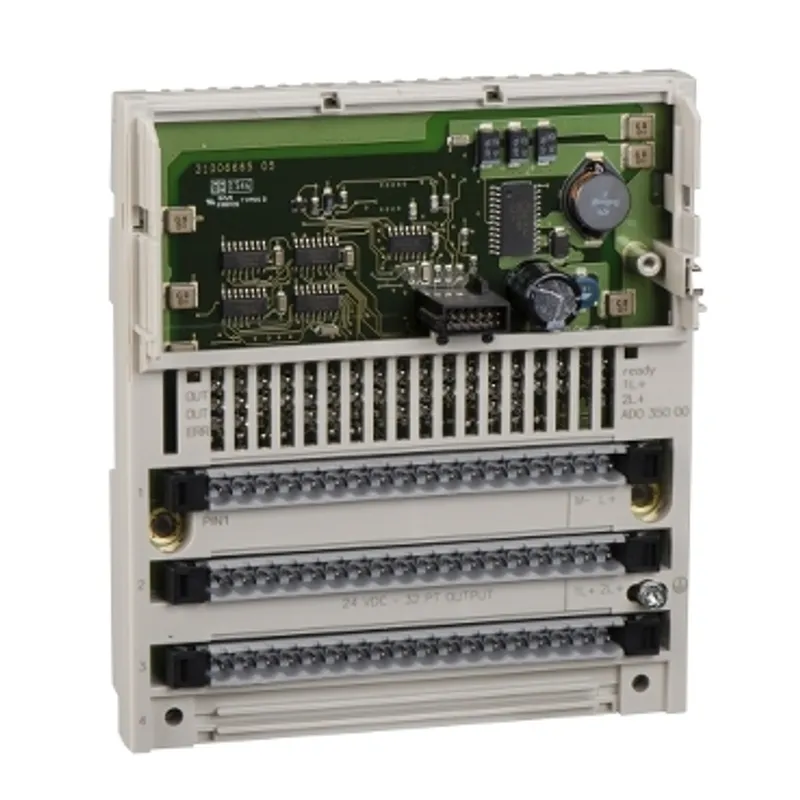

discrete output module Modicon Momentum - 32 O solid state
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Momentum |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.21 kg |
Shipping & availability
When can 170ADO35000 be shipped?
170ADO35000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170ADO35000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170ADO35000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADO35000, subject to availability and destination.
This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. It is a discrete solid state I/O base for DC. This output base supports two groups of 16 outputs. It is electronically safeguarded against short circuit and overload. The internal communications connector provides automatic communication to any adapter mounted on the base. It is a CSA and UL certified product. It weighs 0.21kg. The I/O base provides the foundation for the rest of the Momentum control system. The 16 inputs are IEC 1131-2 Type 3 conformant. Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount. Momentum I/O bases offer simple plug-in terminal strips. Modicon Momentum is a flexible, modular family of fundamental components. Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications.
Specifications
Specifications
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete output base DC |
| Group of channels | 2 groups of 16 outputs |
| Discrete output number | 32 |
| Discrete output type | Solid state switch |
| Discrete output voltage | 24 V DC |
| Current per channel | 0.5 A |
| Short-circuit protection | Outputs electronically protected |
| Protective treatment | TC |
| [Ue] rated operational voltage | 24 V DC |
| Discrete output current | 16 A per module, 8 A per group |
| Maximum leakage current | 1 mA 24 V DC |
| Surge current | 5 A during 1 ms |
| Maximum voltage drop | <0.5 V 0.5 A at state 1 |
| Output overload protection | Outputs electronically protected |
| Response time | 0.1 ms from state 0 to state 1, 0.1 ms from state 1 to state 0 |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 6 W typical, 7.5 W maximum |
| Marking | CE |
| Local signalling | 32 LEDs for channel status |
| Current consumption | 250 mA at 24 V DC |
| Terminals description PLC n°1 | (15)OUT_DIS#15, TB, (2)OUT_DIS#2, (8)OUT_DIS#8, (L+)PW_POS, (16)OUT_DIS#16, (7)OUT_DIS#7, (M-)PW_NEG, (12)OUT_DIS#12, (9)OUT_DIS#9, (11)OUT_DIS#11, (14)OUT_DIS#14, (1)OUT_DIS#1, (5)OUT_DIS#5, (10)OUT_DIS#10, (13)OUT_DIS#13, (3)OUT_DIS#3, (4)OUT_DIS#4, (6)OUT_DIS#6 |
| Terminals description PLC n°2 | (6)OUT_DIS#22, (4)OUT_DIS#20, (7)OUT_DIS#23, (2L+)PW_POS, (3)OUT_DIS#19, TB_1, (8)OUT_DIS#24, (10)OUT_DIS#26, (12)OUT_DIS#28, (2)OUT_DIS#18, (13)OUT_DIS#29, (16)IN_DIS#32, (11)OUT_DIS#27, (14)OUT_DIS#30, (15)OUT_DIS#31, (5)OUT_DIS#21, (9)OUT_DIS#25, (1)OUT_DIS#17, (1L+)PW_POS |
| Depth | 47.5 mm |
| Height | 141.5 mm |
| Width | 125 mm |
| Net weight | 0.21 kg |
| Product certifications | CSA, UL |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 403.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.545 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 40.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 47 kg |
| Warranty | 18 months |
