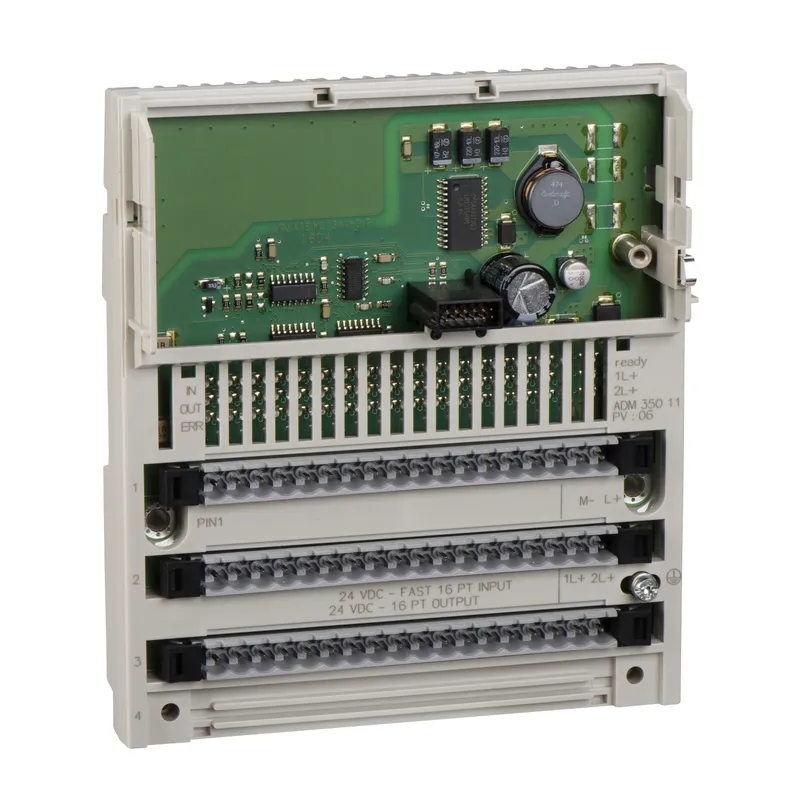

What is the Schneider Electric 170ADM85010?

"This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture." "It is a discrete relay I/O base for DC." "This relay supports one group of 16 inputs and one group of 16 outputs." "It serves as solid state switch." "The internal communications connector provides automatic communication to any adapter mounted on the base." "It is certified FM Class 1 Division 2, CSA, and UL." "It weighs 0.41kg." "The I/O base provides the foundation for the rest of the Momentum control system." "A Momentum I/O base is to be assembled with a communication adapter or a processor adapter." "Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount." "Momentum I/O bases offer simple plug-in terminal strips." "Modicon Momentum is a flexible, modular family of fundamental components." "Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon Momentum automation platform
Product or component typeDiscrete relay I/O base DC
Group of channels1 group of 16 outputs; 1 group of 16 inputs
Discrete input number16
Discrete input voltage24 V DC (voltage limits: 10...60 V); 12 V DC; 48 V DC
Discrete input logicPositive
Discrete output number16
Discrete output logicPositive
Discrete output voltage<= 60 V DC for solid state switch; 12 V DC for solid state switch; 24 V DC for solid state switch; 48 V DC for solid state switch

Complementary

Input resistance4 kOhm
Peak output current5 A
Response time< 0.1 ms from state 0 to state 1 on output; < 0.1 ms from state 1 to state 0 on output; 2.2 ms from state 0 to state 1 on input; 3.3 ms from state 1 to state 0 on input
Protection typeInternal 2 x 2.5 A slow-blow fuses
Discrete input compatibility16 conforming to IEC 1131-2 Type 1 at 24 V DC; at 12 V DC; at 48 V DC
Voltage state 1 guaranteed11...30 V
Voltage state 0 guaranteed< 10 V
Current state 1 guaranteed2.3 mA
Discrete output number16 solid state switch at <= 60 V DC; 16 solid state switch at 12 V DC; 16 solid state switch at 24 V DC; 16 solid state switch at 48 V DC
Discrete output current0.5 A per point; 7 A per module; 8 A per group
Maximum leakage current1 mA 60 V AC output circuit
Maximum voltage drop<1 V at state 1 for output circuit
Typical current consumption250 mA at 24 V DC; 125 mA at 48 V DC; 500 mA at 12 V DC
Isolation between channels and bus707 V DC
Height141.5 mm
Width125 mm
Depth47.5 mm

Environment

IP degree of protectionIP20
Protective treatmentTC
Product certificationsFM Class 1 Division 2; UL; CSA
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

170ADM85010: frequently asked questions

When can 170ADM85010 be shipped?

170ADM85010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170ADM85010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170ADM85010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADM85010, subject to availability and destination.
