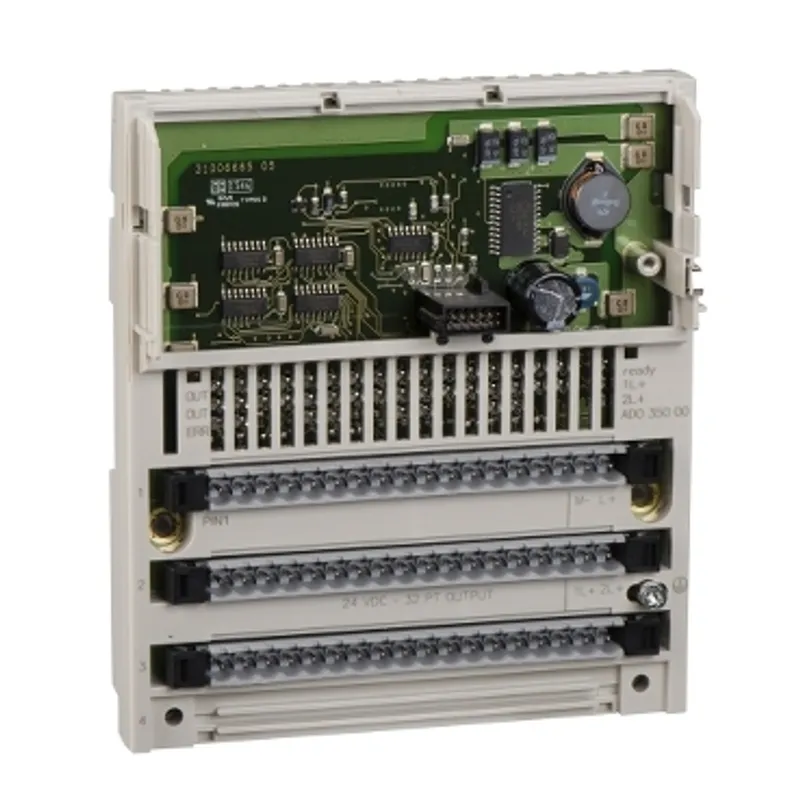

What is the Schneider Electric 170ADO54050?

This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base AC module offers 2 groups of 8 outputs, 16 discrete outputs with triac type. It offers discrete output voltage of 120V AC. There is an isolation between channels and bus at 1780V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.284kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeDiscrete output base AC
Group of channels2 groups of 8 outputs
Discrete output number16
Discrete output typeTriac
Discrete output voltage120 V AC
Current per channel0.5 A
Short-circuit protectionInternal fuse, 5 A slow-blow per group
Protective treatmentTC
[Ue] rated operational voltage120 V AC
Discrete output current4 A per group, 8 A per module
Minimum output current30 mA
Maximum leakage current1.9 mA 120 V AC
Surge current10 A for 2 cycles, 15 A for 1 cycle, 5 A for 3 cycles
Maximum voltage drop<1.5 V 0.5 A at state 1
Output overload protectionInternal fuse
Response time1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1, 1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0
Isolation between channels and bus1780 V AC for 1 minute
Power dissipation7.5 W maximum, 6 W typical
MarkingCE
Local signalling16 LEDs for channel status
Current consumption125 mA at 120 V AC
Terminals description PLC n°1(3)OUT_DIS#3, (4)OUT_DIS#4, (12)OUT_DIS#12, (8)OUT_DIS#8, TB, (10)OUT_DIS#10, (1N)PW, (1)OUT_DIS#1, (9)OUT_DIS#9, (1L+)PW, (5)OUT_DIS#5, (13)OUT_DIS#13, (15)OUT_DIS#15, (2)OUT_DIS#2, (11)OUT_DIS#11, (6)OUT_DIS#6, (7)OUT_DIS#7, (14)OUT_DIS#14, (16)OUT_DIS#16
Depth47.5 mm
Height141.5 mm
Width125 mm
Net weight0.284 kg
Product certificationsCSA, UL, FM Class 1 Division 2
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 25.500 cm × 18.000 cm × 9.000 cm (L × W × H), 494.000 g
Package 26 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.964 kg
