Schneider Electric 170ADO34000

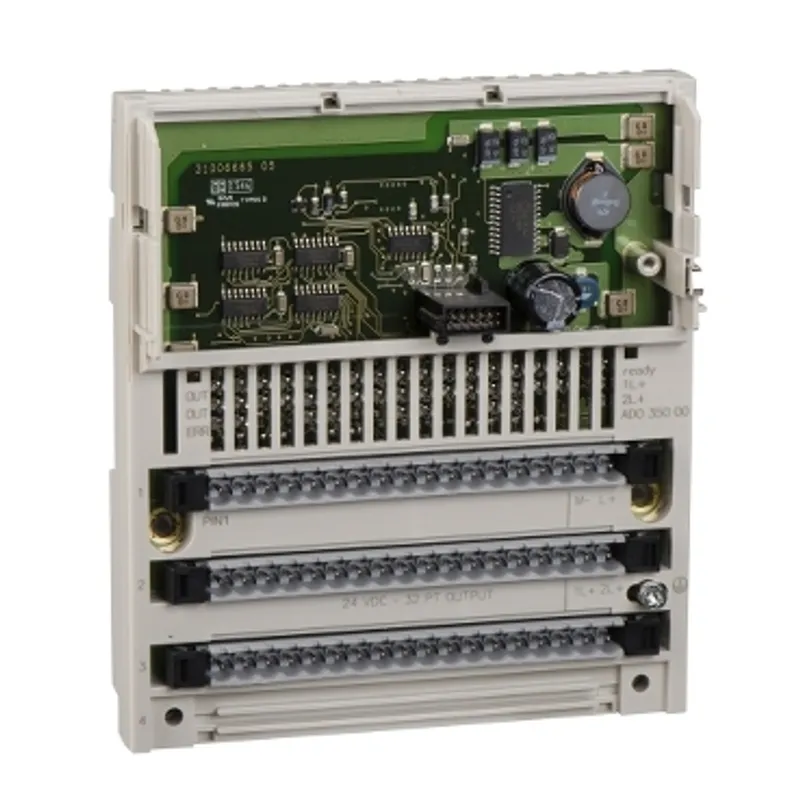

Discrete output module Modicon Momentum - 16 O solid state
- MPN
- 170ADO34000
- EAN
- 3595861147669
- Category
- Modicon Momentum
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric 170ADO34000?
This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs with solid state switch type. It offers discrete output voltage of 24V DC. There is an isolation between channels and bus at 500V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Specifications
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete output base DC |
| Group of channels | 2 groups of 8 outputs |
| Discrete output number | 16 |
| Discrete output type | Solid state switch |
| Discrete output voltage | 24 V DC |
| Current per channel | 0.5 A |
| Short-circuit protection | Outputs electronically protected |
| Protective treatment | TC |
| [Ue] rated operational voltage | 24 V DC |
| Discrete output current | 4 A per group, 8 A per module |
| Maximum leakage current | 1 mA 24 V DC |
| Surge current | 5 A during 1 ms |
| Maximum voltage drop | <0.5 V 0.5 A at state 1 |
| Output overload protection | Outputs electronically protected |
| Response time | 0.1 ms from state 0 to state 1, 0.1 ms from state 1 to state 0 |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 3.5 W typical, 4.5 W maximum |
| Marking | CE |
| Local signalling | 16 LEDs for channel status |
| Current consumption | 250 mA at 24 V DC |
| Terminals description PLC n°1 | (14)OUT_DIS#14, (2L+)PW_POS, (L+)PW_POS, (5)OUT_DIS#5, (1)OUT_DIS#1, (15)OUT_DIS#15, (M-)PW_NEG, (12)OUT_DIS#12, (8)OUT_DIS#8, (4)OUT_DIS#4, (16)OUT_DIS#16, (6)OUT_DIS#6, (2)OUT_DIS#2, (10)OUT_DIS#10, (11)OUT_DIS#11, TB, (13)OUT_DIS#13, (7)OUT_DIS#7, (9)OUT_DIS#9, (3)OUT_DIS#3, (1L+)PW_POS |
| Depth | 47.5 mm |
| Height | 141.5 mm |
| Width | 125 mm |
| Net weight | 0.21 kg |
| Product certifications | UL, FM Class 1 Division 2, CSA |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
Packaging
| Package 1 | 1 PCE, 26.0 cm × 18.2 cm × 5.7 cm (L × W × H), 384.0 g |
| Package 2 | 10 S03, 40 cm × 30 cm × 30 cm (L × W × H), 3.84 kg |
| Package 3 | 80 P06, 80.0 cm × 40.0 cm × 75.0 cm (L × W × H), 43.9 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
170ADO34000: frequently asked questions
When can 170ADO34000 be shipped?
170ADO34000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170ADO34000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170ADO34000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADO34000, subject to availability and destination.
