Pepperl Fuchs VOI-F331-24V – Converter Connection Cable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VOI-F331-24V be shipped?
VOI-F331-24V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOI-F331-24V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOI-F331-24V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOI-F331-24V, subject to availability and destination.

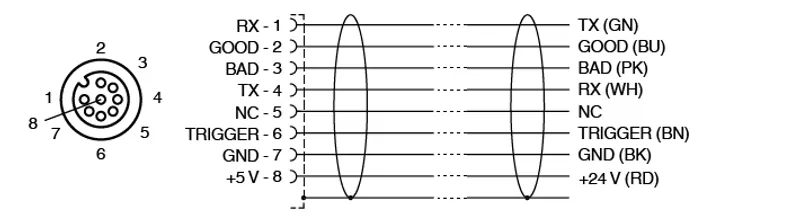

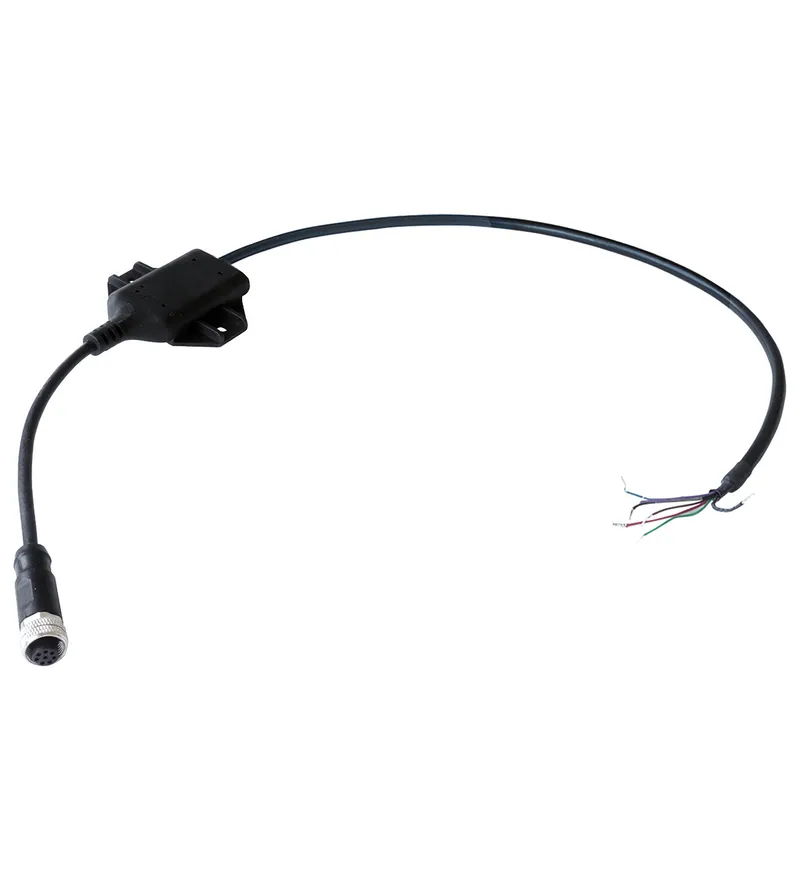

Converter connection cable, 24 V to 5 V, with an open cable end for connecting trigger, RS-232, I/Os, and a socket for voltage supply
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70195360 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Connector 1: Coding | A-coded |
| Connector 1: Degree of protection | IP65 |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC ± 10 % UB |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP65 |
| Cable: Sheath color | black (similar to RAL 9005) |
| Cable: Number of cores | 8 |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | PVC, black |
| Cable: Sheathing | PVC |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VOI-F331-24V |
More Pepperl Fuchs parts

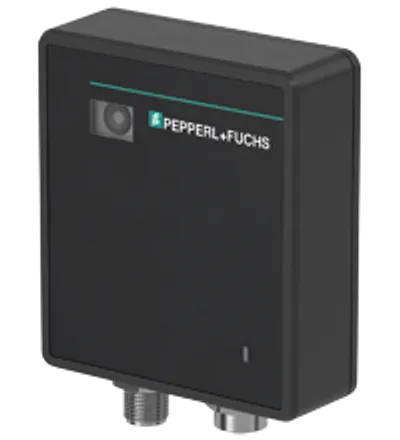

Available on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2AAvailable on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2PAvailable on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2S

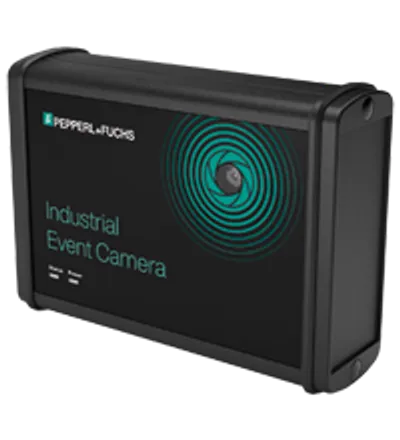

Available on requestIndustrial Event Camera VOC5M-F256-B12-V1D-CR02

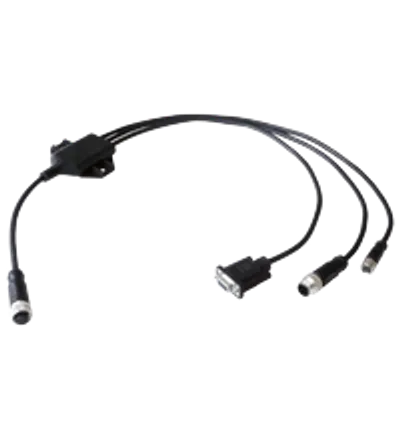

Available on requestConverter Connection Cable VOI-F331-24V-DB9

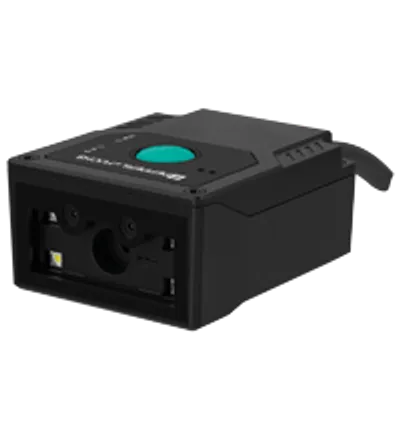

Available on requestStationary read device VOI1000-F330-4MM-R2Available on requestStationary read device VOI1100-F330-4MM-R2

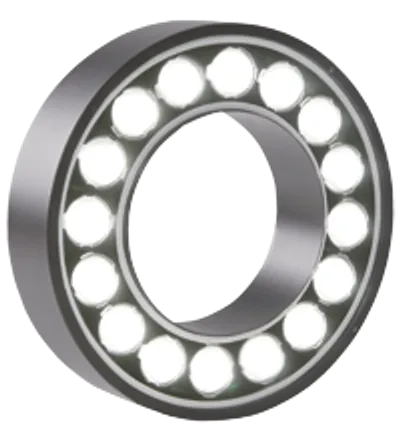

Available on requestRing lighting VOS-IL-F236W-10
