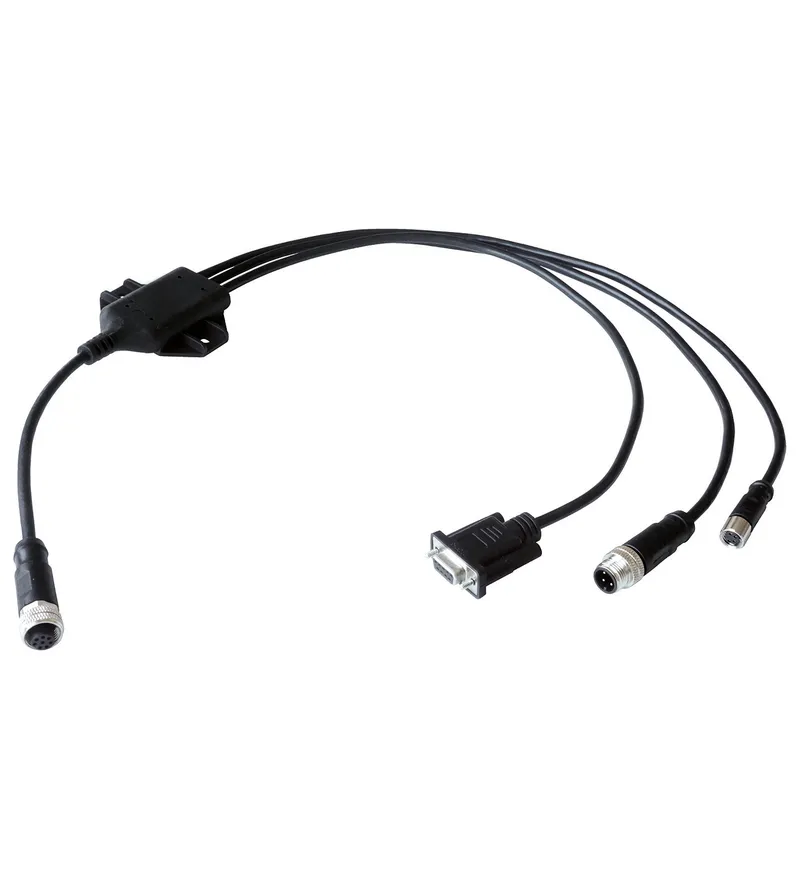

Pepperl Fuchs VOI-F331-24V-DB9 – Converter Connection Cable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VOI-F331-24V-DB9 be shipped?
VOI-F331-24V-DB9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOI-F331-24V-DB9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOI-F331-24V-DB9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOI-F331-24V-DB9, subject to availability and destination.

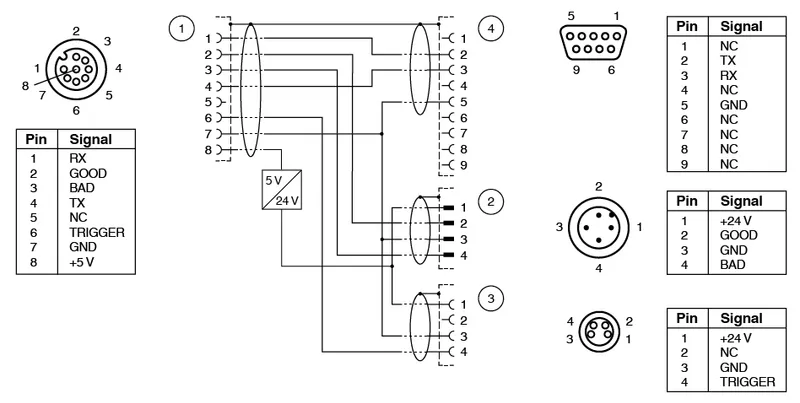

Converter connection cable, 24 V to 5 V, with a connectors for trigger, RS-232, I/Os, and a socket for voltage supply connection

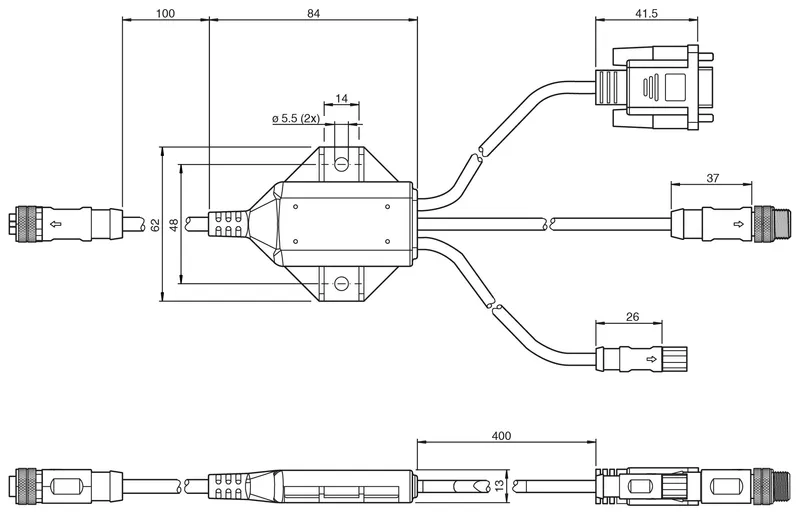

Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70195358 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Connector 1: Coding | A-coded |
| Connector 1: Degree of protection | IP65 |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Connector 2: Degree of protection | IP65 |
| Connector 3: Connection | socket |
| Connector 3: Construction type | M8 |
| Connector 3: Style | straight |
| Connector 3: Locking | screw connection |
| Connector 3: Number of pins | 4 |
| Connector 3: Coding | A-coded |
| Connector 3: Degree of protection | IP65 |
| Connector 4: Connection | socket |
| Connector 4: Construction type | Sub-D |
| Connector 4: Style | straight |
| Connector 4: Locking | screw connection |
| Connector 4: Number of pins | 9 |
| Connector 4: Degree of protection | IP20 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC ± 10 % UB |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Note | Trigger connection for 24 V |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VOI-F331-24V-DB9 |
More Pepperl Fuchs parts
Available on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2PAvailable on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2S
Available on requestIndustrial Event Camera VOC5M-F256-B12-V1D-CR02

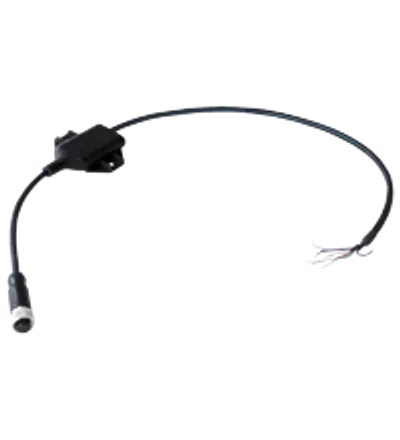

Available on requestConverter Connection Cable VOI-F331-24V
