Pepperl Fuchs VOI1100-F330-4MM-R2
Stationary read device
- MPN
- VOI1100-F330-4MM-R2
- Category
- Stationary 2-D Code Readers
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

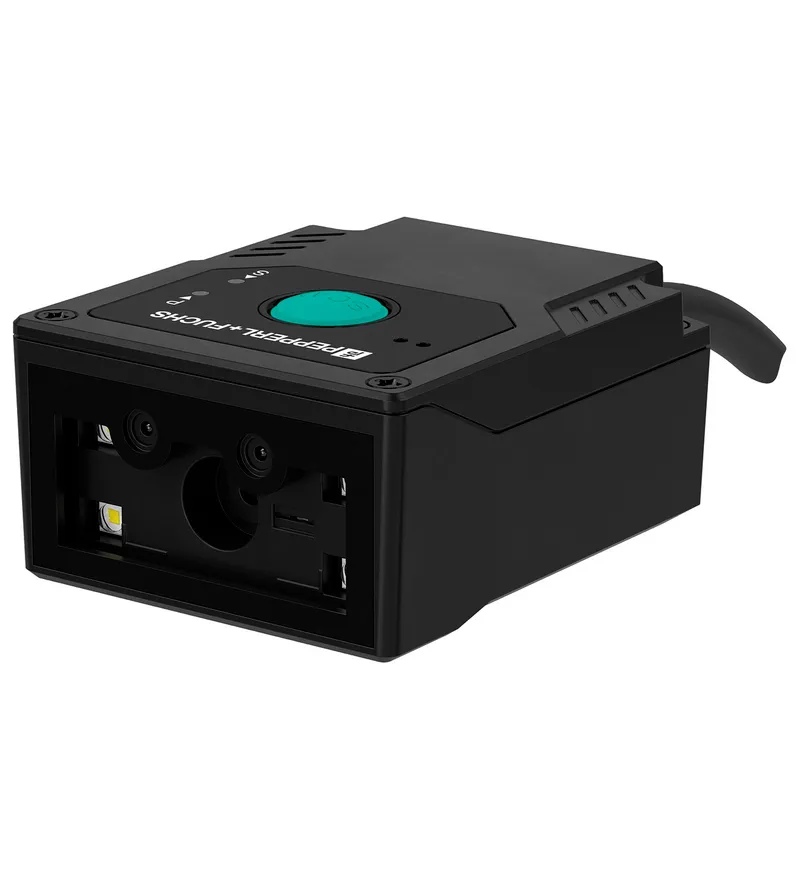

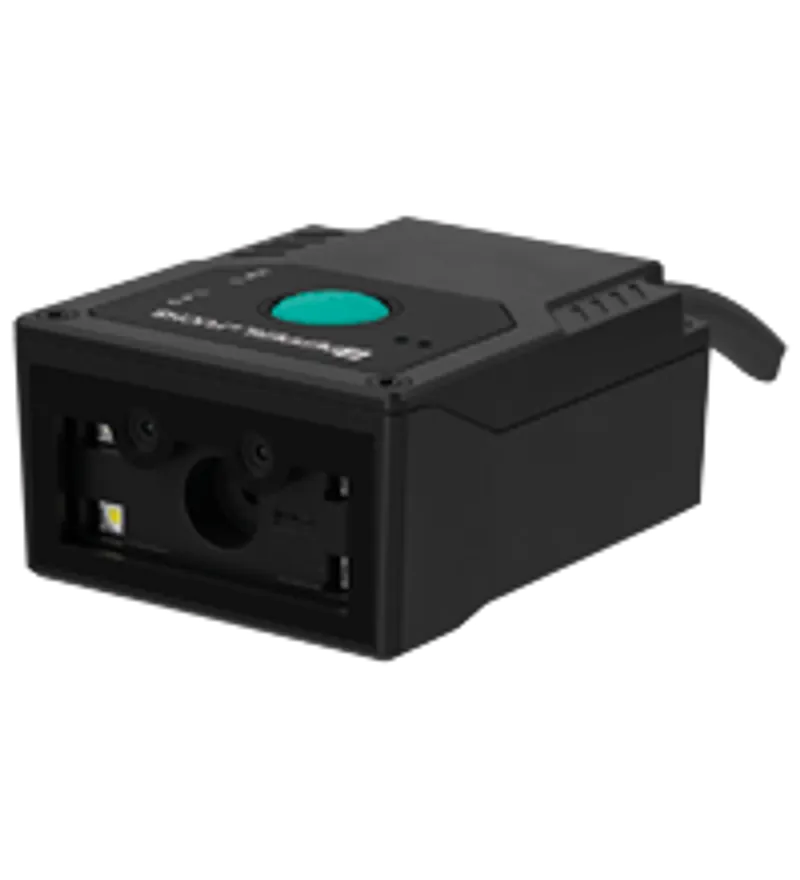

What is the Pepperl Fuchs VOI1100-F330-4MM-R2?
Reads all standard 1-D and 2-D codes
Reads DPM codes
Reading at object speed up to 3.5 m/s
Reads from reflective surfaces
Easy alignment with LED and laser aiming pattern
Automatic reading by motion detection
Trigger button
Simple parameterization using control codes
Stationary code reader for all common 1-D barcodes and 2-D codes (including DataMatrix and QR codes); RS-232 data transmission
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70177498 |
| Light type | white LED |
| Readable codes | 1-D: Code128, Code93, Code39, Code 49, Code11, EAN-8/-13, UPC-A/-E, Interleaved 2 of 5, Codabar, Plessy, MSI-Plessy, GS1-128, GS1-Databar, ISBN, AIM 128, Industrial 25, ISBT128, Postal codes Data Matrix, QR-Code, Micro QR-Code, PDF417, Micro PDF 417, Aztec, Maxicode, Code GM, Code One |
| Scan rate | 60 s-1 |
| Depth of focus | 50 ... 230 mm (Data Matrix code with 0.25 mm module size) 55 ... 460 mm (EAN 13 with 0.33 mm bar width) |
| Reading field | Horizontal: 51° Vertical: 32° |
| Target velocity | max. 3.5 m/s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS |
| Camera: Number of pixels | 1280 x 800 pixels |
Indicators/operating means
| Control elements | 1 Button for manual triggering |
| LED 1 | Power LED |
| LED 2 | Good-read LED |
| Target marker | Green LED bar |
Electrical specifications
| Operating voltage | 5 V DC ± 5 % UB |
| Operating current | 258.5 mA (typically) , 400 mA ( max ) IB |
| Supply | Power supply |
Interface
| Interface type | RS-232 |
Conformity
| Photobiological safety | Risk group 0 according to IEC 62471 |
Approvals and certificates
| CE conformity | yes |
| FCC approval | Complies with Part 15 of the FCC regulations for a Class B device and the EMC Directive for a Class B device and therefore bears the CE mark. |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 5 ... 95 % non-condensing |
Mechanical specifications

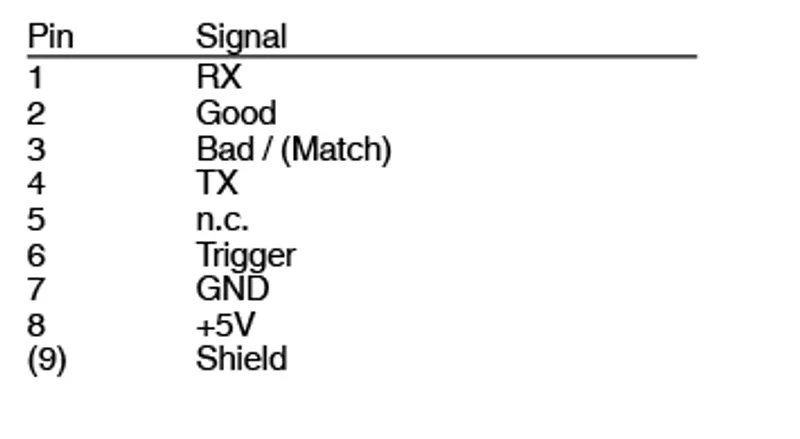

| Connection type | 8-pin, M12 x 1 connector |
| Degree of protection | IP54 |
| Material: Housing | PC/ABS |
| Material: Optical face | Plastic pane |
| Cable: Length | 2 m L |
| Mass | approx. 56 g |
| Dimensions: Height | 24.3 mm |
| Dimensions: Width | 41.5 mm |
| Dimensions: Depth | 49.5 mm |
No matching specifications
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
VOI1100-F330-4MM-R2: frequently asked questions
When can VOI1100-F330-4MM-R2 be shipped?
VOI1100-F330-4MM-R2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOI1100-F330-4MM-R2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOI1100-F330-4MM-R2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOI1100-F330-4MM-R2, subject to availability and destination.
