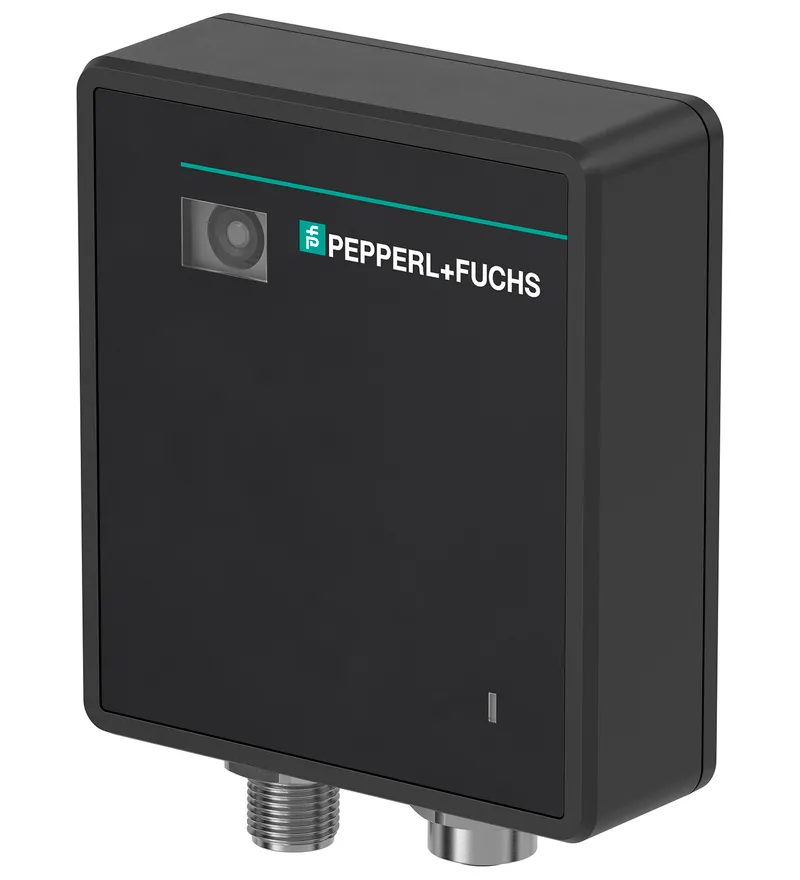

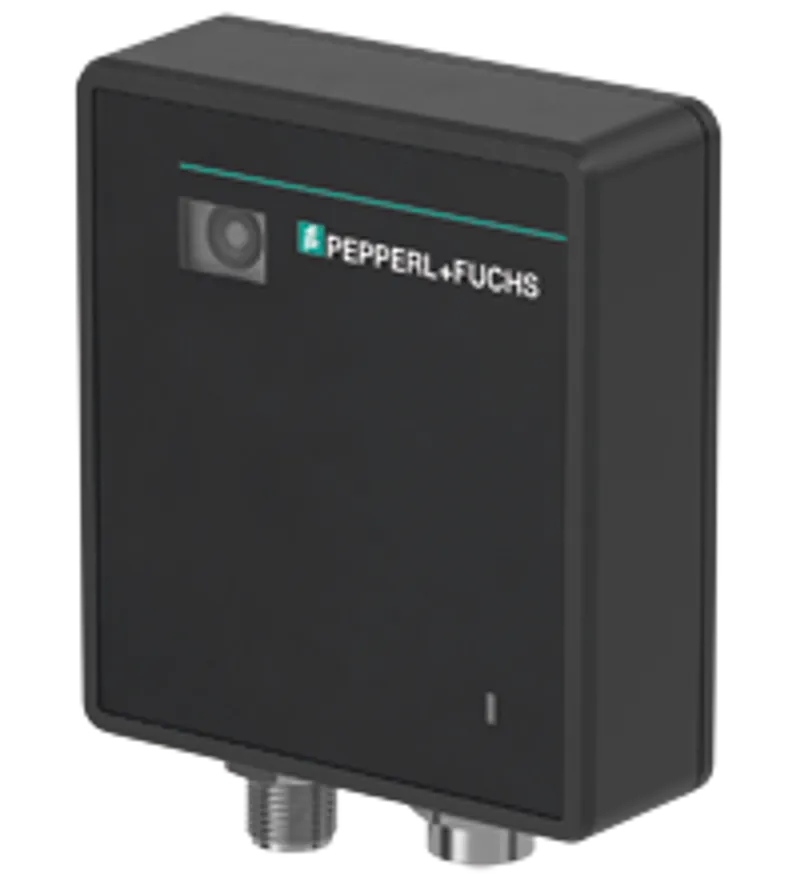

Pepperl Fuchs VOC12M-F356-B12-V1D-CR2P – Industrial Event Camera
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Precision Positioning |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VOC12M-F356-B12-V1D-CR2P be shipped?
VOC12M-F356-B12-V1D-CR2P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VOC12M-F356-B12-V1D-CR2P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VOC12M-F356-B12-V1D-CR2P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VOC12M-F356-B12-V1D-CR2P, subject to availability and destination.
• Web interface for easy access to image and video files and livestream, including simultaneous display of up to 10 camera feeds
• Video ring buffer with a pre-run buffer for automatic recording of video up to 900 seconds before and after a situation that requires fault analysis or documentation
• Versatile recording triggering via UDP, REST API, hardware input, or automatically in response to motion, brightness changes, camera acceleration, or events from other cameras
• Find situations of interest quickly due to timestamped events
• REST API for full HMI integration of all camera functions
• Precise image control through digital zoom and targeted masking of irrelevant image areas
• Blurring of faces for improved data protection
• Precise person recognition for targeted detection
Event camera for recording video sequences with Livestream function.
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70192832 |
| Depth of focus | 0.1 m ... infinite |
| Field of view | see table |
| Focal length | 2.75 mm |
| Aperture | F2.2 |
| Horizontal angle of view | 102 ° |
| Vertical angle of view | 67 ° |
| Filter | IR-filter |
| Recording duration | 900 s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS |
| Camera: Chip size | 7.4 mm diagonal |
| Camera: Shutter | Rolling shutter |
| Camera: Aspect ratio | 16:9 |
Hardware
| Camera: Image capture resolution | 4608x2592 ( 12 MP ) |
| Camera: Video recording resolution | 1920x1080 (Full HD) |
| Camera: Focus | Motorized focus (adjustable via software) Autofocus |
Memory
| Type/Size | eMMC / 24 GByte |
Electrical specifications
| Operating voltage | 18 ... 28 V DC UB |
| Internal input fuse | 1.5 AT |
| Power consumption | max. 12 W Digital output Low P0 |
Interface
| Interface type | 10 BASE-T/100 BASE-TX |
| Protocol | TCP/IP , HTTP / HTTPS , FTP , RTSP |
| Transfer rate | 10 MBit/s / 100 MBit/s |
| Cable length | max. 100 m |
| IP address | DHCP activated , Fall back IP (192.168.100.50 |
Input
| Signal voltage: High | 16 ... 32 V DC |
| Signal voltage: Low | 0 ... 5 V DC |
| Input current | max. 7 mA |
| Trigger input | positive edge |
Output
| Current | max. 200 mA Ie |
| Voltage | < 0.2 ... 0.3 V ( low ) |
| Protective function | short circuit protection |
Directive conformity
| Electromagnetic compatibility | EN 61326-1:2013 |
| Radio equipment: Directive 2014/53/EU | ETSI EN 300330 V2.1.1 |
| WEEE: Directive 2012/19/EU | WEEE compliant |
| RoHS: Directive 2011/65/EU (RoHS) | RoHS compliant |
Conformity
| Shock resistance | EN 60068-2-27:2009 |
Playback formats
| Video | Video Livestream:- Codec/Container: H264/WebRTC - frame rate: 3 ... 24 fps - resolution: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360 RTSP Stream:- Codec/Container: H264/RTSP - frame rate: 3 ... 24 fps - resolution: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360 Video Recording:- Codec/Container: H264/MP4, adjustable quality - frame rate: 3 ... 24 fps - resolution: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360 |
Ambient conditions
| Operating temperature | -30 ... 50 °C (-22 ... 122 °F) |
| Storage temperature | -30 ... 50 °C (-22 ... 122 °F) |
| Relative humidity | non-condensing |
Mechanical specifications
| Degree of protection | IP65 |

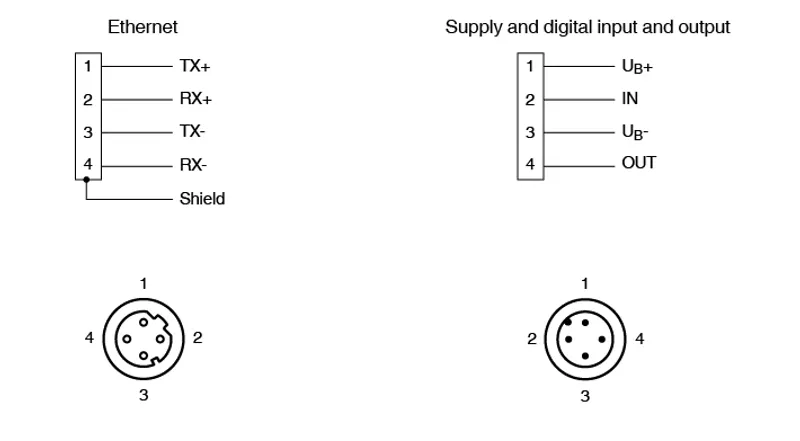

| Connection | M12 x 1 connector, 4-pin, A-coded , unshielded (supply and digital input) M12 x 1 socket, 4-pin, D-coded , screened (Ethernet) |
| Material: Housing | Die-cast aluminum alloy ( GD-AlSi12 ) |
| Material: Surface | black , powder coated |
| Material: Observation window | glass, fully bonded |
| Mass | 0.25 kg |

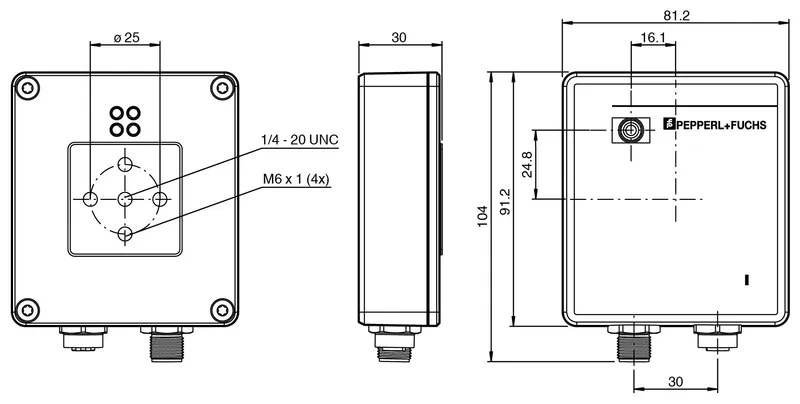

| Dimensions: Height | 104 mm |
| Dimensions: Width | 81.2 mm |
| Dimensions: Depth | 30 mm |
| Mounting | 4x M6 1x ¼-20 UNC |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VOC12M-F356-B12-V1D-CR2P | |
| Manual | PDF · 5.4 MB |
CAD & dimension drawings
| 3-D model (STEP) VOC12M-F356-B12-V1D-CR2A | STP · 4.7 MB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 53 kB |
More Pepperl Fuchs parts

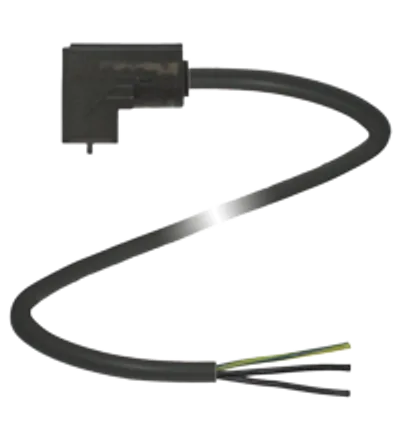

Available on requestValve Connector Cordset VMCI-2+P/Z2-2M-PVCAvailable on requestValve Connector Cordset VMCI-2+P/Z2-5M-PUR

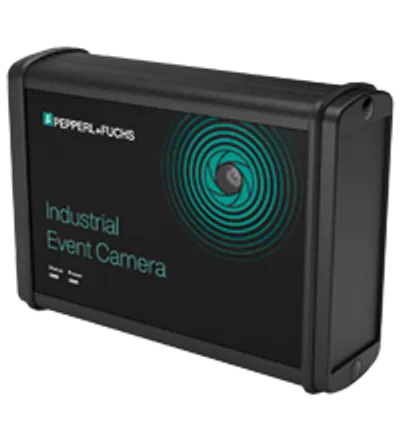

Available on requestIndustrial Event Camera VOC10M-F256-B12-V1D-CR03
Available on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2AAvailable on requestIndustrial Event Camera VOC12M-F356-B12-V1D-CR2SAvailable on requestIndustrial Event Camera VOC5M-F256-B12-V1D-CR02

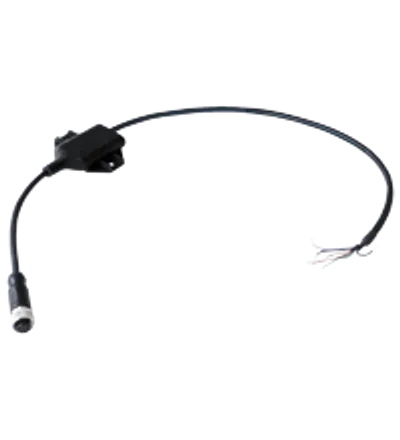

Available on requestConverter Connection Cable VOI-F331-24V

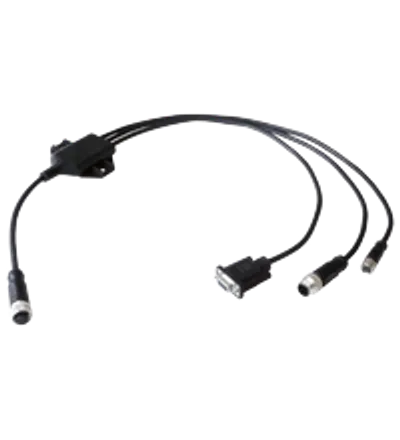

Available on requestConverter Connection Cable VOI-F331-24V-DB9
