Pepperl Fuchs ShieldScan Glas Door Set – Accessory DGE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ShieldScan Glas Door Set be shipped?
ShieldScan Glas Door Set is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ShieldScan Glas Door Set in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ShieldScan Glas Door Set and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan Glas Door Set, subject to availability and destination.

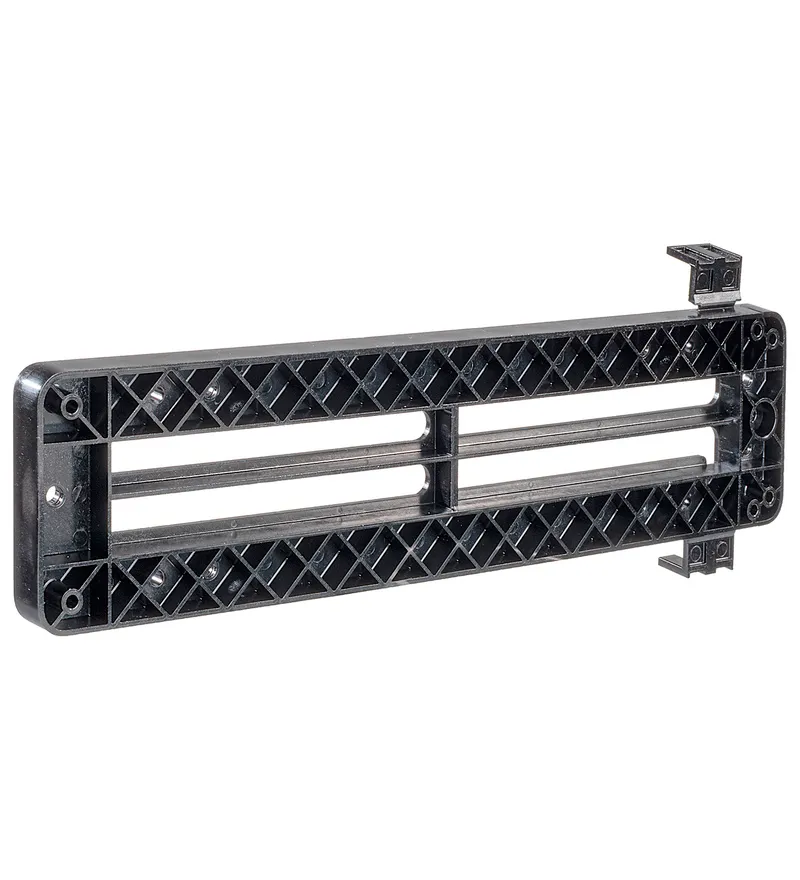

Mounting kit for installation on glass doors
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 70137094 |
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |

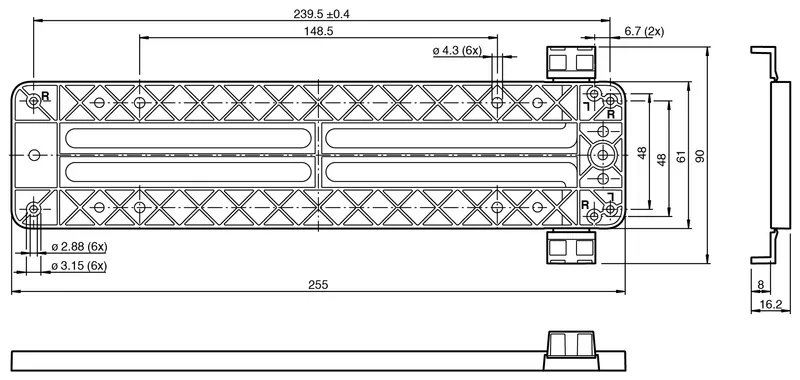

Mechanical specifications
| Material | Polycarbonate (PC) |
| Mass | 59.8 g |
| Dimensions: Height | 16.2 mm |
| Dimensions: Width | 90 mm |
| Dimensions: Length | 255 mm |
General information
| Scope of delivery | Connection cable , Cable protection cover , Self-adhesive sensor mounting |
Suitable series
| Series | ShieldScan |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ShieldScan Glas Door Set |
More Pepperl Fuchs parts
Available on requestAccessory DGE ShieldScan Connection Cable
Available on requestAccessory DGE ShieldScan Cover black
Available on requestAccessory DGE ShieldScan Cover silver

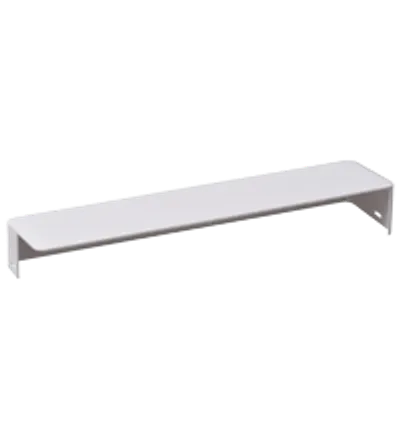

Available on requestAccessory DGE ShieldScan Cover white
