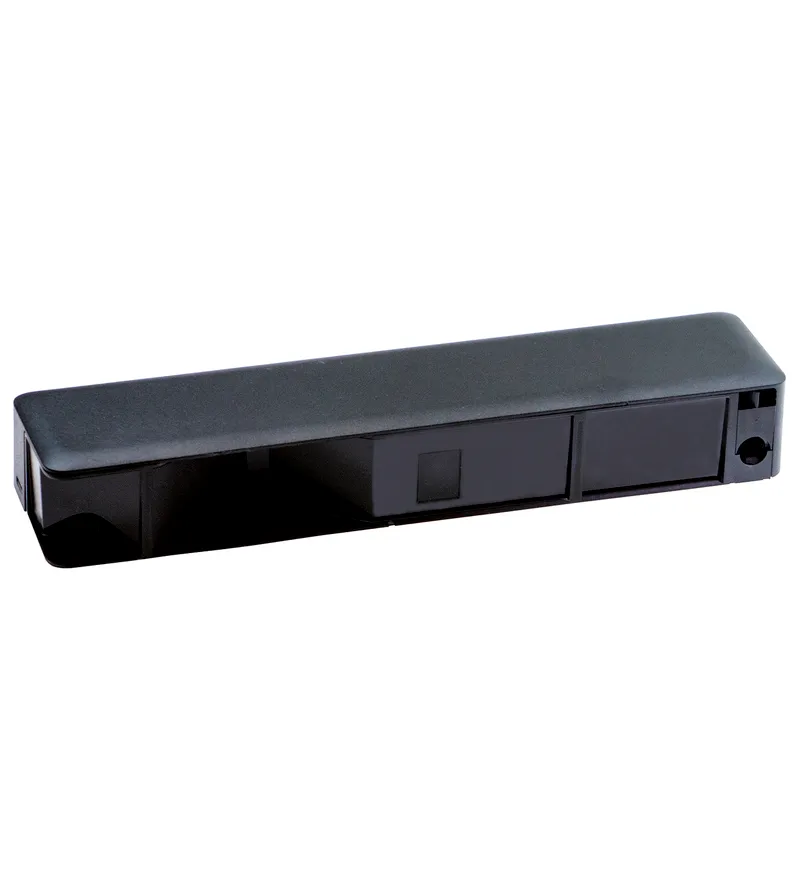

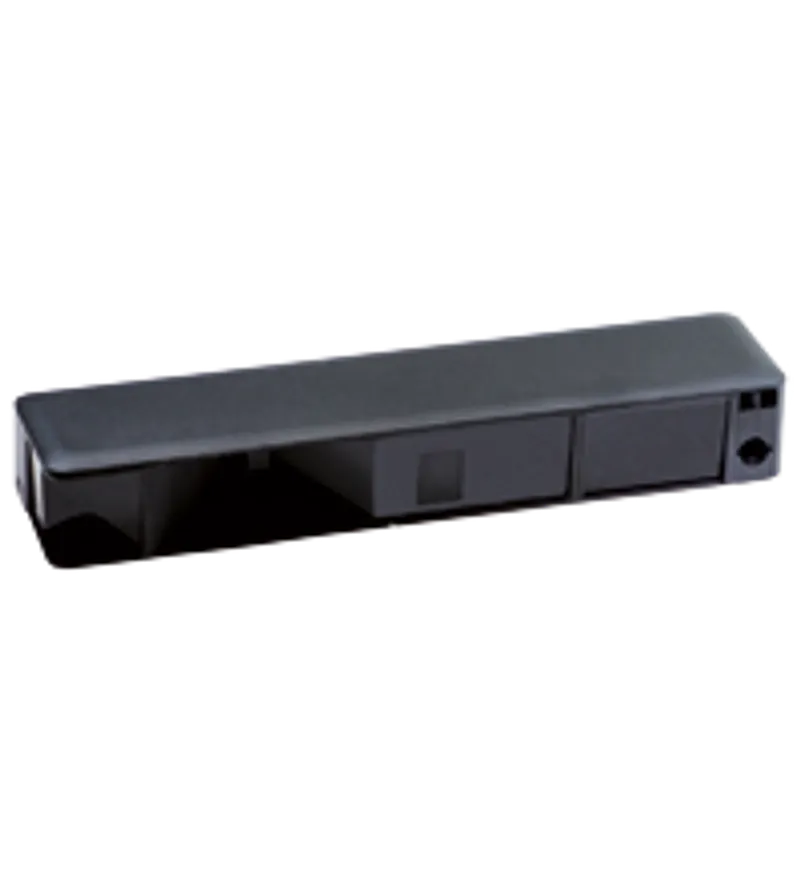

Solid-state scanner with time-of-flight technology ShieldScan-3M-SC black — photo 2 of 3

Solid-state scanner with time-of-flight technology ShieldScan-3M-SC black — photo 3 of 3

Available on request

Pepperl Fuchs ShieldScan-3M-SC black – Solid-state scanner with time-of-flight technology

MPN: ShieldScan-3M-SC black · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Automatic Doors and Access Systems
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ShieldScan-3M-SC black be shipped?

ShieldScan-3M-SC black is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ShieldScan-3M-SC black in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ShieldScan-3M-SC black and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan-3M-SC black, subject to availability and destination.

• Solid-state scanner with time-of-flight technology for reliable and silent operation in all ambient conditions

• Optimal beam geometry for maximum door safety

• Solid-state scanner for all conventional swing doors

• Virtual-wall function for hiding non-relevant areas

• Plug-and-play corner mounting with IP65 degree of protection

• Puristic, cubic, slim housing for full integration into the door

• One-teach function for simplified commissioning

• Increased pinch protection at the hinge edge

• SC: semiconductor (NPN/PNP)

• Image and drawing are generic for this device type and may deviate from the specific variant

Solid-state scanner with time-of-flight technology for reliable and silent operation in all ambient conditions, Optimal beam geometry for maximum door safety, Solid-state scanner for all conventional swing doors, Virtual-wall function for hiding non-relevant areas, Plug-and-play corner mounting with IP65 degree of protection, Function: Open and secure, Sensor principle: Solid-state scanner with time-of-flight technology, Operating voltage: 24 V DC +/- 20 %

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70114100-100003
Light source	IRED 850 nm
Number of beams	20
Diameter of the light spot	8 cm at 2000 mm sensor range
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

Safety Integrity Level (SIL)	SIL 2
Performance level (PL)	PL d
Category	Cat. 2
MTTFd	> 100 a
Diagnostic Coverage (DC)	94 %

Indicators/operating means

Function indicator	Status LED red/green/orange Teach-in, errors, switch state LED red: Switch indicator for door hinge side LED green: Switch indicator for hinge opposite side
Control elements	Teach-In key , DIP switch for selection of operating modes

Electrical specifications

Operating voltage	24 V DC +/- 20 % UB
Protection class	III
Power consumption	primary sensor 3.6 W secondary sensor 3.4 W P0

Input

Test input

High at U = 10 V DC ... 30 V DC Low at U = < 2 V DC

Output

Switching type	switching when protection field is clear
Signal output	NPN , PNP , short-circuit protected , switchable
Switching voltage	max. 30 V DC
Switching current	max. 100 mA
Response time	≤ 50 ms with installation height ≤ 2500 mm ≤ 80 ms with installation height > 2500 mm

Conformity

Functional safety	ISO 13849-1 ; EN 61508 part1-4
Product standard	EN 12978 ; EN 16005 ; DIN 18650

Approvals and certificates

TÜV approval

TÜV NORD

Ambient conditions

Ambient temperature	-30 ... 60 °C (-22 ... 140 °F)
Storage temperature	-30 ... 70 °C (-22 ... 158 °F)
Relative humidity	25% ... 95% , non-condensing

Mechanical specifications

Mounting height	1500 ... 2500 mm (0.5 m ... 1.8 m door width) 2500 ... 3000 mm (0.5 m ... 1.6 m door width)
Degree of protection	IP65
Connection	Plug with connection cable , 8-wire
Material: Housing	PC (Polycarbonate)
Material: Optical face	PC (Polycarbonate)
Mass	approx. 500 g (kit)

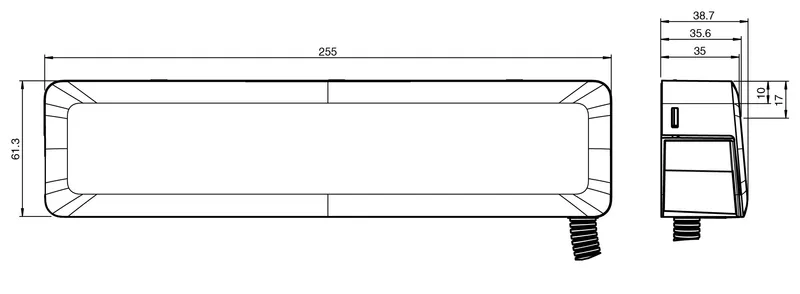

Dimensions: Height	61.3 mm
Dimensions: Depth	38.7 mm
Dimensions: Length	255 mm

Factory settings

Function: DIP switch	switch 1 ON switch 2 ON switch 3 ON switch 4 ON
Function: Adjuster	Adjustment dial: position 6 = installation height 2100 mm

General information

Scope of delivery

Sensor system for hinge side and leading edge side (1 primary sensor and 1 secondary sensor, connecting cable, door transition cable, corrugated hose with wall bracket, 2 x 3 self-tapping screws, drilling template, cable seal with IP65 degree of protection)
