Pepperl Fuchs ShieldScan Spacer Wedge – Accessory DGE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ShieldScan Spacer Wedge be shipped?
ShieldScan Spacer Wedge is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ShieldScan Spacer Wedge in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ShieldScan Spacer Wedge and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan Spacer Wedge, subject to availability and destination.

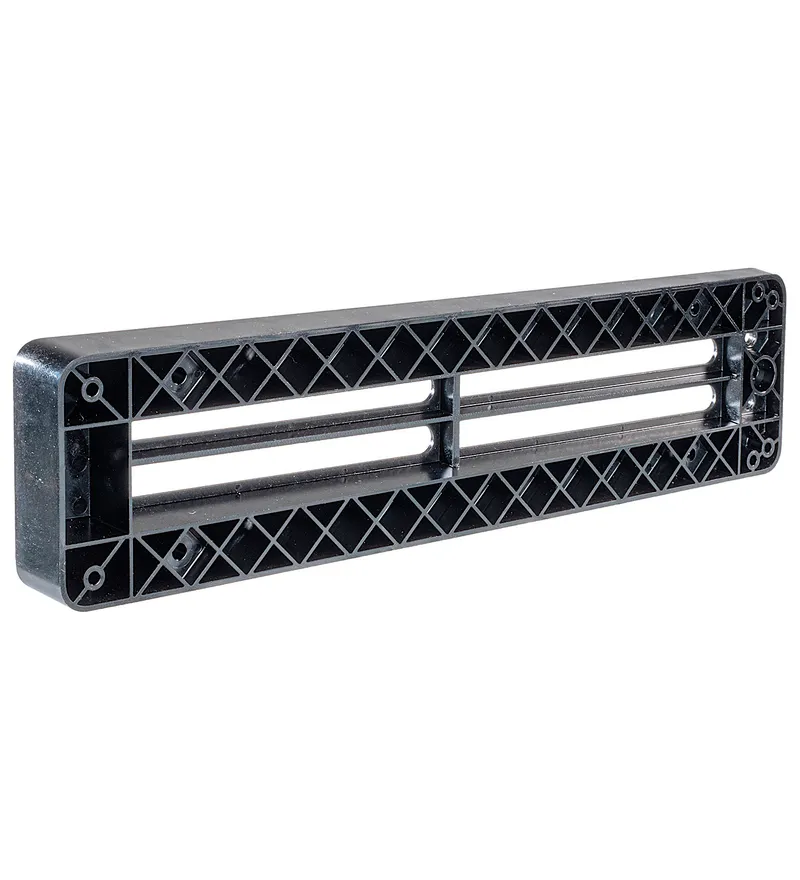

Spacer wedge for adjusting the detection field on doors with protruding handles
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 70169399 |
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Material | Polycarbonate (PC) |
| Mass | 77.1 g |

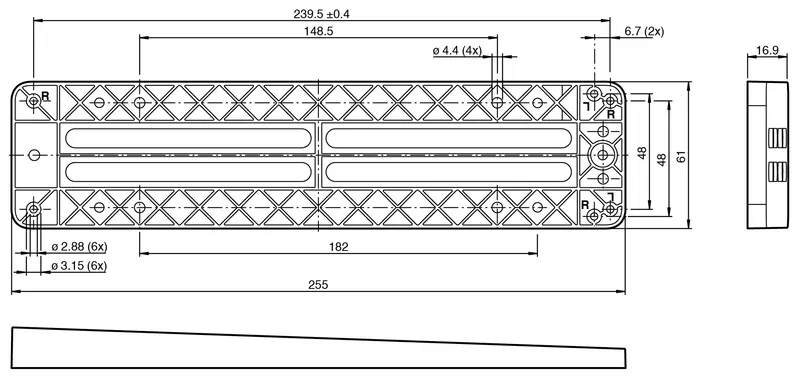

| Dimensions: Height | 16.9 mm |
| Dimensions: Width | 61 mm |
| Dimensions: Length | 255 mm |
General information
| Scope of delivery | 2x spacer wedge 6x screws |
Suitable series
| Series | ShieldScan |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ShieldScan Spacer Wedge |
More Pepperl Fuchs parts
Available on requestAccessory DGE ShieldScan Cover silver
Available on requestAccessory DGE ShieldScan Cover white
Available on requestAccessory DGE ShieldScan Glas Door Set
Available on requestAccessory DGE ShieldScan Spacer Plate
Available on requestAccessory DGE ShieldScan Transfer Loop
Available on requestSolid-state scanner with time-of-flight technology ShieldScan-3M-SC blackAvailable on requestSolid-state scanner with time-of-flight technology ShieldScan-3M-SSR black

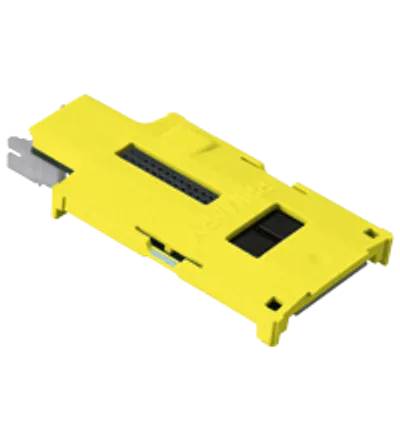

Available on requestAccessory DGE ShieldScan-IOM-SC V1.1
