Pepperl Fuchs ShieldScan Connection Cable – Accessory DGE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ShieldScan Connection Cable be shipped?
ShieldScan Connection Cable is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ShieldScan Connection Cable in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ShieldScan Connection Cable and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan Connection Cable, subject to availability and destination.

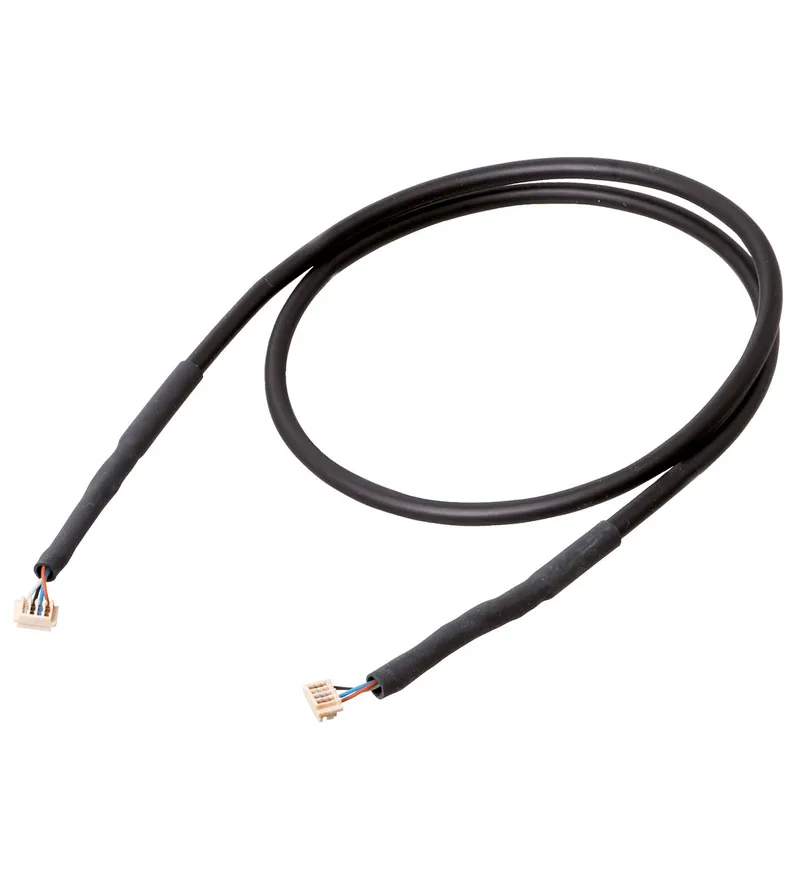

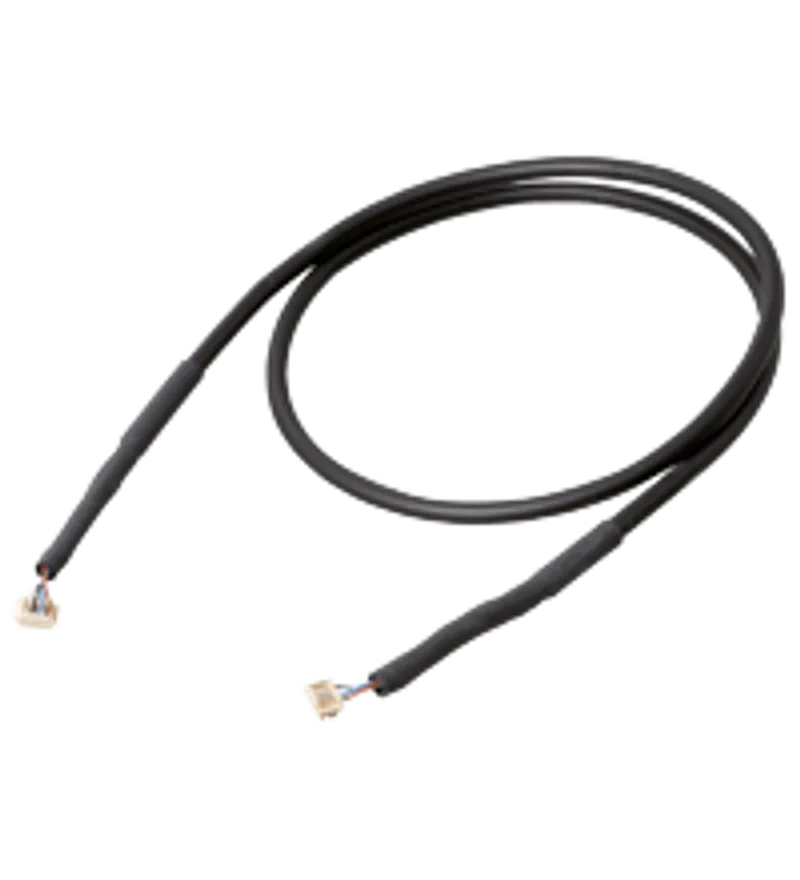

• Connection cable between primary sensor and secondary sensor
Connection cable between primary sensor and secondary sensor, Connection: 2x plug , 4-pin
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 70120464 |
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Connection | 2x plug , 4-pin |
| Cable | PVC , black , 4-wire |
| Sheath diameter | approx. 3.5 mm |
| Bending radius | min. 23 mm |

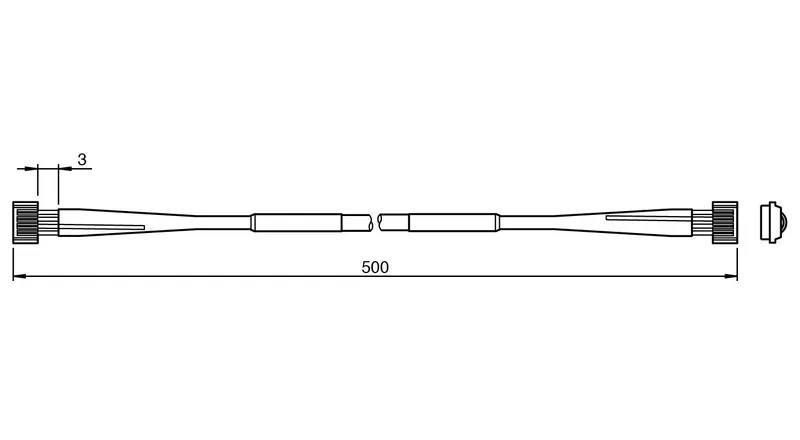

| Length | 500 mm L |
| Mass | approx. 8 g |
| Mounting | thru-holes min. Ø 8 mm |
Suitable series
| Series | ShieldScan |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ShieldScan Connection Cable |
More Pepperl Fuchs parts

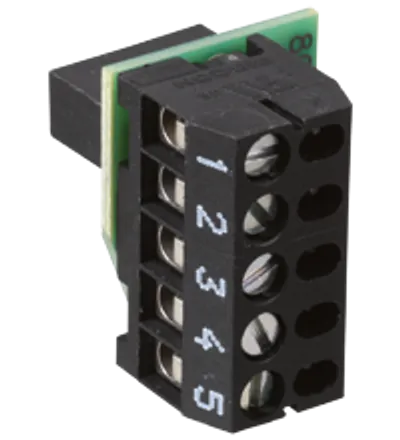

Available on requestAccessory DGE ShieldScan Cable Adapt SSR/NPNAvailable on requestAccessory DGE ShieldScan Cable Adapt SSR/PNP

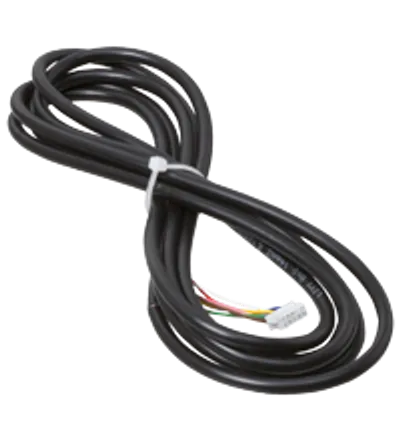

Available on requestAccessory DGE ShieldScan Cable DoorAvailable on requestAccessory DGE ShieldScan Cable Door Hal-free

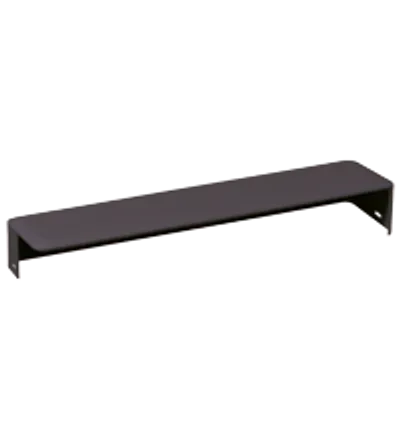

Available on requestAccessory DGE ShieldScan Cover black

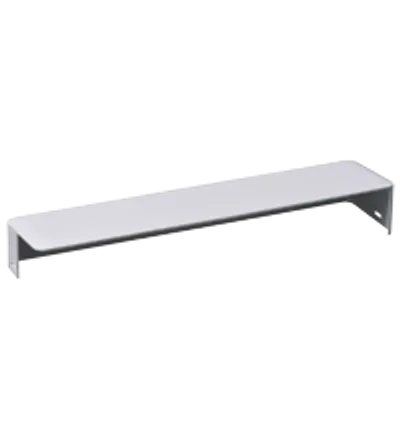

Available on requestAccessory DGE ShieldScan Cover silver

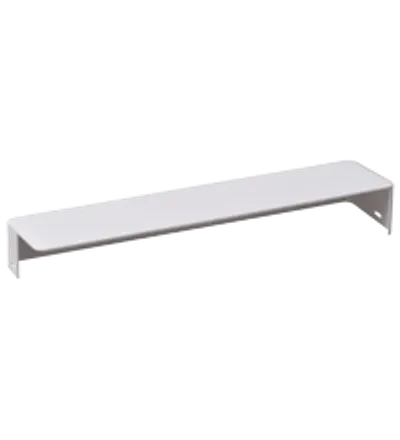

Available on requestAccessory DGE ShieldScan Cover white

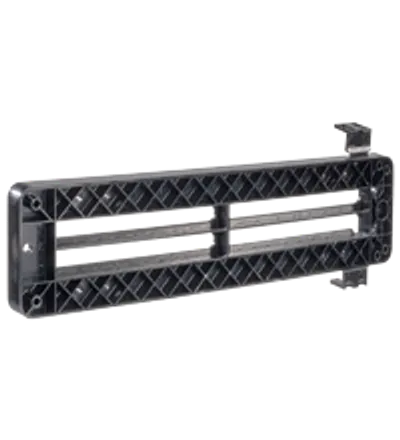

Available on requestAccessory DGE ShieldScan Glas Door Set
