Pepperl Fuchs ShieldScan Transfer Loop – Accessory DGE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ShieldScan Transfer Loop be shipped?
ShieldScan Transfer Loop is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ShieldScan Transfer Loop in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ShieldScan Transfer Loop and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ShieldScan Transfer Loop, subject to availability and destination.
Connection: plug 10-pin
Specifications
Ambient conditions
| Order code (Pepperl+Fuchs part number) | 70120467 |
| Ambient temperature | -30 ... 80 °C (-22 ... 176 °F) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Length | total length 2500 mm corrugated hose 660 mm L |
| Diameter | External diameter: approx. 11.2 mm corrugated hose |
| Connection | plug 10-pin |
| Material | corrugated hose : PC (Polycarbonate) Wall bracket : PA6 |
| Cable: Sheath diameter | 5.4 mm |
| Cable: Bending radius | > 10 x cable diameter, movable installation |
| Mass | approx. 114 g , total approx. 92 g , Connection cable approx. 5 g , Wall bracket |
General information

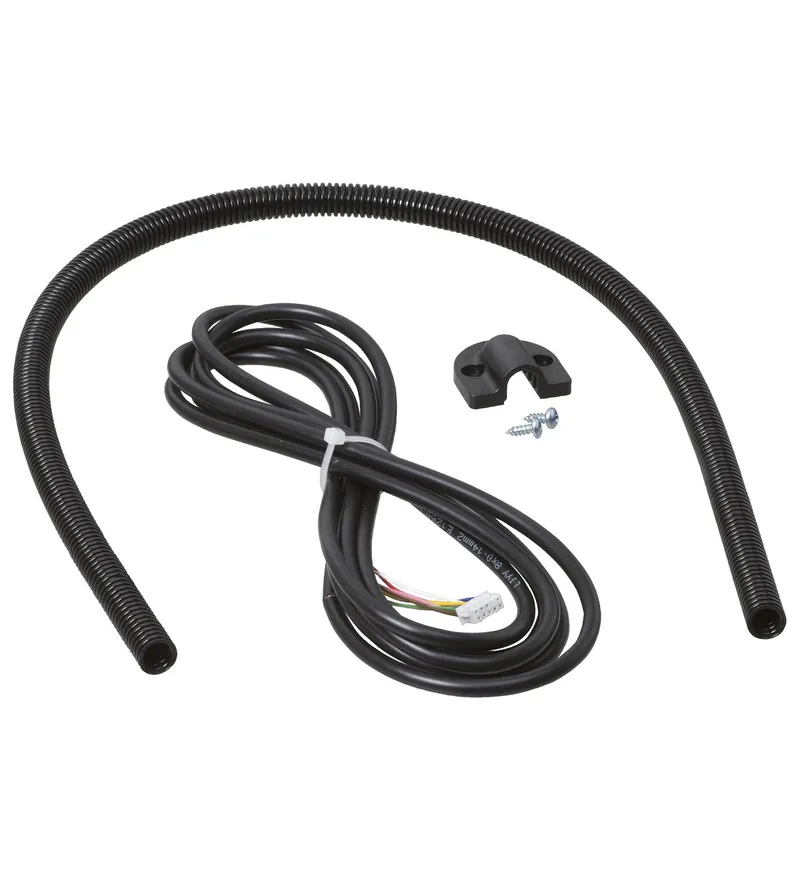

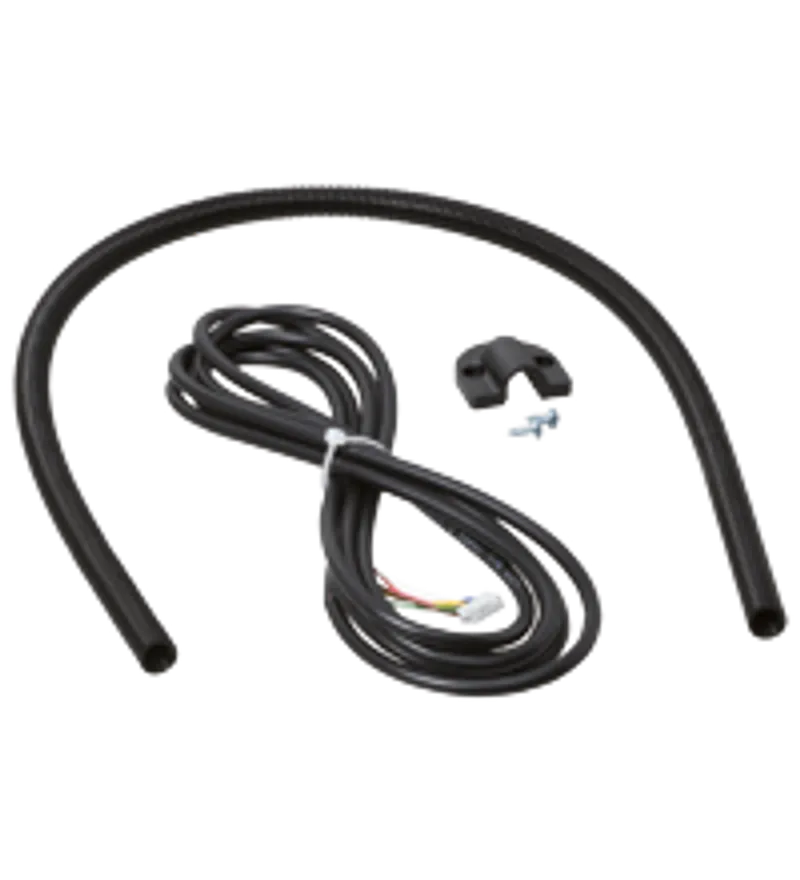

| Scope of delivery | Connection cable , corrugated hose , Wall bracket |
Suitable series
| Series | ShieldScan |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ShieldScan Transfer Loop |
