Pepperl Fuchs PXV100QS-F200-B17-V1D – Optical reading head
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PXV100QS-F200-B17-V1D be shipped?
PXV100QS-F200-B17-V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PXV100QS-F200-B17-V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PXV100QS-F200-B17-V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV100QS-F200-B17-V1D, subject to availability and destination.
• Non-contact positioning on Data Matrix code tape
• Mechanically rugged: no wearing parts, long operating life, maintenance-free
• High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines.
• Quality grade output
• Integrated switch
• Traverse distance up to 100 km
• PROFINET interface

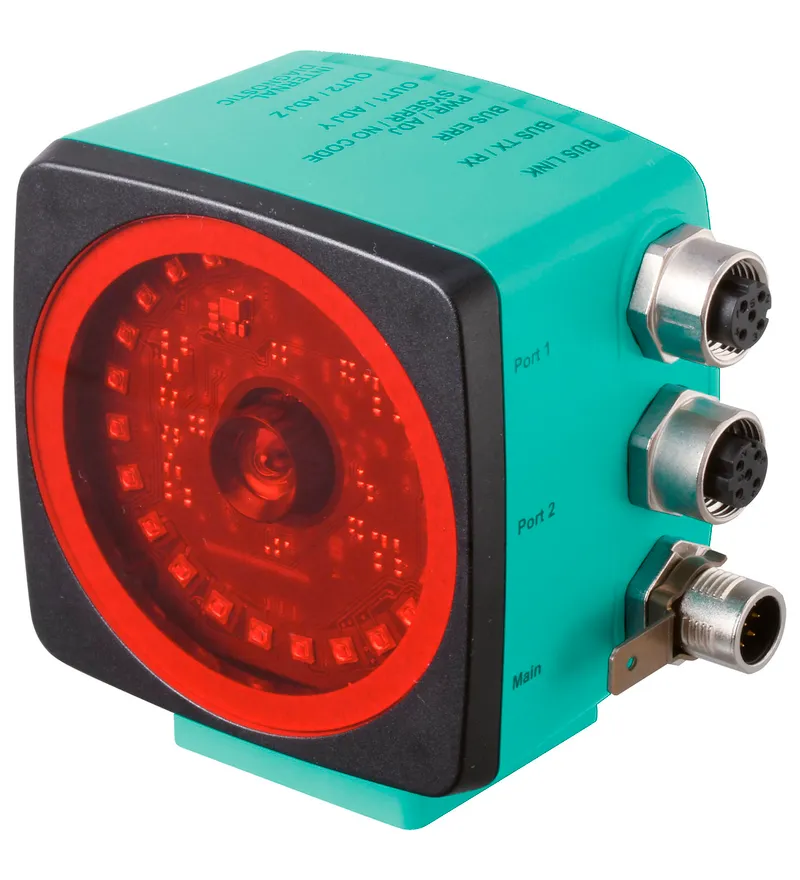

Read head for incident light positioning system, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Quality grade output, Integrated switch, Traverse distance up to 100 km , PROFINET interface
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70185811-100008 |
| Passage speed | ≤ 12.5 m/s v |
| Maximum track length | max. 100000 m |
| Light type | Integrated LED lightning (red) |
| Evaluation frequency | 100 s-1 |
| Latency | 20 ms |
| Read distance (z) | 100 mm |
| Reading tolerance in z-direction | ± 50 mm |
| Field of view | 125 mm x 95 mm (for z = 100 mm) |
| Reading tolerance in y-direction | ± 35 mm (for z = 100 mm) |
| Ambient light limit | 100000 Lux |
| Accuracy x-position | ± 0.2 mm (for z = 100 mm) |
| Accuracy y-position | ± 0.2 mm (for z = 100 mm) |
| Angle accuracy | ± 1 ° (for z = 100 mm) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS , Global shutter |
Functional safety related parameters
| MTTFd | 78 a |
Indicators/operating means
| LED indication | 7 LEDs (communication, status messages) |
Electrical specifications
| Operating voltage | 15 ... 30 V , PELV UB |
| No-load supply current | max. 400 mA I0 |
| Power consumption | 6 W (at no-load) P0 |
Interface
| Interface type | 100 BASE-TX |
| Protocol | PROFINET IO Real-Time (RT) , Conformance class B , Netload Class III |
| Process data | Position data (x, y) , z-distance , angle , speed (bi-directional) , status data , frame counter , quality index , warning , event marker number , number of detected codes |
| Transfer rate | 100 MBit/s |
Service interface
| Interface | TCP/IP |
Input
| Number | 1 |
| Input type | 0 level: unswitched or -UB ... +7 V1 level: +13 V ... +UB |
| Input impedance | ≥ 30 kΩ |
Output
| Number | 3 |
| Output type | PNP |
| Switching voltage | Operating voltage |
| Switching current | 100 mA each output |
Conformity
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Photobiological safety | exempt group according to EN 62471:2008 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure |
Ambient conditions
| Operating temperature | 0 ... 50 °C (32 ... 122 °F) , -20 ... 50 °C (-4 ... 122 °F) (non-condensing; prevent icing on the lens!) |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |
Mechanical specifications

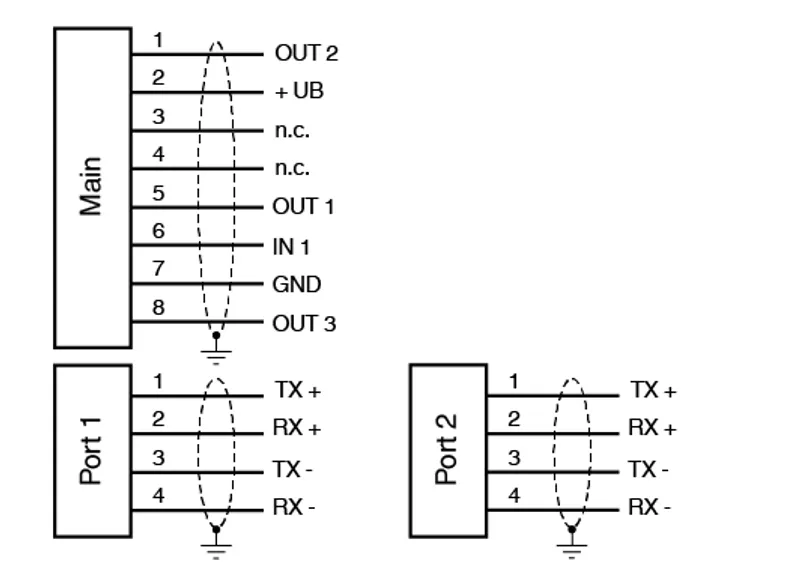

| Connection type | 8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) |
| Degree of protection | IP67 |
| Material: Housing | PC/ABS |
| Mass | approx. 200 g |
| Dimensions: Height | 80 mm |
| Dimensions: Width | 84.5 mm |
| Dimensions: Depth | 50 mm |
Factory settings
| Orientation | 0 ° / 180 ° |
| Resolution x-position | 1 mm |
| Resolution y-position | 1 mm |
| Angle resolution | 1 ° |
| Speed resolution | 0.1 m/s |
| Input data source | Protocol |
| X-offset | 0 mm |
| Angle offset | 0 ° |
| Behaviour in case of missing x-position data | Substitute value 0 |
| Behaviour in case of missing y-position data | Substitute value 0 |
| Behaviour in case of missing angle data | Substitute value 0 |
| Behaviour in case of missing speed data | Substitute value 32767 |
| Extrapolation | Extrapolation off |
| Marker position | Event marker instead of code tape |
| Input 1 (IN1) | No function |
| Output 1 (OUT1) | No function |
| Output 2 (OUT2) | No function |
| Output 3 (OUT3) | No function |
