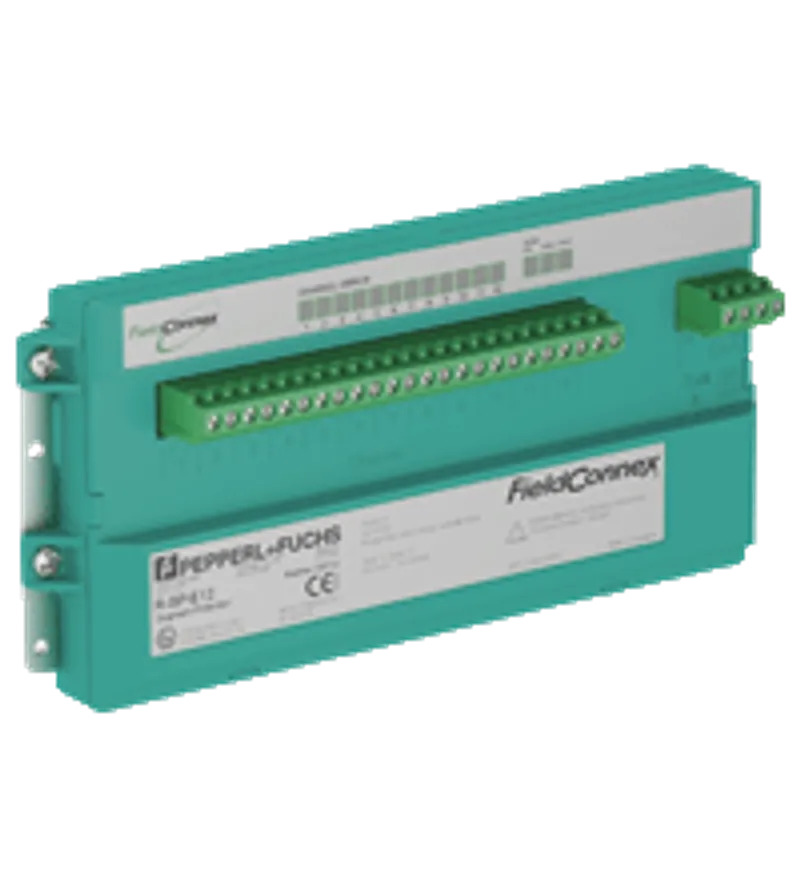

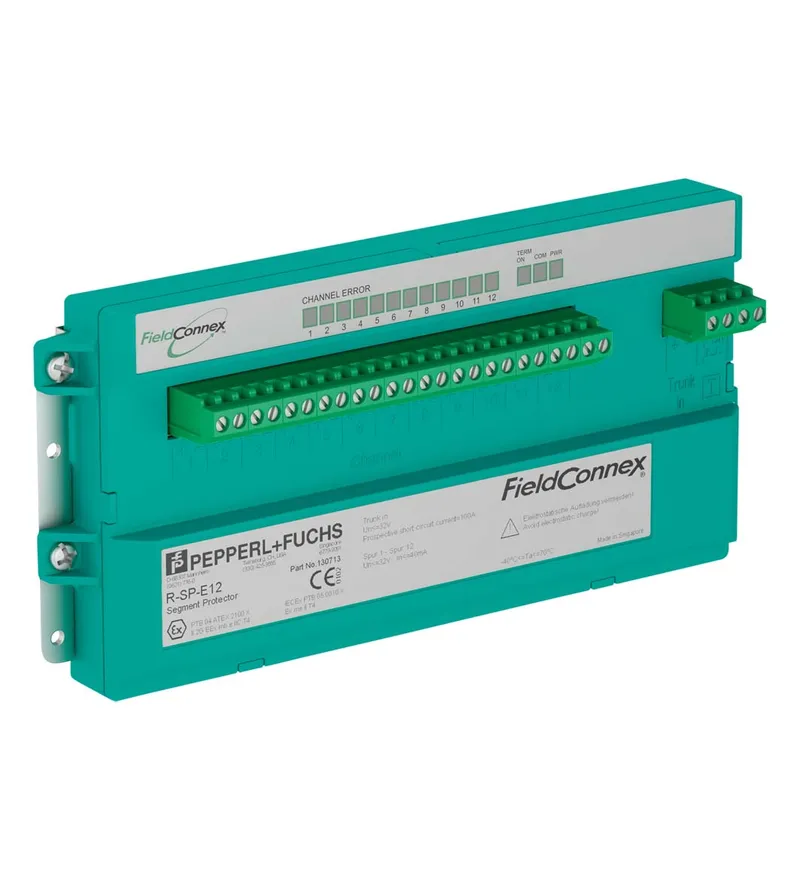

Pepperl Fuchs R-SP-E12
Segment Protector
- MPN
- R-SP-E12
- Category
- Segment Protectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs R-SP-E12?
12 increased safety outputs (Ex e)
Short circuit current limitation per output
Segment Protector in Zone 1/Div. 2
Instruments in Zone 1/Div. 1
For FOUNDATION Fieldbus H1 and PROFIBUS PA
High power on trunk and spurs
Segment protector, junction box for fieldbus with short-circuit protection, Field junction box, module for DIN rail mounting, 12 increased safety outputs (Ex e), Short circuit current limitation per output, Segment Protector in Zone 1/Div. 2, Instruments in Zone 1/Div. 1, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, Europe, Device coupler location: Zone 1 - high-power trunk, Instrument location / spur protection: Zone 1 - increased safety, Function: Device coupler
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 130713 |
| Design / Mounting | Cabinet installation |
| Installation in hazardous area | Zone 1 / Div. 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Fieldbus connection
| Power dissipation | 250 mW |
| Main cable (Trunk): Cable entry type | screw terminal , fixed |
| Main cable (Trunk): Rated voltage | 9 ... 32 V DC |
| Outputs: Number of outputs | 12 |
| Outputs: Cable entry type | screw terminal , fixed |
| Outputs: Rated voltage | max. 32 V |
| Outputs: Rated current | max. 40 mA |
| Outputs: Short-circuit current | max. 52 mA |
| Self current consumption | max. 9 mA |
| Voltage drop main cable/outputs | max. 1.3 V |
| Terminating resistor | selectable 100 Ω integrated |
| Surge protection | trunk, spurs overvoltage protected if voltage exceeds typ. 39 V, max. 41 V |
Indicators/operating means
| LED PWR | green: Fieldbus voltage > 10 V |
| LED CHANNEL ERROR | red flashing: short-circuit |
| LED COM | yellow: bus activity |
| LED TERM ON | yellow: termination activated |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Standard conformity
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 5 g , 10 ... 150 Hz |
Mechanical specifications
| Connection type | screw terminal , fixed |
| Core cross section | max. 2.5 mm2 / AWG 12-24 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 800 g |
| Dimensions: Height | 100 mm |
| Dimensions: Width | 216 mm |
| Dimensions: Depth | 50 mm |
| Mounting | DIN rail mounting |
| Coating | resin filled |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 04 ATEX 2100 X |
| Marking | II 2 G Ex eb mb IIC T4 Gb |
| Maximum values: Rated voltage | ≤ 35 V |
| Maximum values: Prospective short-circuit current | 100 A |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN 60079-18:2015+A1:2017 |
International approvals
| IECEx approval: IECEx certificate | IECEx PTB 05.0010X |
| IECEx approval: IECEx marking | Ex eb mb IIC T4 Gb |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
R-SP-E12: frequently asked questions
When can R-SP-E12 be shipped?
R-SP-E12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R-SP-E12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R-SP-E12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R-SP-E12, subject to availability and destination.
