Pepperl Fuchs PXV100Q-F213-IO-0.3M-V15 – Optical reading head
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Camera-Based Linear Positioning |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PXV100Q-F213-IO-0.3M-V15 be shipped?
PXV100Q-F213-IO-0.3M-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PXV100Q-F213-IO-0.3M-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PXV100Q-F213-IO-0.3M-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV100Q-F213-IO-0.3M-V15, subject to availability and destination.
• Traverse distance up to 100 km
• IO-Link interface
• Mechanically rugged: no wearing parts, long operating life, maintenance-free
• Non-contact positioning on Data Matrix code tape
• High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines.
• Output of code quality
Read head for incident light positioning system, Traverse distance up to 100 km , IO-Link interface, Mechanically rugged: no wearing parts, long operating life, maintenance-free, Non-contact positioning on Data Matrix code tape, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Output of code quality
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70122726-100012 |
| Passage speed | ≤ 12.5 m/s v |
| Maximum track length | max. 100000 m |
| Light type | Integrated LED lightning (red) |
| Evaluation frequency | 40 s-1 |
| Latency | 50 ms |
| Read distance (z) | 100 mm |
| Reading tolerance in z-direction | ± 30 mm |
| Field of view | 120 mm x 80 mm (for z = 100 mm) |
| Reading tolerance in y-direction | ± 30 mm (for z = 100 mm) |
| Ambient light limit | 100000 Lux |
| Accuracy x-position | ± 0.2 mm (for z = 100 mm) |
| Accuracy y-position | ± 0.2 mm (for z = 100 mm) |
| Angle accuracy | ± 1 ° (for z = 100 mm) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS , Global shutter |
Functional safety related parameters
| MTTFd | 135 a |
Indicators/operating means
| LED indication | 2 LEDs (communication, status) |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , PELV UB |
| No-load supply current | max. 200 mA I0 |
| Power consumption | 3 W (at no-load) P0 |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1.5 |
| Device profile | Identification and Diagnosis - I&D Firmware update |
| Process data | Position data (x, y) , z-distance , angle , speed (bi-directional) , status data , frame counter , quality index , warning , event marker number , number of detected codes |
| SIO mode support | no |
| Compatible master port type | Class A |
Input
| Number | 0 ... 2 , programmable |
| Input type | 0 level: unswitched or -UB ... +7 V1 level: +13 V ... +UB |
| Input impedance | ≥ 30 kΩ |
Output
| Number | 0 ... 2 , programmable |
| Output type | Push/pull , PNP , NPN , programmable |
| Switching voltage | Operating voltage |
| Switching current | 100 mA each output |
Conformity
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Photobiological safety | exempt group according to EN 62471:2008 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |
Mechanical specifications
| Connection type | 5-pin, M12 x 1 connector |
| Degree of protection | IP54 |
| Material: Housing | PC/ABS |
| Material: Cable | PVC |
| Cable: Sheath diameter | 4.8 mm |
| Cable: Bending radius | 48 mm |
| Cable: Strain relief | 60 N |
| Cable: Length | 0.3 m L |
| Mass | approx. 125 g |

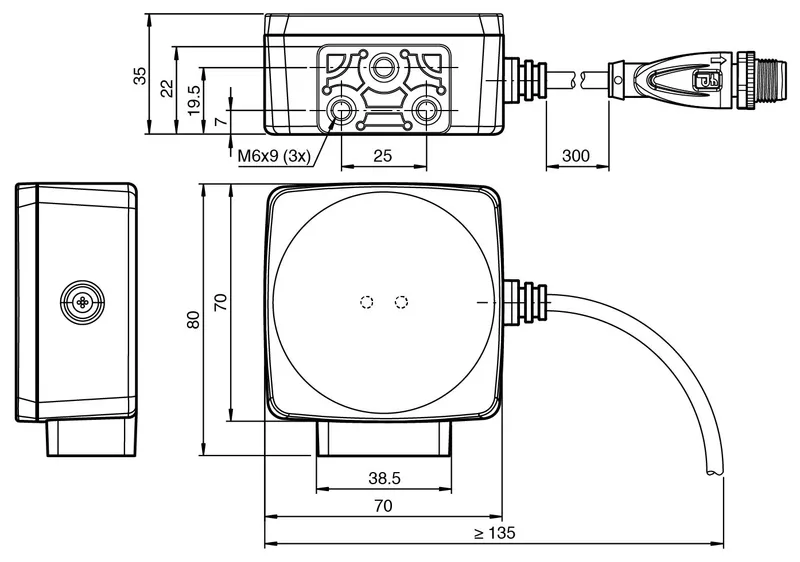

| Dimensions: Height | 80 mm |
| Dimensions: Width | 70 mm |
| Dimensions: Depth | 35 mm |
Factory settings
| Orientation | 0 ° / 180 ° |
| Resolution x-position | 1 mm |
| Resolution y-position | 1 mm |
| Angle resolution | 0.1 ° |
| Speed resolution | 0.01 m/s |
| Input data source | Protocol |
| X-offset | 0 mm |
| Angle offset | 0 ° |
| Behaviour in case of missing x-position data | Substitute value 0 |
| Behaviour in case of missing y-position data | Substitute value 0 |
| Behaviour in case of missing angle data | Substitute value 0 |
| Behaviour in case of missing speed data | Substitute value 0 |
| Extrapolation | Linear extrapolation |
| Marker position | Event marker instead of code tape |

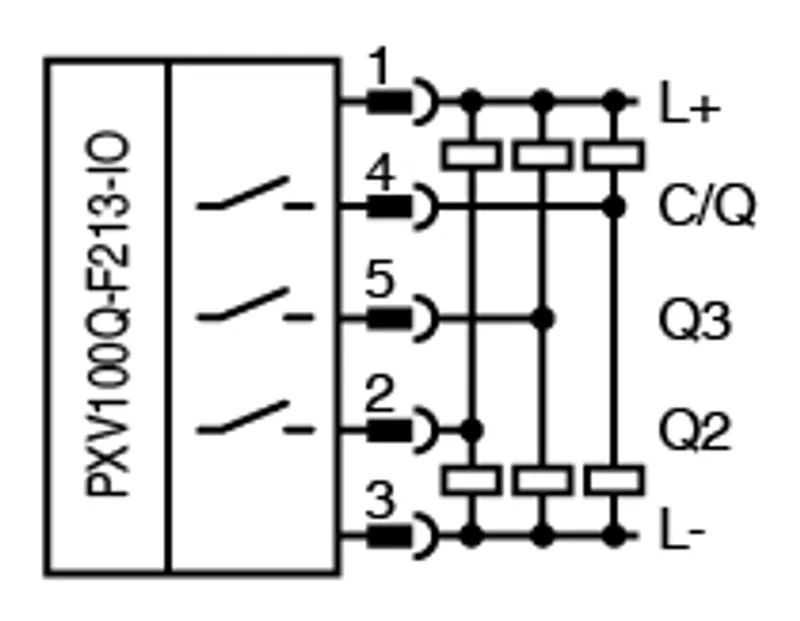

| Q2 | No function , high impedance |
| Q3 | No function , high impedance |
