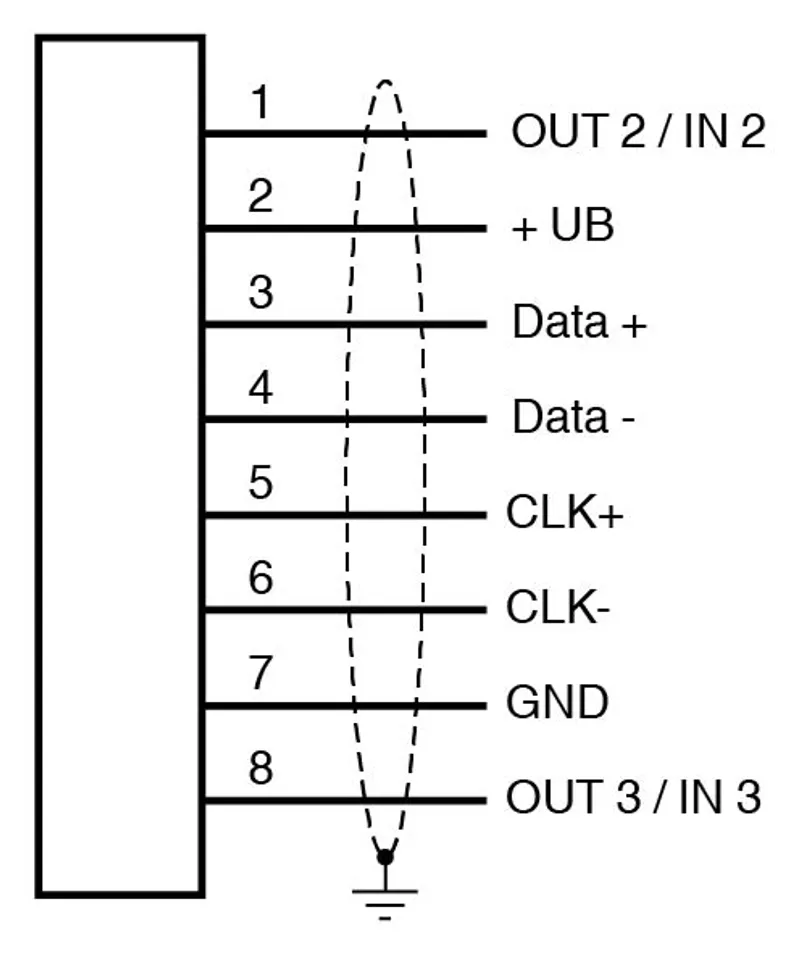

Optical reading head PXV100Q-F213-SSI-0.3M-V19 — photo 4 of 4

Available on request

Pepperl Fuchs PXV100Q-F213-SSI-0.3M-V19 – Optical reading head

MPN: PXV100Q-F213-SSI-0.3M-V19 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can PXV100Q-F213-SSI-0.3M-V19 be shipped?

PXV100Q-F213-SSI-0.3M-V19 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PXV100Q-F213-SSI-0.3M-V19 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PXV100Q-F213-SSI-0.3M-V19 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV100Q-F213-SSI-0.3M-V19, subject to availability and destination.

• Mechanically rugged: no wearing parts, long operating life, maintenance-free

• Non-contact positioning on Data Matrix code tape

• SSI interface

• High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines.

• Internal flash

Read head for incident light positioning system, Mechanically rugged: no wearing parts, long operating life, maintenance-free, Non-contact positioning on Data Matrix code tape, SSI interface, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Internal flash

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70122726-100013
Passage speed	≤ 12.5 m/s v
Maximum track length	max. 100000 m
Light type	Integrated LED lightning (red)
Evaluation frequency	40 s-1
Latency	50 ms
Read distance (z)	100 mm
Reading tolerance in z-direction	± 30 mm
Field of view	120 mm x 80 mm (for z = 100 mm)
Reading tolerance in y-direction	± 30 mm (for z = 100 mm)
Ambient light limit	100000 Lux
Accuracy x-position	± 0.2 mm (for z = 100 mm)
Accuracy y-position	± 0.2 mm (for z = 100 mm)
Lifecycle	Active (current Pepperl+Fuchs product)

Nominal ratings

Camera: Type

CMOS , Global shutter

Functional safety related parameters

MTTFd

97 a

Indicators/operating means

LED indication

2 LEDs (communication, status)

Electrical specifications

Operating voltage	15 ... 30 V DC , PELV UB
No-load supply current	max. 200 mA I0
Power consumption	3 W (at no-load) P0

Interface

Interface type	SSI interface
Data output code	Gray code, binary code , programmable
Process data	Position data (x, y) , speed (bi-directional) , status data , warning
Query cycle time	≥ 3 ms
Clock frequency	100 ... 1000 kHz
Monoflop time	Tm = 10 µs
Pause time	≥ 20 µs double request possible, if tp ≤ 10 µs tp

Service interface

Interface

UART 115,200 baud

Input

Number	0 ... 2 , programmable
Input type	0 level: unswitched or -UB ... +7 V1 level: +13 V ... +UB
Input impedance	≥ 30 kΩ

Output

Number	0 ... 2 , programmable
Output type	Push/pull , PNP , NPN , programmable
Switching voltage	Operating voltage
Switching current	100 mA each output

Conformity

Shock resistance	EN 60068-2-27:2009
Vibration resistance	EN 60068-2-6:2008
Emitted interference	EN 61000-6-4:2007+A1:2011
Noise immunity	EN 61000-6-2:2005
Photobiological safety	exempt group according to EN 62471:2008

Approvals and certificates

CE conformity	CE
UL approval	cULus Listed, Class 2 Power Source, Type 1 enclosure
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Operating temperature	0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	90 % , non-condensing

Mechanical specifications

Connection type	8-pin, M12 x 1 connector
Degree of protection	IP54
Material: Housing	PC/ABS
Material: Cable	PVC
Cable: Sheath diameter	6.2 mm
Cable: Bending radius	37 mm
Cable: Strain relief	60 N
Cable: Length	0.3 m L
Mass	approx. 200 g
Dimensions: Height	80 mm
Dimensions: Width	70 mm
Dimensions: Depth	35 mm

Factory settings

SSI coding	digital
Data content	X-Position (22 Bit), Status (3 Bit)
Orientation	0 ° / 180 °
Resolution x-position	1 mm
Resolution y-position	1 mm
Speed resolution	0.1 m/s
X-offset	0 mm
Behaviour in case of missing x-position data	Substitute value 0
Behaviour in case of missing y-position data	Substitute value 0
Behaviour in case of missing speed data	Substitute value 2147483647
Extrapolation	Linear extrapolation
Marker position	Event marker instead of code tape
Output 2 (OUT2)	PP, Quality Values (Threshold 4)
Output 3 (OUT3)	No function
