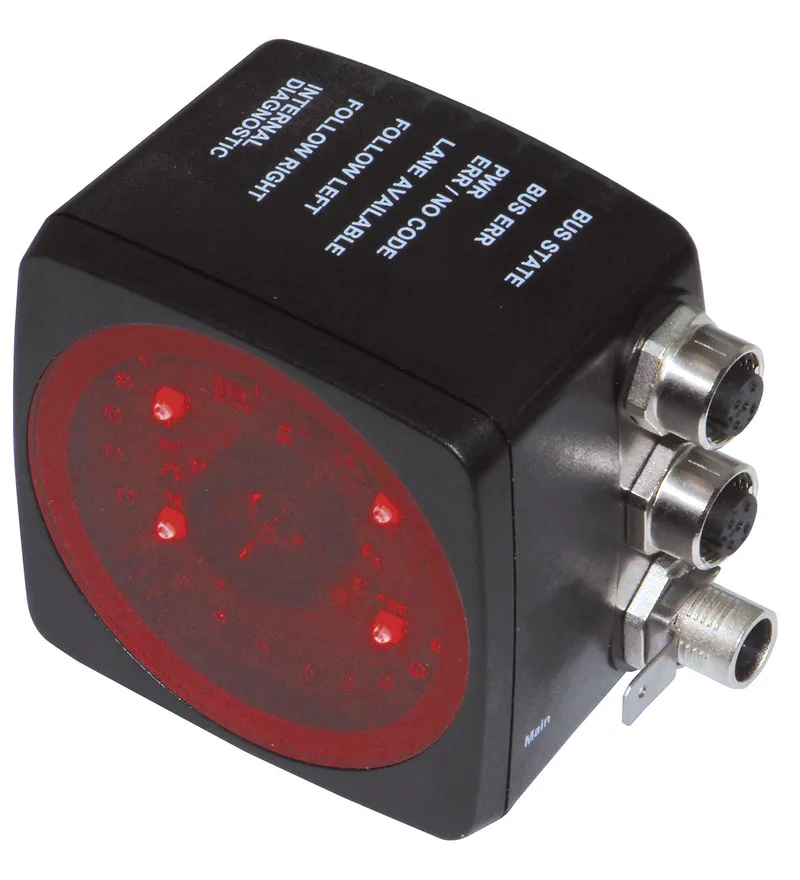

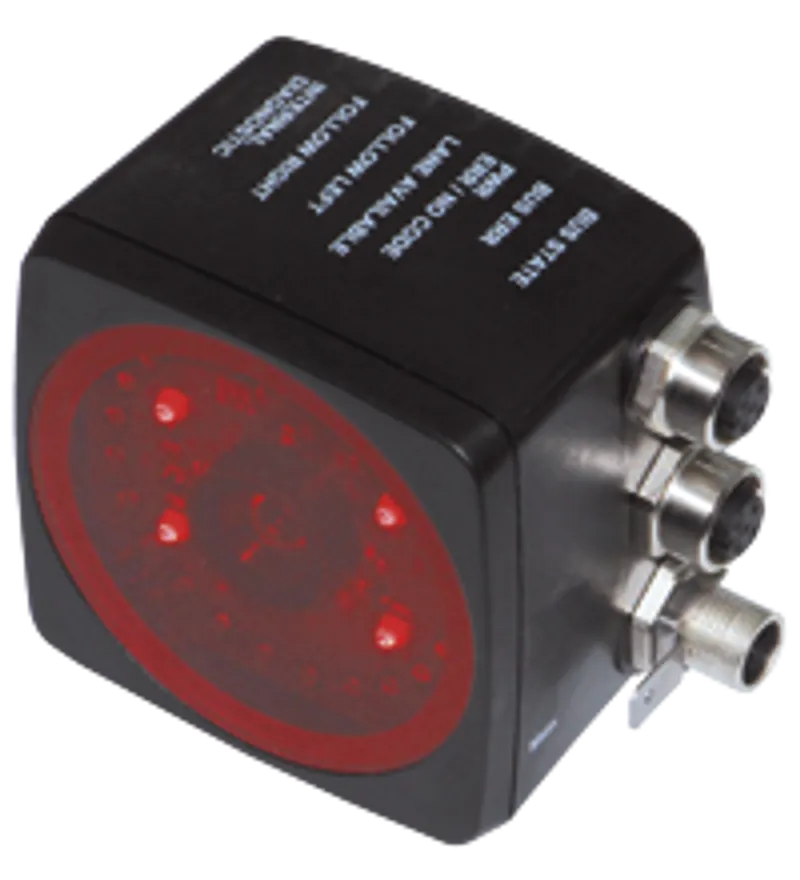

Pepperl Fuchs PXV100I-F200-B25-V1D – Optical reading head
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PXV100I-F200-B25-V1D be shipped?
PXV100I-F200-B25-V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PXV100I-F200-B25-V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PXV100I-F200-B25-V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV100I-F200-B25-V1D, subject to availability and destination.
• EtherNet/IP
• Non-contact positioning on Data Matrix code tape
• Mechanically rugged: no wearing parts, long operating life, maintenance-free
• High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines.
• Integrated switch
• Travel ranges up to 10 km
Read head for incident light positioning system, EtherNet/IP, Non-contact positioning on Data Matrix code tape, Mechanically rugged: no wearing parts, long operating life, maintenance-free, High resolution and precise positioning, especially for facilities with curves and switch points as well as inclines and declines., Integrated switch, Travel ranges up to 10 km
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 293431-100010 |
| Passage speed | ≤ 8 m/s v |
| Measuring length | max. 10000 m |
| Light type | Integrated LED lightning , infrared |
| Scan rate | 40 s-1 |
| Read distance | 100 mm |
| Depth of focus | ± 50 mm |
| Reading field | 115 mm x 73 mm |
| Ambient light limit | 100000 Lux |
| Accuracy | ± 0.2 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Camera: Type | CMOS , Global shutter |
| Processor: Clock pulse frequency | 600 MHz |
| Processor: Speed of computation | 4800 MIPS |
| Processor: Digital resolution | 32 Bit |
Functional safety related parameters
| MTTFd | 82 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| LED indication | 7 LEDs (communication, alignment aid, status information) |
Electrical specifications
| Operating voltage | 15 ... 30 V DC , PELV UB |
| No-load supply current | max. 400 mA I0 |
| Power consumption | 6 W P0 |
Interface
| Interface type | 100 BASE-TX |
| Protocol | EtherNet/IP |
| Transfer rate | 100 MBit/s |
Interface 2
| Interface type | USB Service |
Input
| Input type | 1 funtion input 0-level: -UBor unwired 1-level: +8 V ... +UB , programmable |
| Input impedance | ≥ 27 kΩ |
Output
| Output type | 1 to 3 switch outputs , programmable , short-circuit protected |
| Switching voltage | Operating voltage |
| Switching current | 150 mA each output |
Conformity
| Photobiological safety | exempt group according to EN 62471:2008 |
Standard conformity
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | 0 ... 60 °C (32 ... 140 °F) , -20 ... 60 °C (-4 ... 140 °F) (non-condensing; prevent icing on the lens!) |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Relative humidity | 90 % , non-condensing |

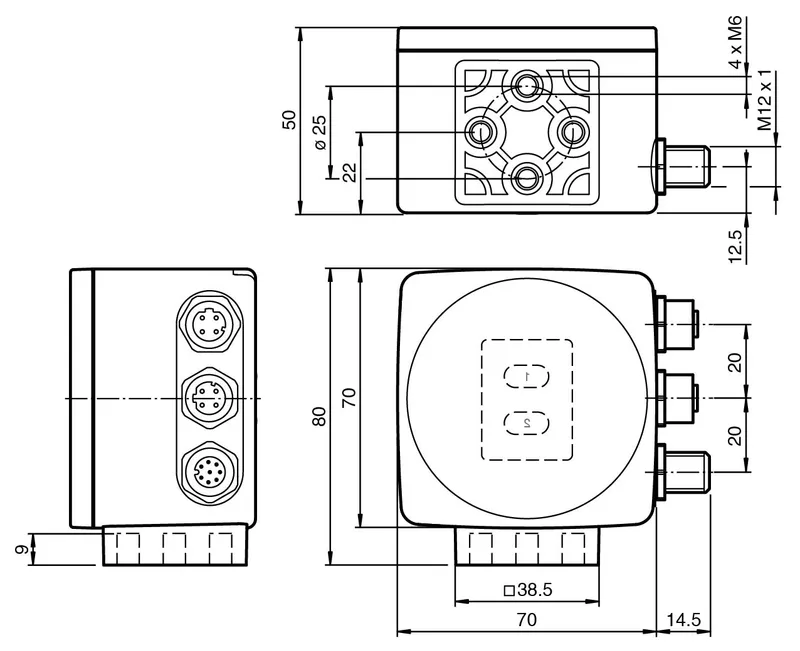

Mechanical specifications

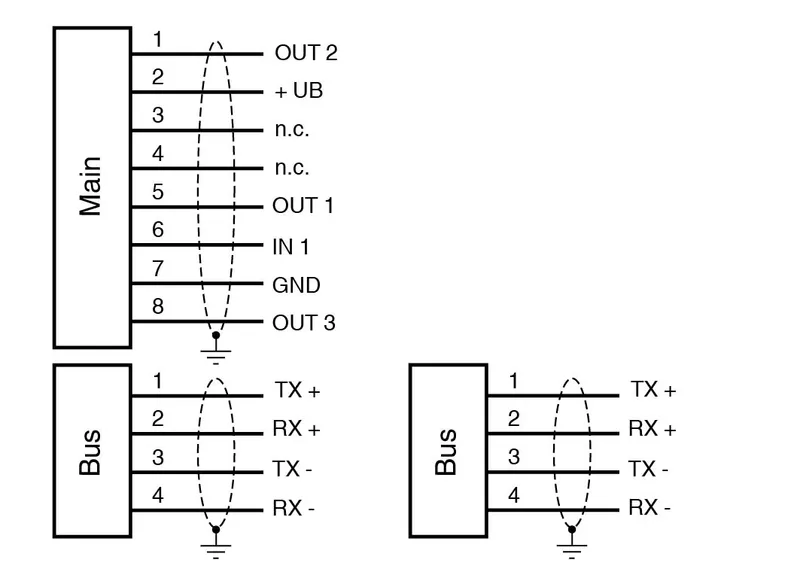

| Connection type | 8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) |
| Degree of protection | IP67 |
| Material: Housing | PC/ABS |
| Mass | approx. 200 g |
| Dimensions: Height | 70 mm |
| Dimensions: Width | 70 mm |
| Dimensions: Depth | 50 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PXV100I-F200-B25-V1D | |
| Manual | PDF · 1.8 MB |
CAD & dimension drawings
| EPLAN macro PXV100I-F200-B25-V1D | EDZ · 321 kB |
| 3-D model (STEP) PCV50-F200-B25-V1D | STP · 4.0 MB |
Certificates (3)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 134 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 107 kB |
| Canada, USA UL Ordinary Location (UL File: E87056, Vol. 6, Sec. 3) | PDF · 287 kB |
More Pepperl Fuchs parts

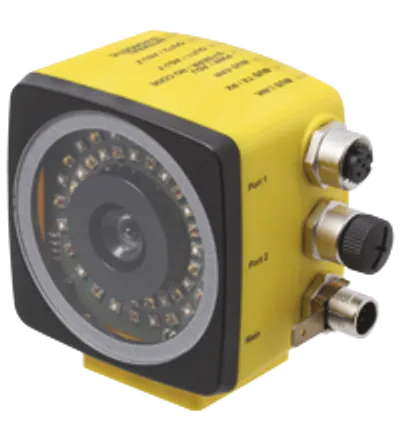

Available on requestOptical reader - safePXV PXV100A-F200-B28-V1D-6011Available on requestOptical reader - safePXV PXV100AQ-F200-B28-V1DAvailable on requestOptical reader - safePXV PXV100AQ-F200-B28-V1D-6011
