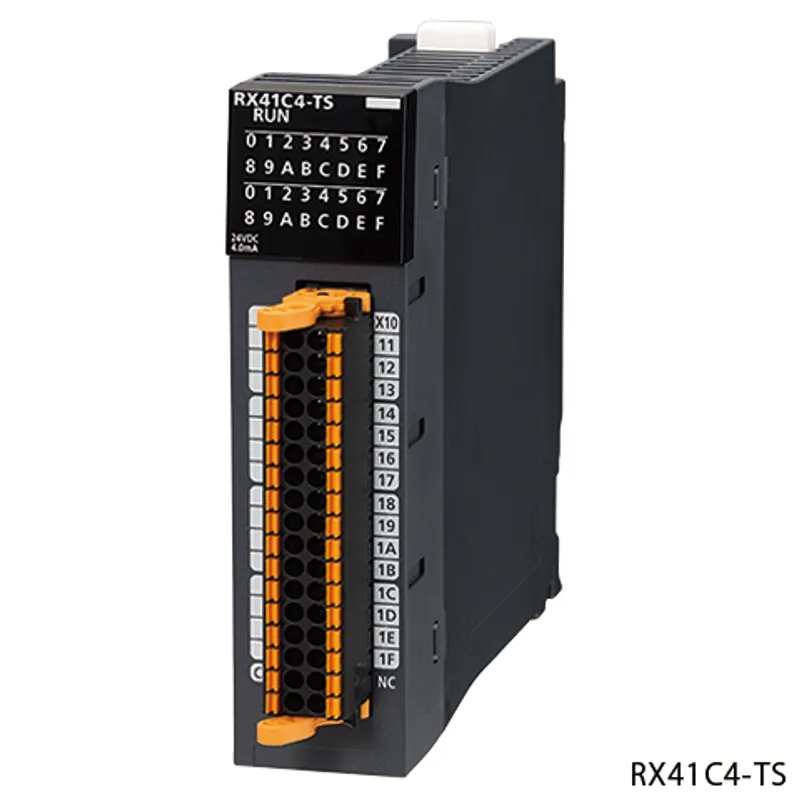

Mitsubishi Electric RX41C4-TS

Mitsubishi MELSEC iQ-R Series Input

MPN
RX41C4-TS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RX41C4-TS?

The Mitsubishi Electric RX41C4-TS is a input in the MELSEC iQ-R Series. DC input: 32 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryInput
TypeDC input (positive/negative common shared)
OutlineDC input: 32 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, spring-clamp terminal block type

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points32 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current4.0 mA TYP. (24 V DC)
ON voltage/ON current19 V or more/3 mA or more
OFF voltage/OFF current6 V or less/1.0 mA or less
Input resistance5.3 kΩ
Input response time: OFF to ON0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF0.2 ms, 0.3 ms, 0.5 ms, 0.7 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement32 points/common
Interrupt functionAvailable (set by module parameters)

Common specifications

Dielectric withstand voltage510 V AC rms for 1 minute
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interfaceTwo-piece spring clamp terminal block
Number of occupied I/O points32 points (I/O assignment: Input 32 points)
Internal current consumption (5 V DC)150 mA
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth129 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RX41C4-TS: frequently asked questions

When can RX41C4-TS be shipped?

RX41C4-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RX41C4-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RX41C4-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RX41C4-TS, subject to availability and destination.
