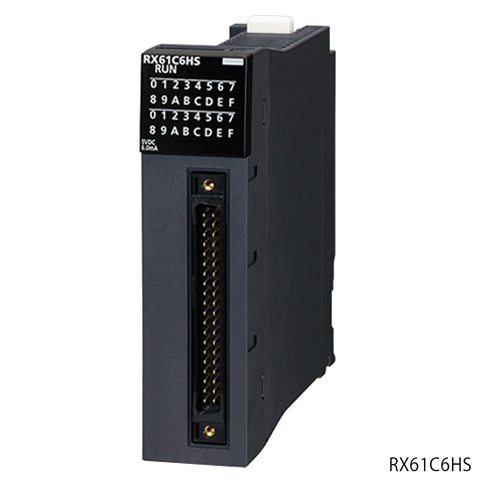

RX61C6HS Mitsubishi MELSEC iQ-R Series Input

MPN: RX61C6HS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – I/O
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RX61C6HS be shipped?

RX61C6HS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RX61C6HS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RX61C6HS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RX61C6HS, subject to availability and destination.

The Mitsubishi Electric RX61C6HS is a input in the MELSEC iQ-R Series. DC input: 32 points, 5 V DC 6 mA, response time: 10/20/50 μs, 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Input
Type	DC input (positive/negative common shared)
Subtype	High-speed input
Outline	DC input: 32 points, 5 V DC 6 mA, response time: 10/20/50 μs, 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector

Input specifications

Input type	DC input (positive/negative shared common type)
Number of input points	32 points
Rated input voltage	5 V DC (ripple ratio: within 5 %) (allowable voltage range: 4.25...6 V DC)
Rated input current	6.0 mA TYP. (5 V DC)
ON voltage/ON current	3.5 V or more/3 mA or more
OFF voltage/OFF current	1 V or less/1 mA or less
Input resistance	600 Ω
Input response time: OFF to ON	1 µs, 10 µs, 20 µs, 50 µs, 0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF	1 µs, 10 µs, 20 µs, 50 µs, 0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement	32 points/common
Interrupt function	Available (set by module parameters)

Common specifications

Dielectric withstand voltage	510 V AC rms for 1 minute
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
External interface	40-pin connector
External interface: Applicable connector	A6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points	32 points (I/O assignment: Input 32 points)
Internal current consumption (5 V DC)	150 mA
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.12 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.
