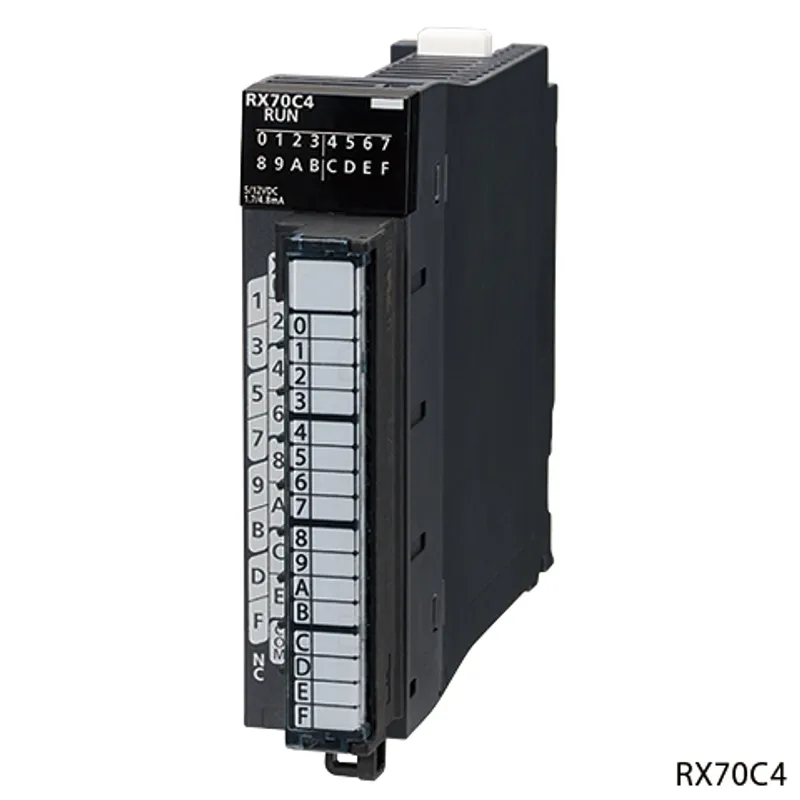

Mitsubishi Electric RX70C4

Mitsubishi MELSEC iQ-R Series Input

MPN
RX70C4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RX70C4?

The Mitsubishi Electric RX70C4 is a input in the MELSEC iQ-R Series. DC input: 16 points, 5/12 V DC 1.7 mA (5 V DC)/4.8 mA (12 V DC), response time: 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 18-point terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryInput
TypeDC input (positive/negative common shared)
OutlineDC input: 16 points, 5/12 V DC 1.7 mA (5 V DC)/4.8 mA (12 V DC), response time: 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 18-point terminal block type

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points16 points
Rated input voltage5 V DC (ripple ratio: within 5 %) (allowable voltage range: 4.25...6 V DC) 12 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...14.4 V DC)
Rated input current1.7 mA TYP. (5 V DC) 4.8 mA TYP. (12 V DC)
ON voltage/ON current3.5 V or more/1 mA or more
OFF voltage/OFF current1 V or less/0.1 mA or less
Input resistance2.3 kΩ
Input response time: OFF to ON0.2 ms, 0.3 ms, 0.4 ms, 0.5 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF0.41 ms, 0.5 ms, 0.6 ms, 0.7 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement16 points/common
Interrupt functionAvailable (set by module parameters)

Common specifications

Dielectric withstand voltage510 V AC rms for 1 minute
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Input 16 points)
Internal current consumption (5 V DC)120 mA
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth131 mm
Weight0.16 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RX70C4: frequently asked questions

When can RX70C4 be shipped?

RX70C4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RX70C4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RX70C4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RX70C4, subject to availability and destination.
