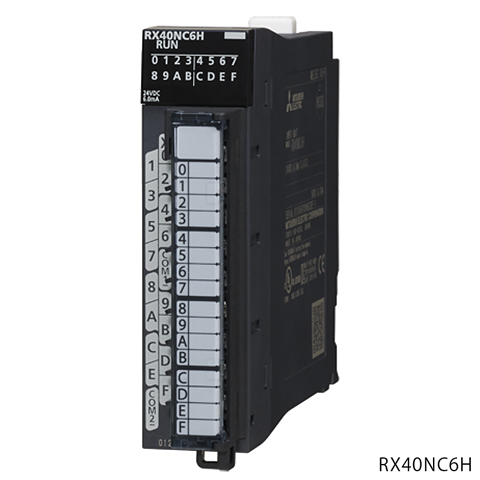

Mitsubishi Electric RX40NC6H
Mitsubishi MELSEC iQ-R Series Input
- MPN
- RX40NC6H
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric RX40NC6H?
The Mitsubishi Electric RX40NC6H is a input in the MELSEC iQ-R Series. DC input: 16 points, 24 V DC 6 mA, response time: 20/50 μs, 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 8 points/common, negative common type, 18-point terminal block. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Input |
| Type | DC input (negative common) |
| Subtype | High-speed input |
| Outline | DC input: 16 points, 24 V DC 6 mA, response time: 20/50 μs, 0.1/0.2/0.4/0.6/1/5/10/20/70 ms, 8 points/common, negative common type, 18-point terminal block |
Input specifications
| Input type | DC input (negative common type) |
| Number of input points | 16 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input current | 6.0 mA TYP. (24 V DC) |
| ON voltage/ON current | 15 V or more/4 mA or more |
| OFF voltage/OFF current | 8 V or less/1.7 mA or less |
| Input resistance | 3.9 kΩ |
| Input response time: OFF to ON | 5 µs, 20 µs, 50 µs, 0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input response time: ON to OFF | 10 µs, 25 µs, 50 µs, 0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input common terminal arrangement | 8 points/common |
| Interrupt function | Available (set by module parameters) |
Common specifications
| Dielectric withstand voltage | 510 V AC rms for 1 minute |
| Insulation resistance | 10 MΩ or higher by insulation resistance tester |
| Protection degree | IP2X |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 16 points (I/O assignment: Input 16 points) |
| Internal current consumption (5 V DC) | 100 mA |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 131 mm |
| Weight | 0.16 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
No matching specifications
